# Splitting and grouping: tables

In this section, we'll discover the various options in Inforiver to split and group measures in Table mode.

### 1. Splitting measures

When you have multiple measures and categories in your table, you can display each measure in a separate panel. Click on the **Split** button in the toolbar.

<figure><img src="https://3132984990-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FbOoZhPvC57Z0CNgep4Ib%2Fuploads%2FDoPGeOaih3KQeBzC5O99%2Fimage.png?alt=media&#x26;token=c651485e-3c20-4101-9a88-3a82a11d82dd" alt=""><figcaption><p>Split option for tables</p></figcaption></figure>

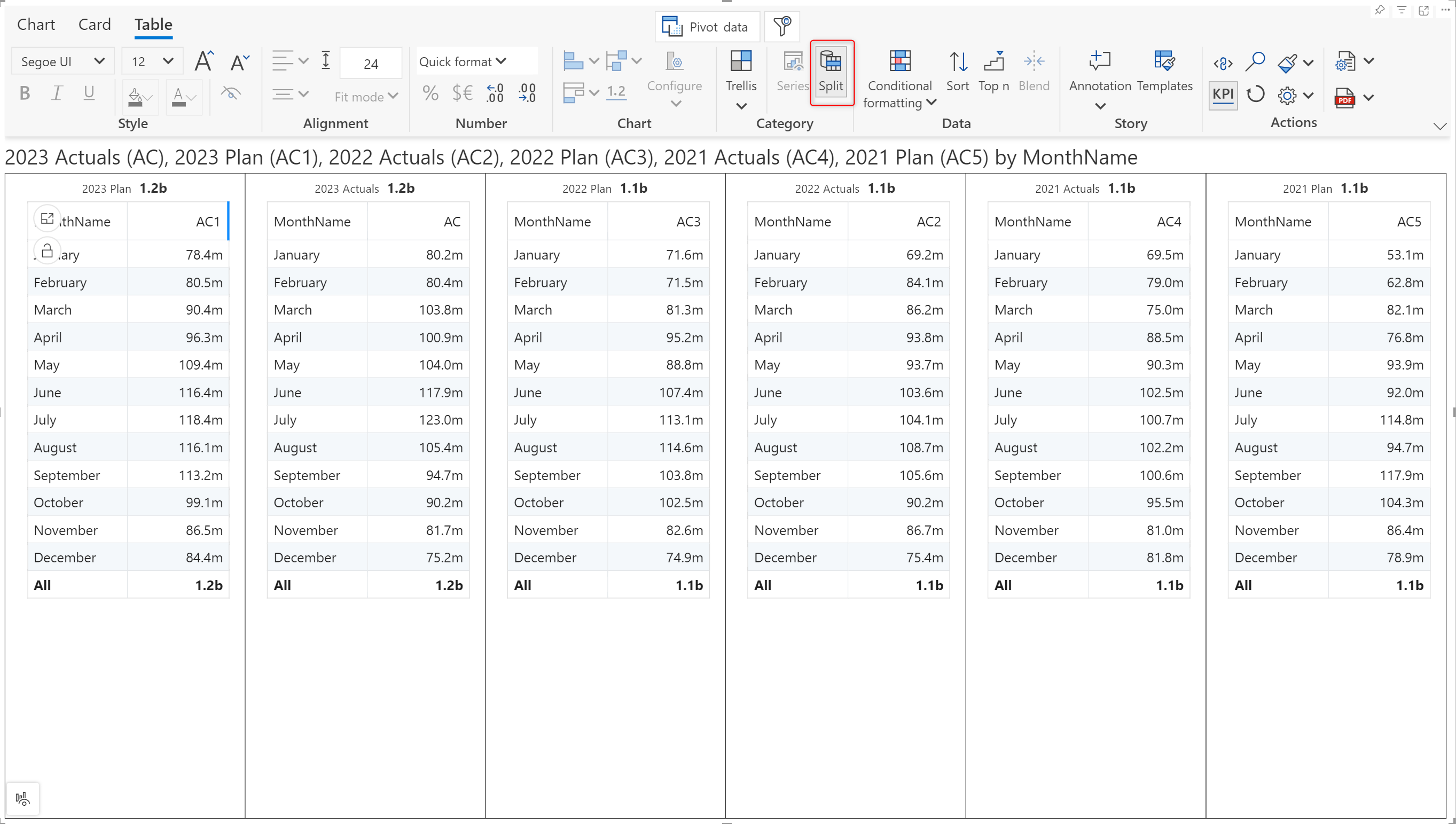

Notice each measure is displayed as a separate table when splitting is enabled.

<figure><img src="https://3132984990-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FbOoZhPvC57Z0CNgep4Ib%2Fuploads%2FaGrZ8dm9Xzz3z5AQyz80%2FSplittedTable.png?alt=media&#x26;token=1a6d93c7-4a53-40d4-8516-41f9f7169dd8" alt=""><figcaption><p>Split option for tables</p></figcaption></figure>

### 2. Measures category

When the split option is enabled a **measures category** is created: the measures can be rendered as rows or columns.

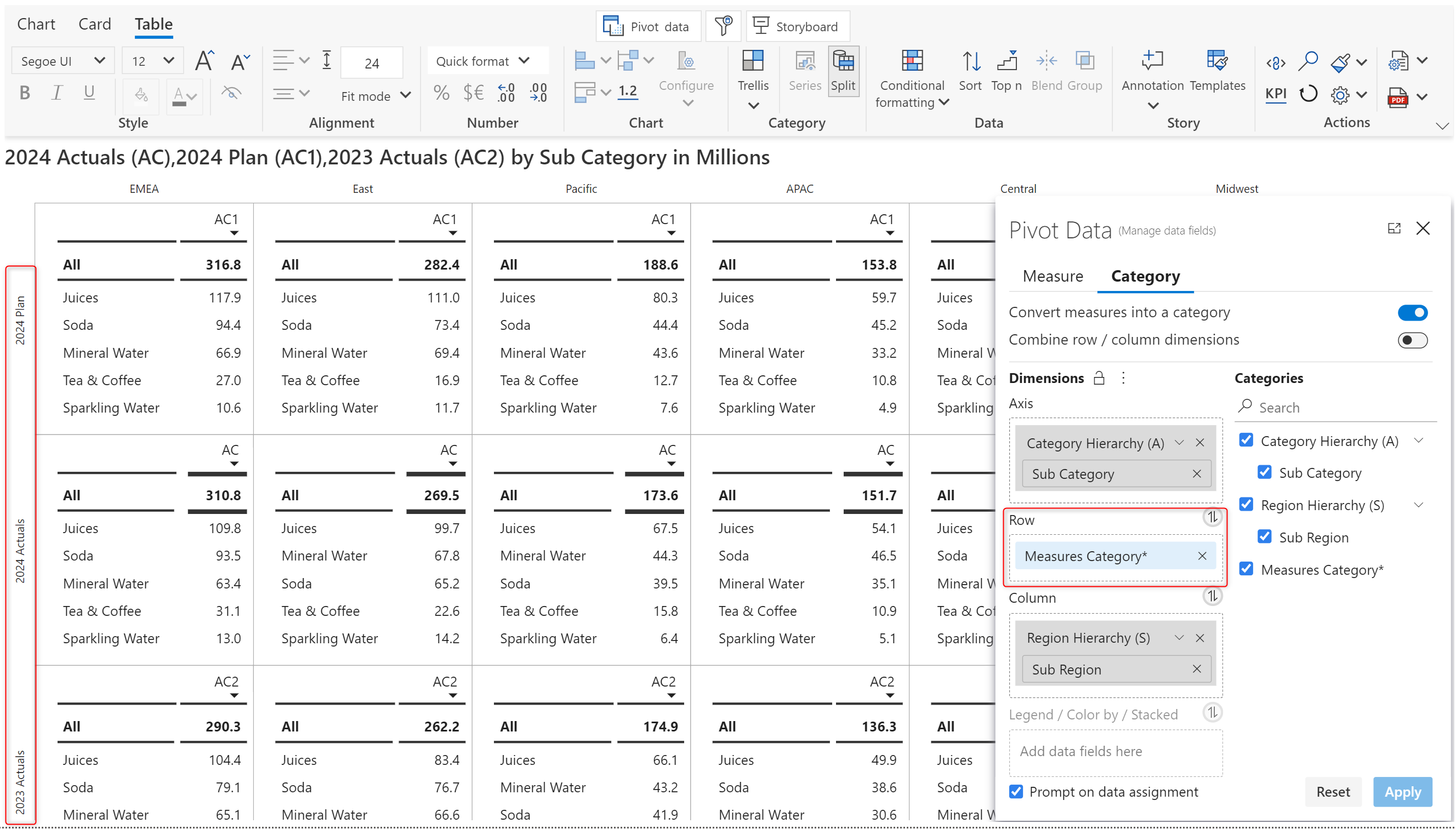

We've added a Sub Region as a small multiple parameter to demonstrate the measures category feature. Notice how the measures are rendered as separate rows when the split option is enabled.

<figure><img src="https://3132984990-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FbOoZhPvC57Z0CNgep4Ib%2Fuploads%2F8YRkWnlXk2uBxI4YrsB7%2Fimage.png?alt=media&#x26;token=c4e1ab55-072a-47ea-8a5e-b4fbcf52d173" alt=""><figcaption><p>Measures as rows</p></figcaption></figure>

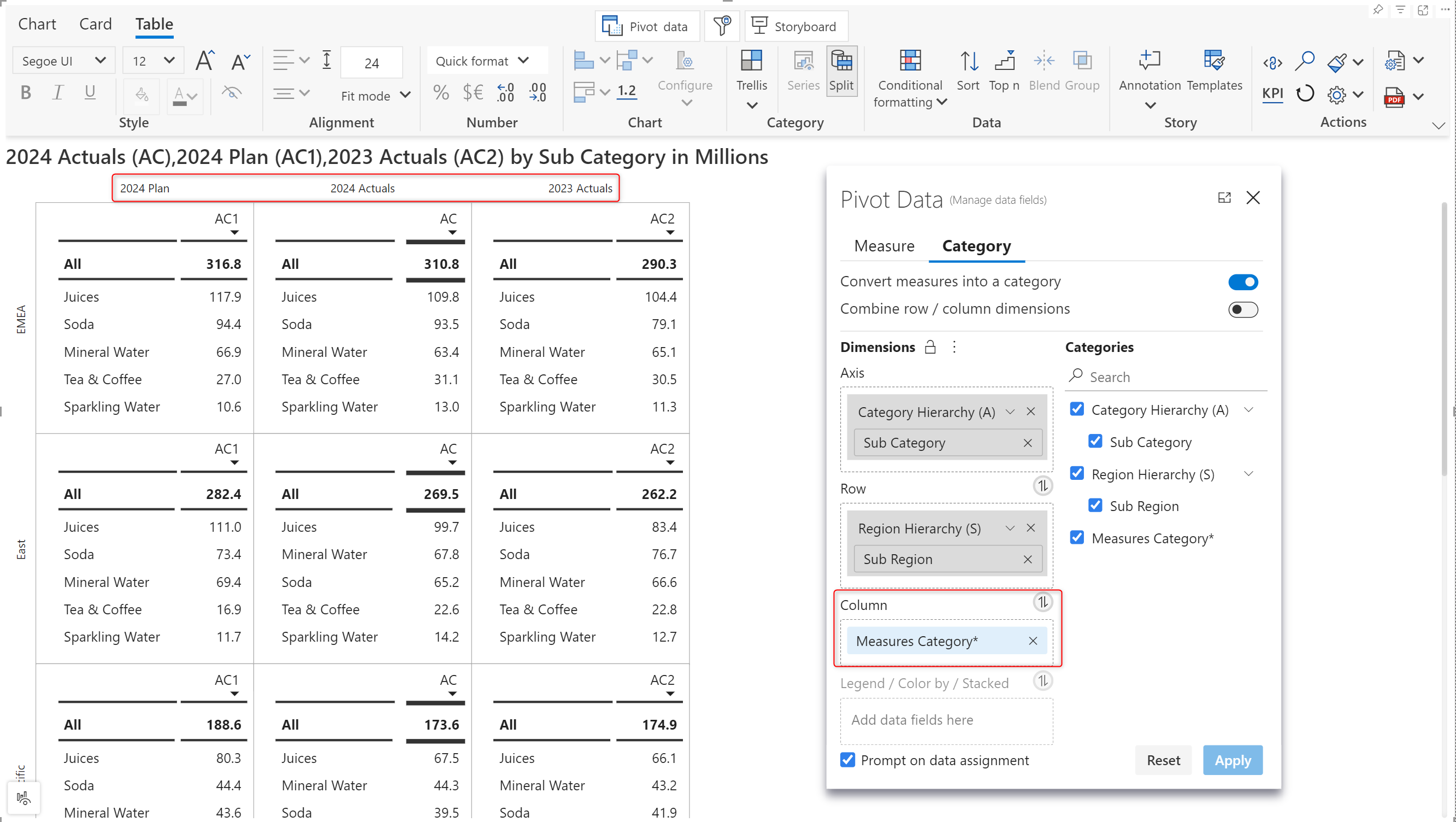

The image below shows the measures rendered as columns.

<figure><img src="https://3132984990-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FbOoZhPvC57Z0CNgep4Ib%2Fuploads%2FDvw8MOVoGqCOFNeRRtFf%2Fimage.png?alt=media&#x26;token=ecf9dd96-97c8-465f-8b1a-e9acf1045877" alt=""><figcaption><p>Measures in columns</p></figcaption></figure>

### 3. Grouping measures

&#x20;With the Group feature, you can create visual-level column hierarchies in a single click.&#x20;

All you need to do is select the measures to be grouped, click the **Group** button, and enter the name of the custom group in the textbox.

<figure><img src="https://3132984990-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FbOoZhPvC57Z0CNgep4Ib%2Fuploads%2FuaApaUtZc16MZESu9r2p%2Fimage.png?alt=media&#x26;token=99ae91d2-594e-436f-b6f3-27abf7e6b4a2" alt=""><figcaption><p>Creating a column group</p></figcaption></figure>

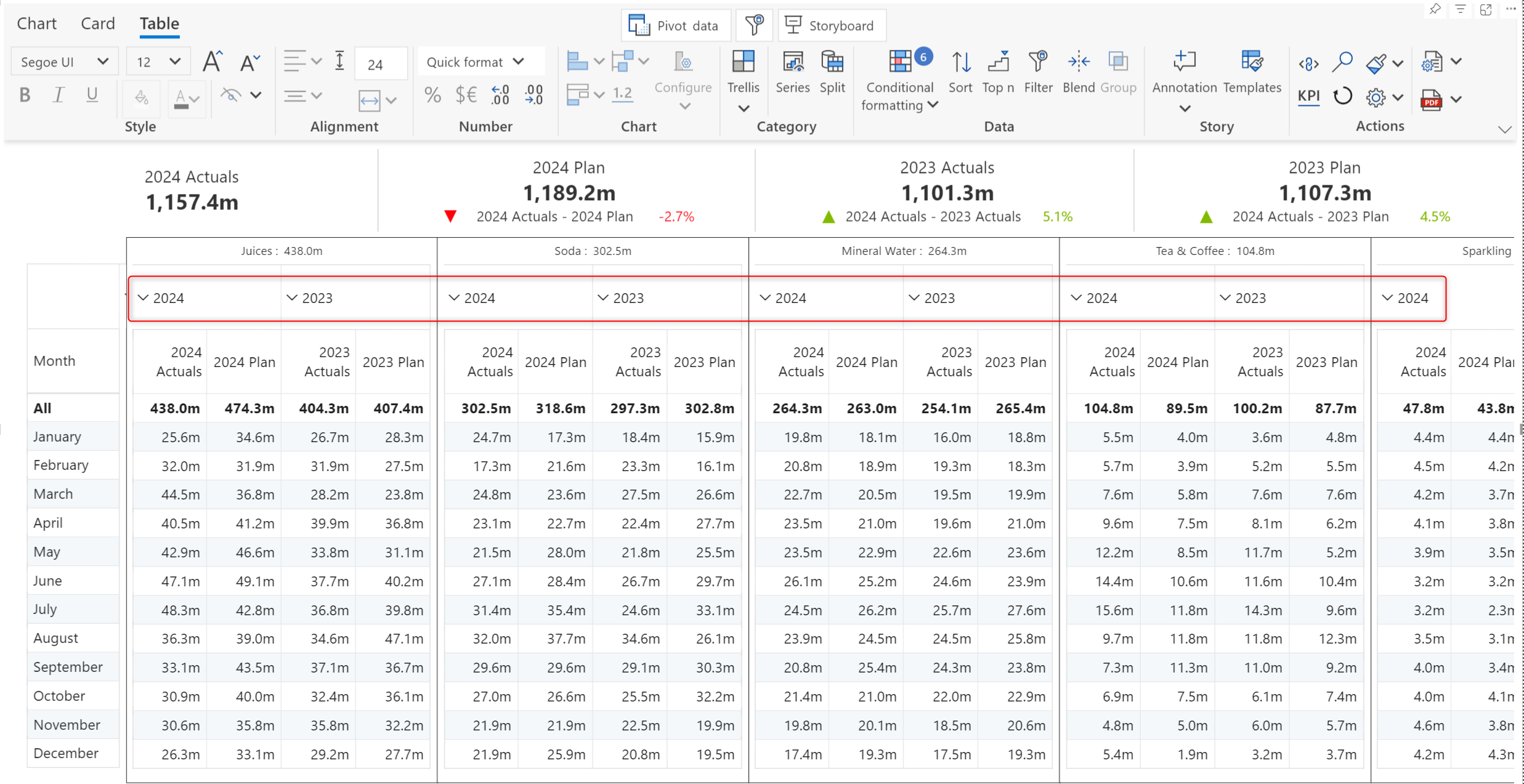

We've grouped the Actuals and Plan into the 2024 and 2023 buckets.&#x20;

<figure><img src="https://3132984990-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FbOoZhPvC57Z0CNgep4Ib%2Fuploads%2Fbi98cJri1yeu7OtRTSDg%2Fimage.png?alt=media&#x26;token=25024fc5-c1ac-4b6d-908f-187bdf28ac8d" alt=""><figcaption><p>Column group created</p></figcaption></figure>

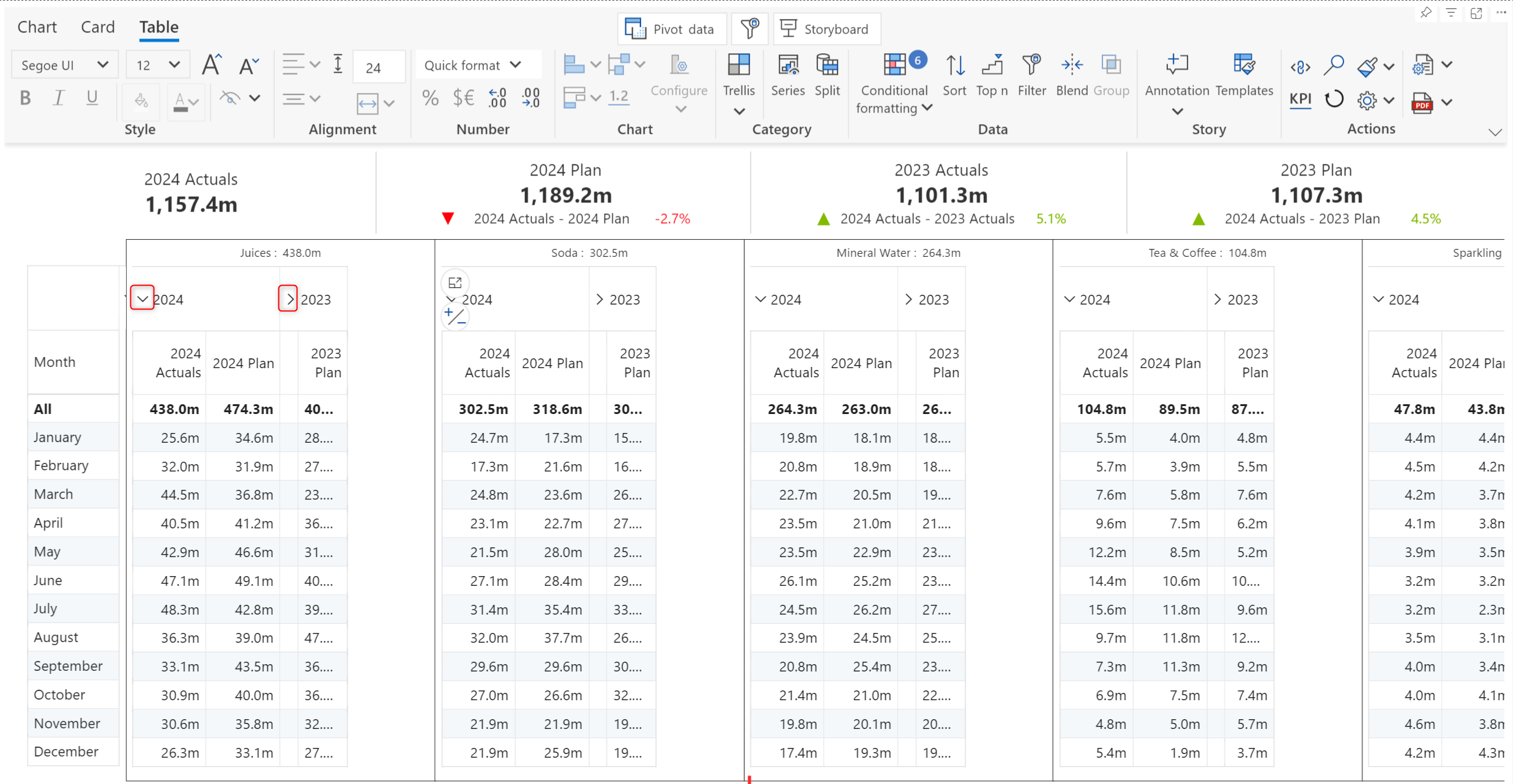

You can **expand and collapse** column groups with the<img src="https://3132984990-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FbOoZhPvC57Z0CNgep4Ib%2Fuploads%2F4F7tQCdDTgNIow1BkcsB%2Fimage.png?alt=media&#x26;token=769b0763-f008-4821-ba1e-b8691898c461" alt="" data-size="line"><img src="https://3132984990-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FbOoZhPvC57Z0CNgep4Ib%2Fuploads%2FQ1nw5Ie4mSoMiXL7eDZ3%2Fimage.png?alt=media&#x26;token=b0c50c00-807e-4f0b-a1c7-cf9227aeb79c" alt="" data-size="line">icons just as you would with regular hierarchies from the dataset.

<figure><img src="https://3132984990-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FbOoZhPvC57Z0CNgep4Ib%2Fuploads%2FpUzawq0oXqUKdgu81CdH%2Fimage.png?alt=media&#x26;token=b397eb02-235a-432e-b403-fea99355402e" alt=""><figcaption><p>Expand and collapse</p></figcaption></figure>

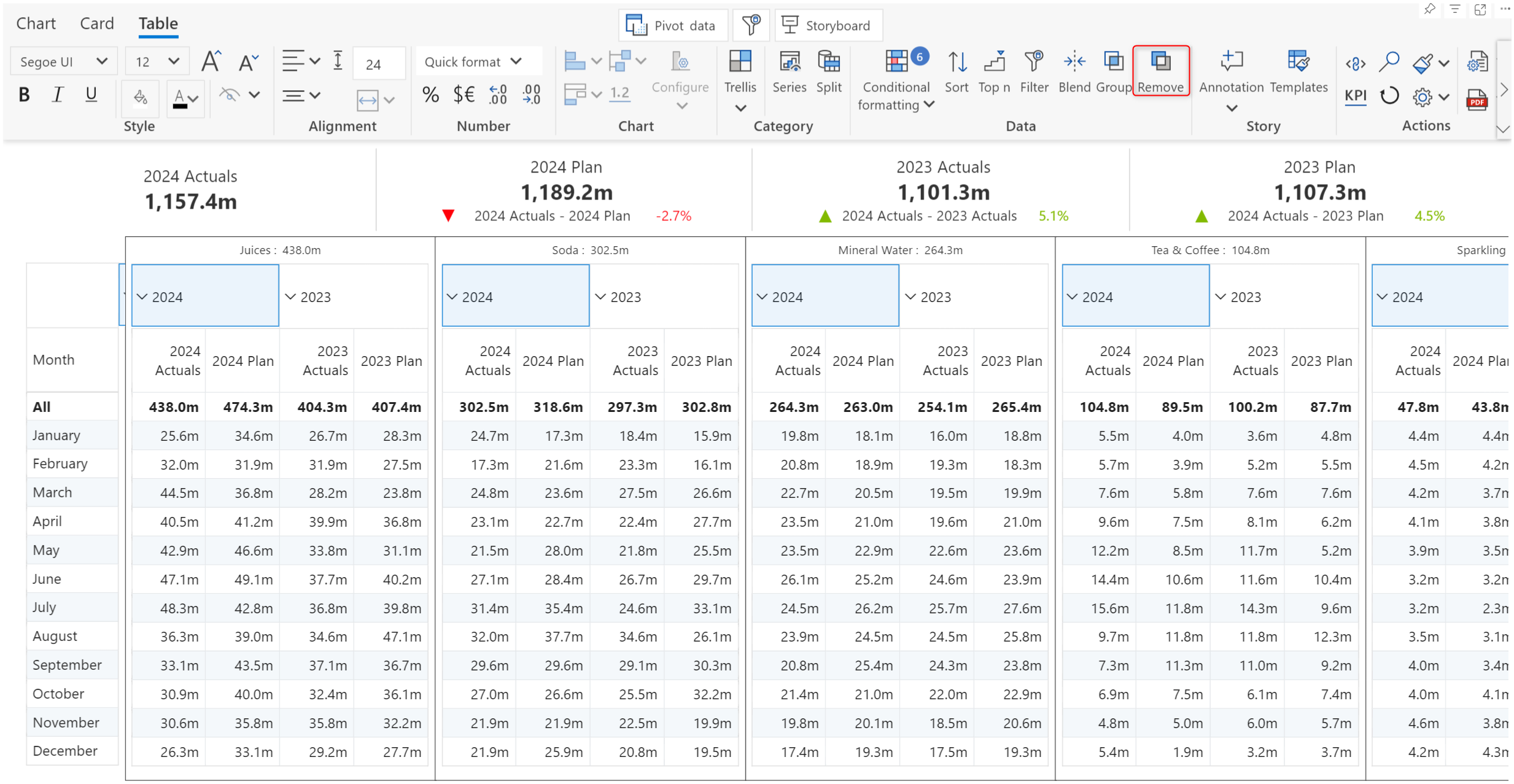

To delete a group, select it and click **Remove**.

<figure><img src="https://3132984990-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FbOoZhPvC57Z0CNgep4Ib%2Fuploads%2FhjKYRydteJIOXaZYFhb1%2Fimage.png?alt=media&#x26;token=c8aa0b73-4f10-43a5-9317-b9edcc070e1f" alt=""><figcaption><p>Removing groups</p></figcaption></figure>
