General settings
Learn how to customize Inforiver reports in Power BI by adjusting color schemes, gridlines, padding, and other visual properties.
The general display settings are used to customize the appearance of the report.

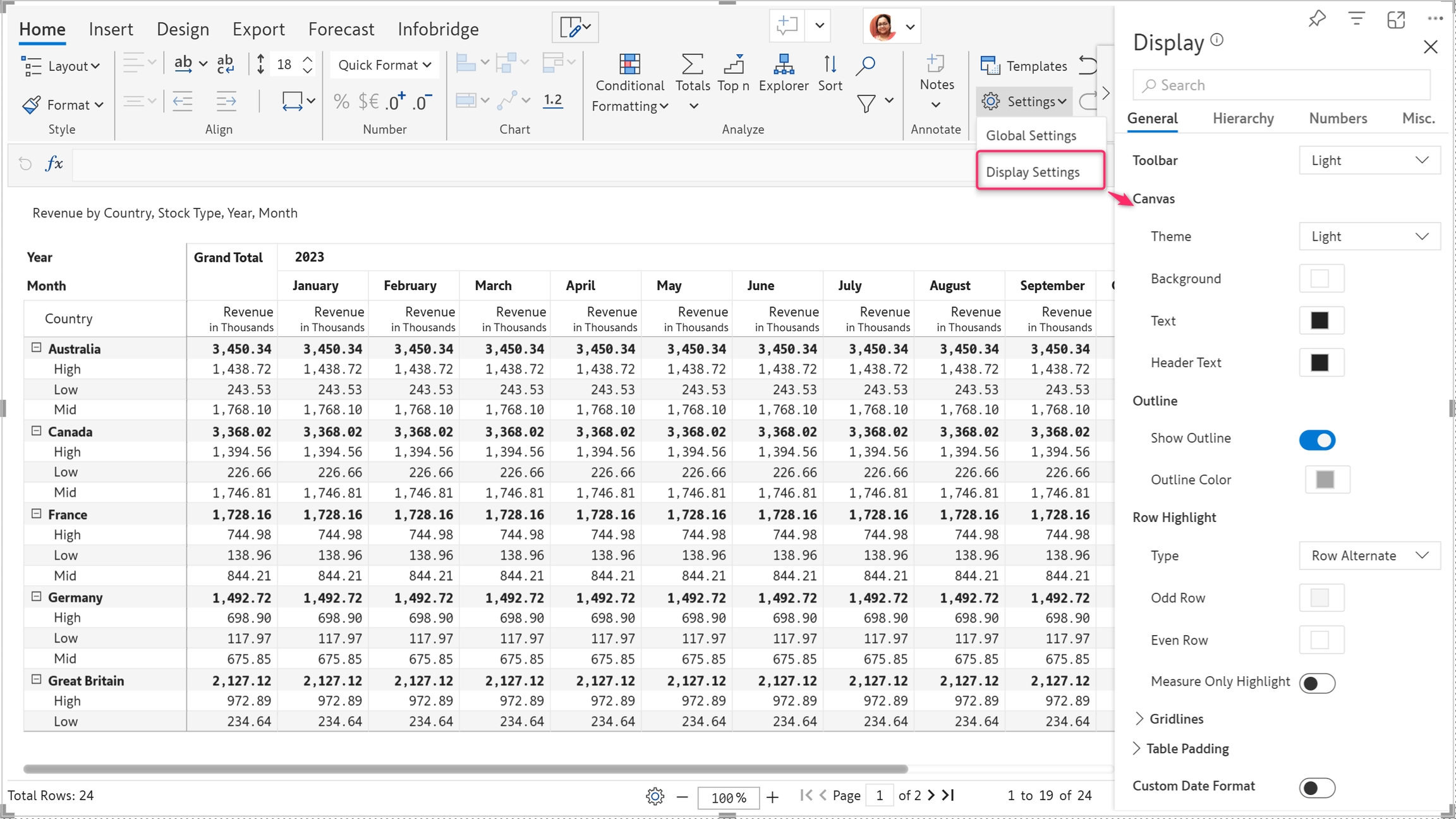

In the Inforiver toolbar, navigate to the Home ribbon. The Settings option is available in the Actions section. Click Settings > Display Settings to open up the Display side panel.
1. Canvas
The canvas section contains options to set the overall appearance of the report.
Theme
Background
Text
Header Text

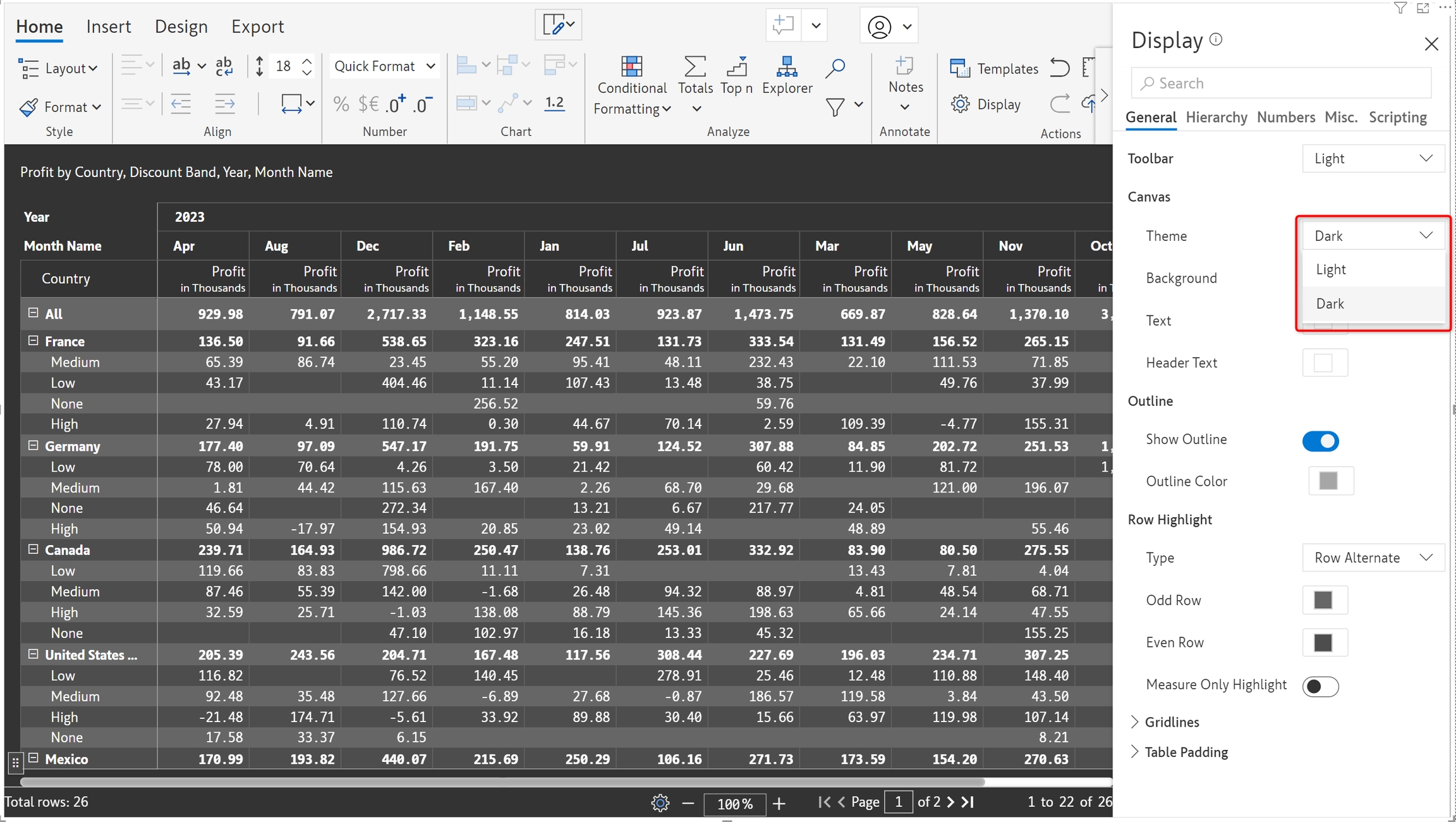

1.1. Theme

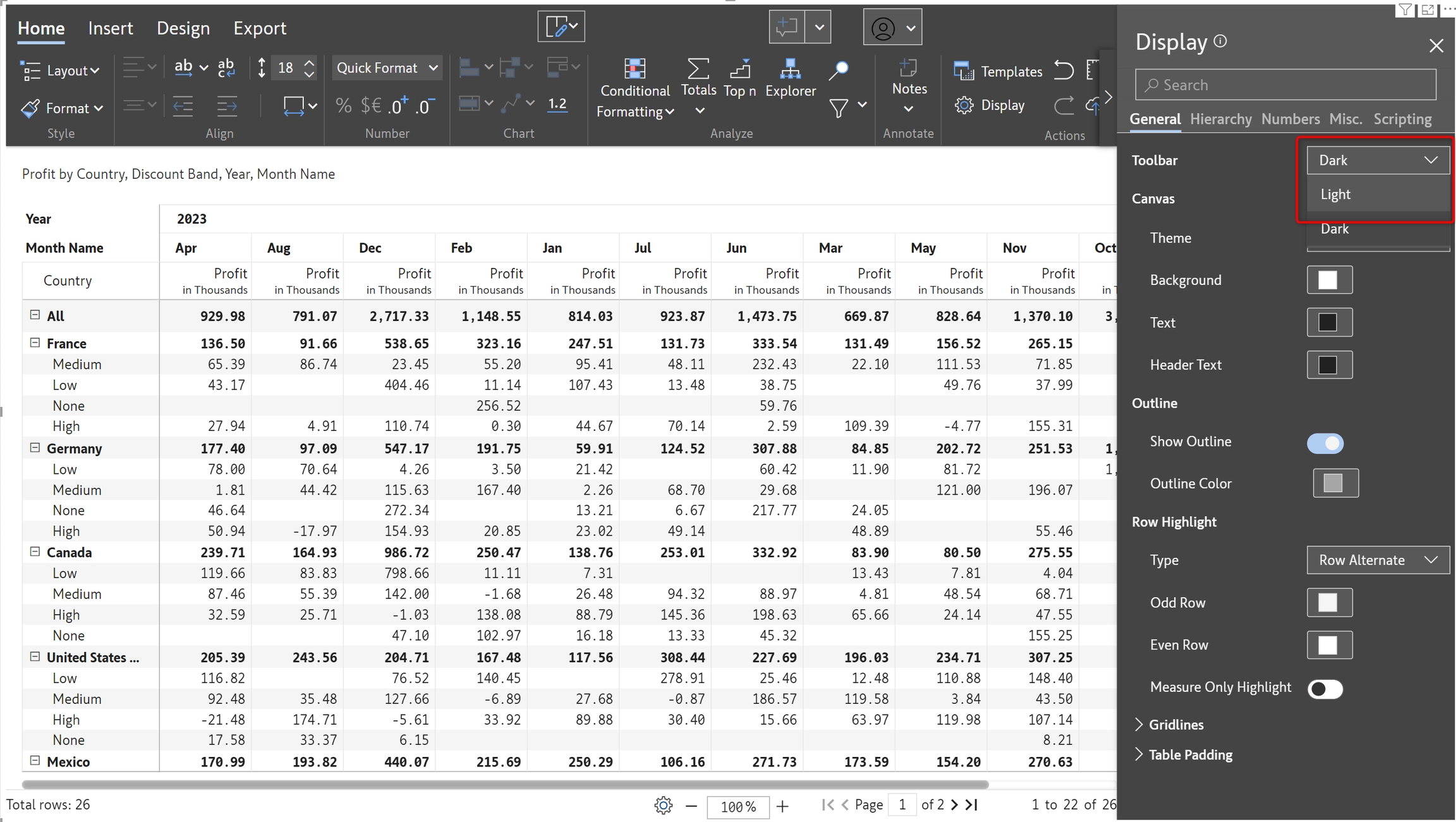

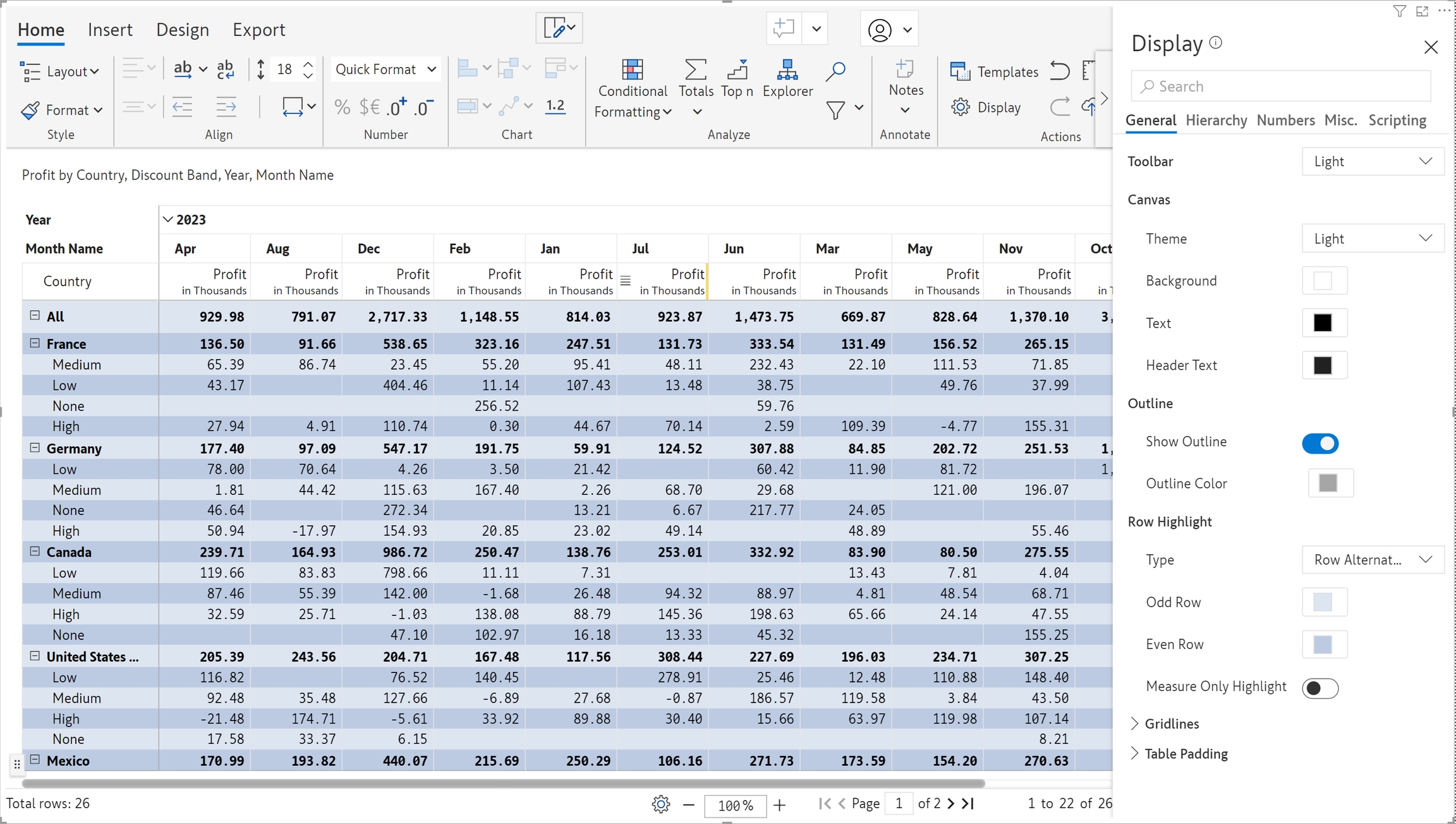

The theme option lets you change the theme of the Inforiver Table visual to Light or Dark. In the example, the Dark theme is chosen.
1.2. Background

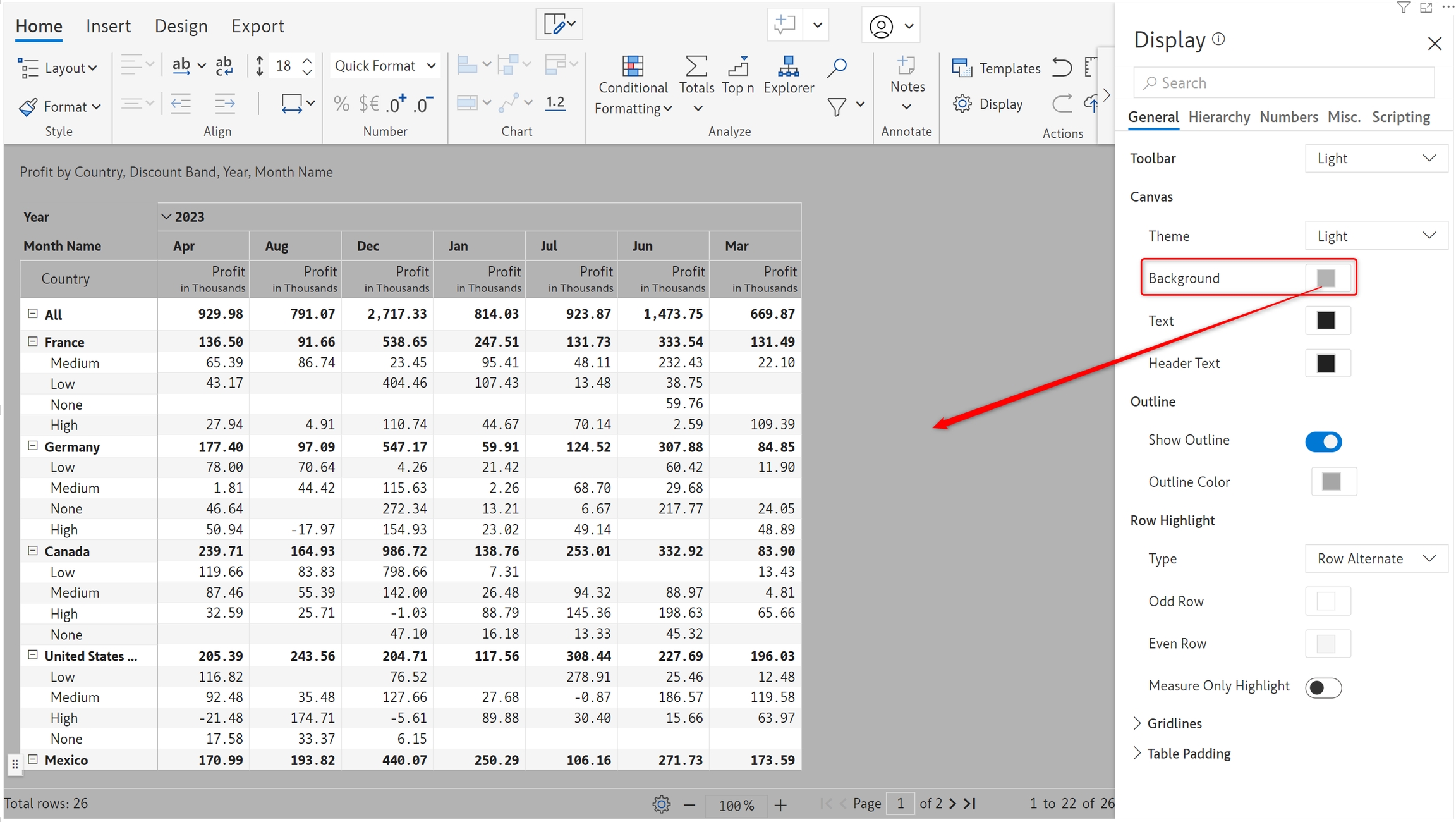

You can change the background color of the canvas using this option.

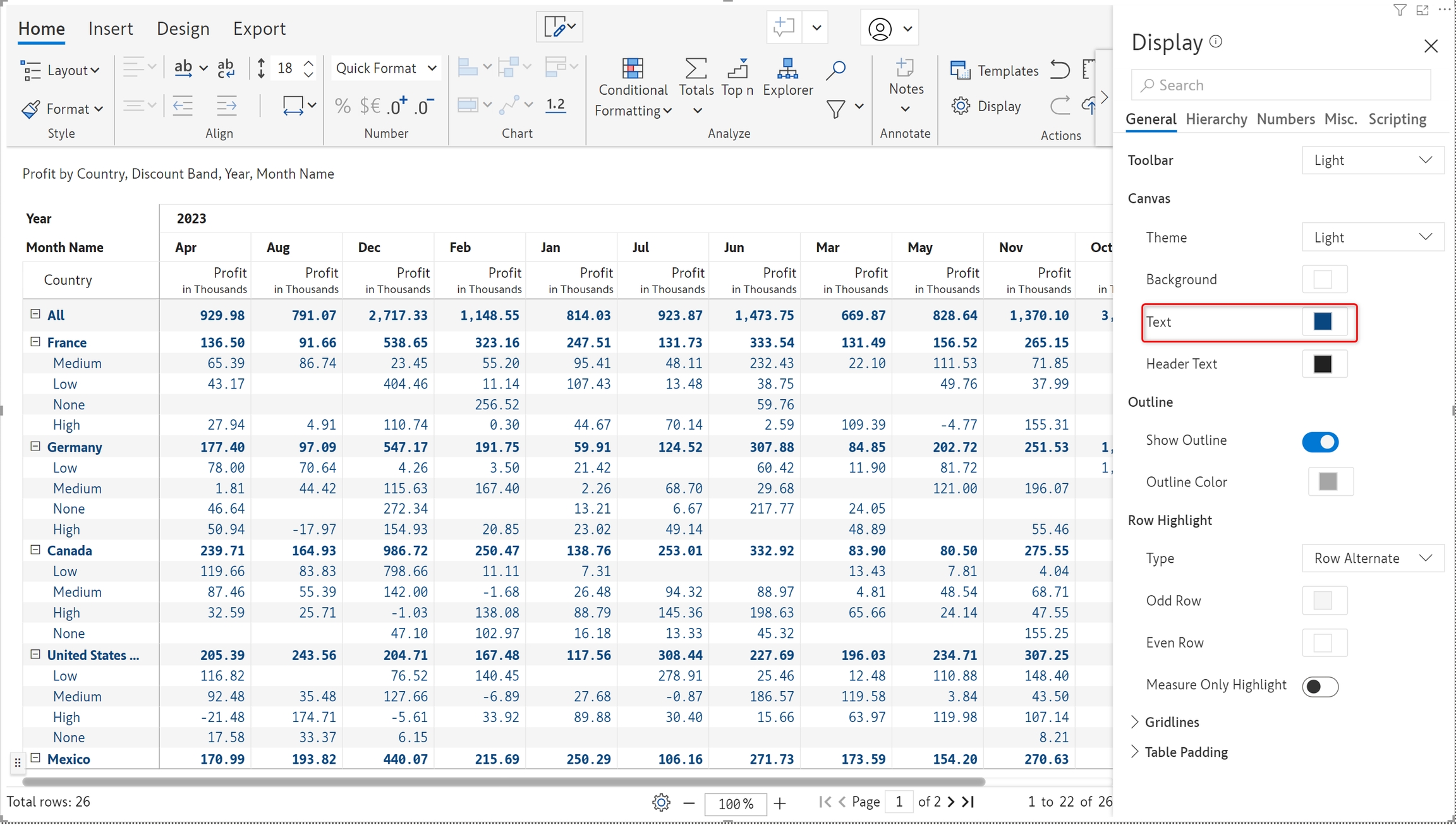

1.3.Text
You can change the color of the text/values in the visual using this option.

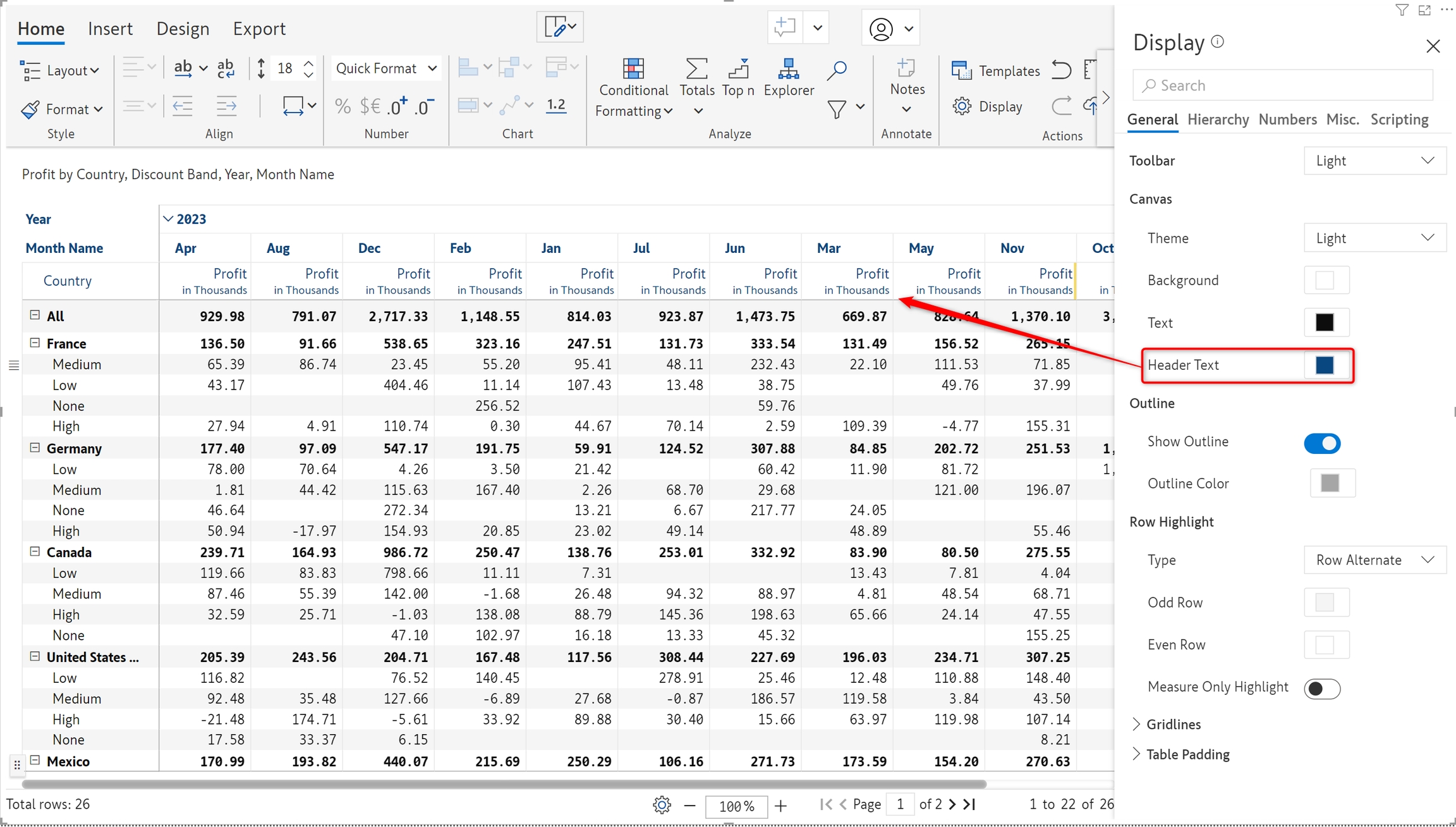

1.4. Header text
You can change the color of the header text in the visual using this option.
2. Outline

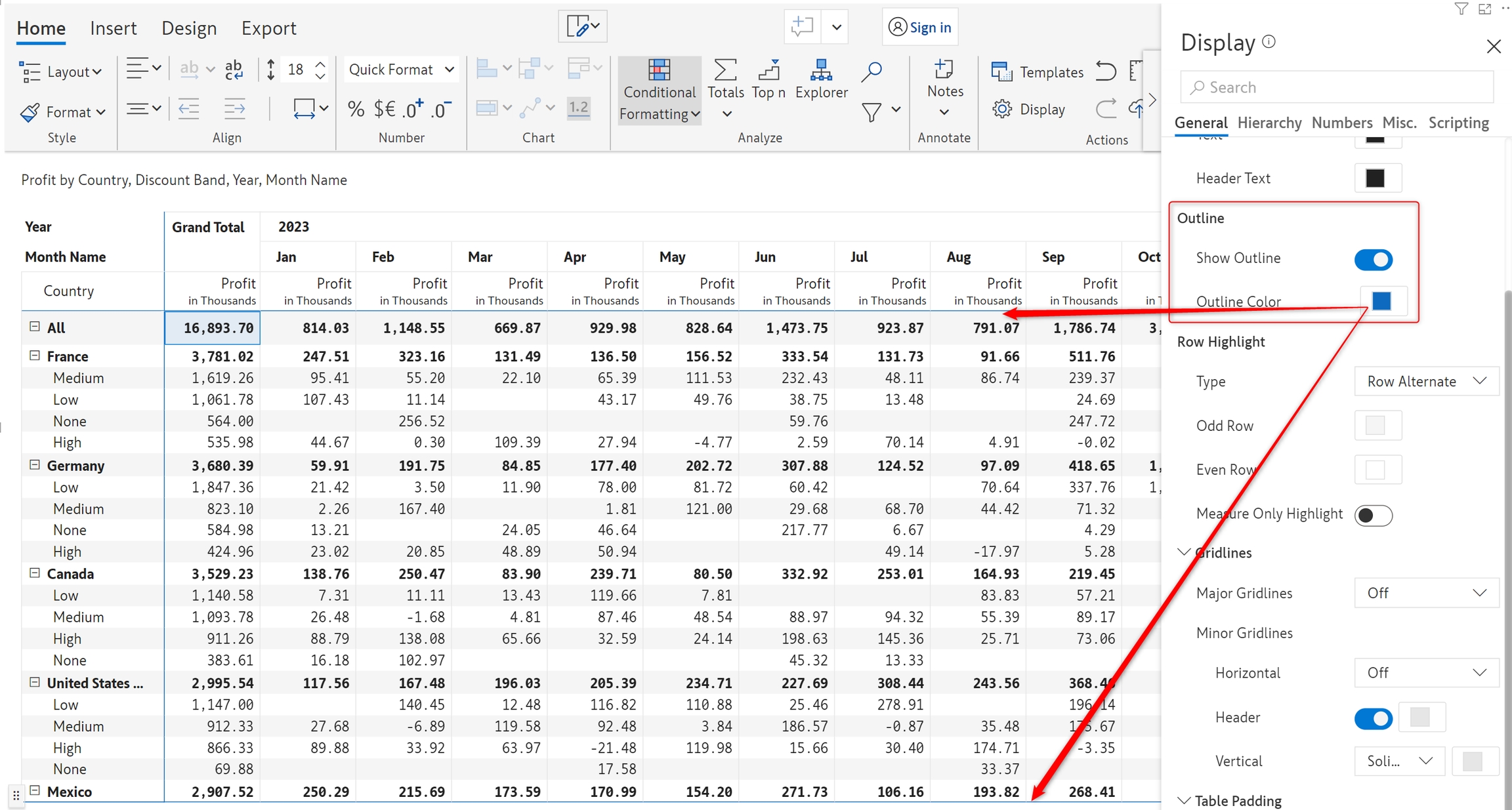

This option allows you to set the outline for the visual. A color picker is enabled when you turn on this toggle. The color picker allows you to select the color of the outline. We have set a blue outline for the grid below.
3. Row highlight
This option allows you to highlight the rows in the report. The various row highlight options are:
Row Hover
Row Alternate
Row Alternate Contrast
Row Alternate Flashy
Off
3.1. Row hover
Highlights the row upon hovering over it. If you enable this option, the following options are displayed:
Row text color - Set the text color of the row on hover.
Row background color - Set the background color of the row on hover.

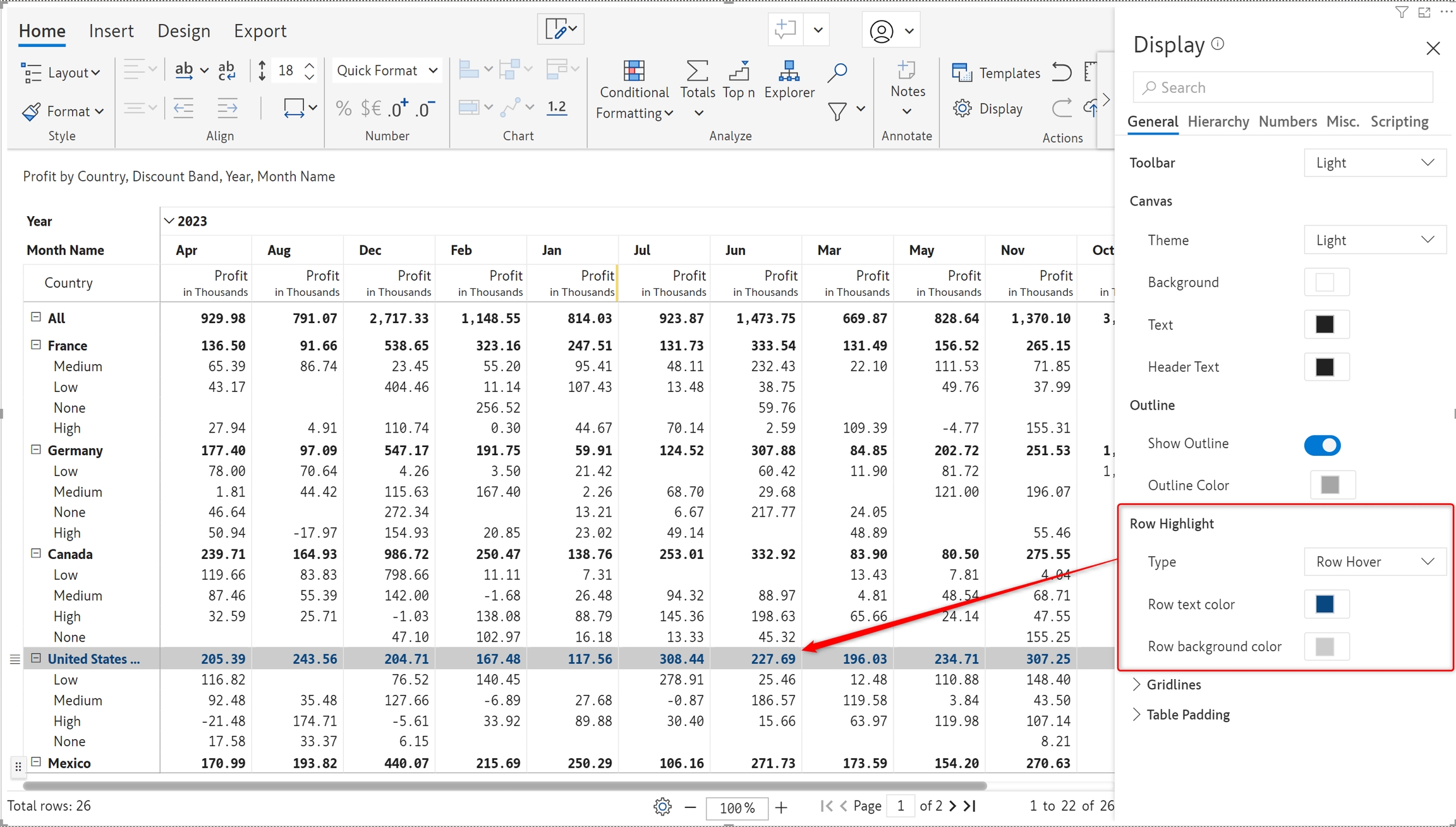

In the image below, the row text color is set to blue, and the row background color to grey on hover.
3.2. Row alternate
Highlights alternate rows. All of the row highlight options are customized with predefined colors. By default, all the tables are configured with the Row Alternate highlight option. If you enable this option, the following options are displayed:
Odd Row - This option allows you to set the color of the odd rows
Even Row - This option allows you to set the color of the even rows

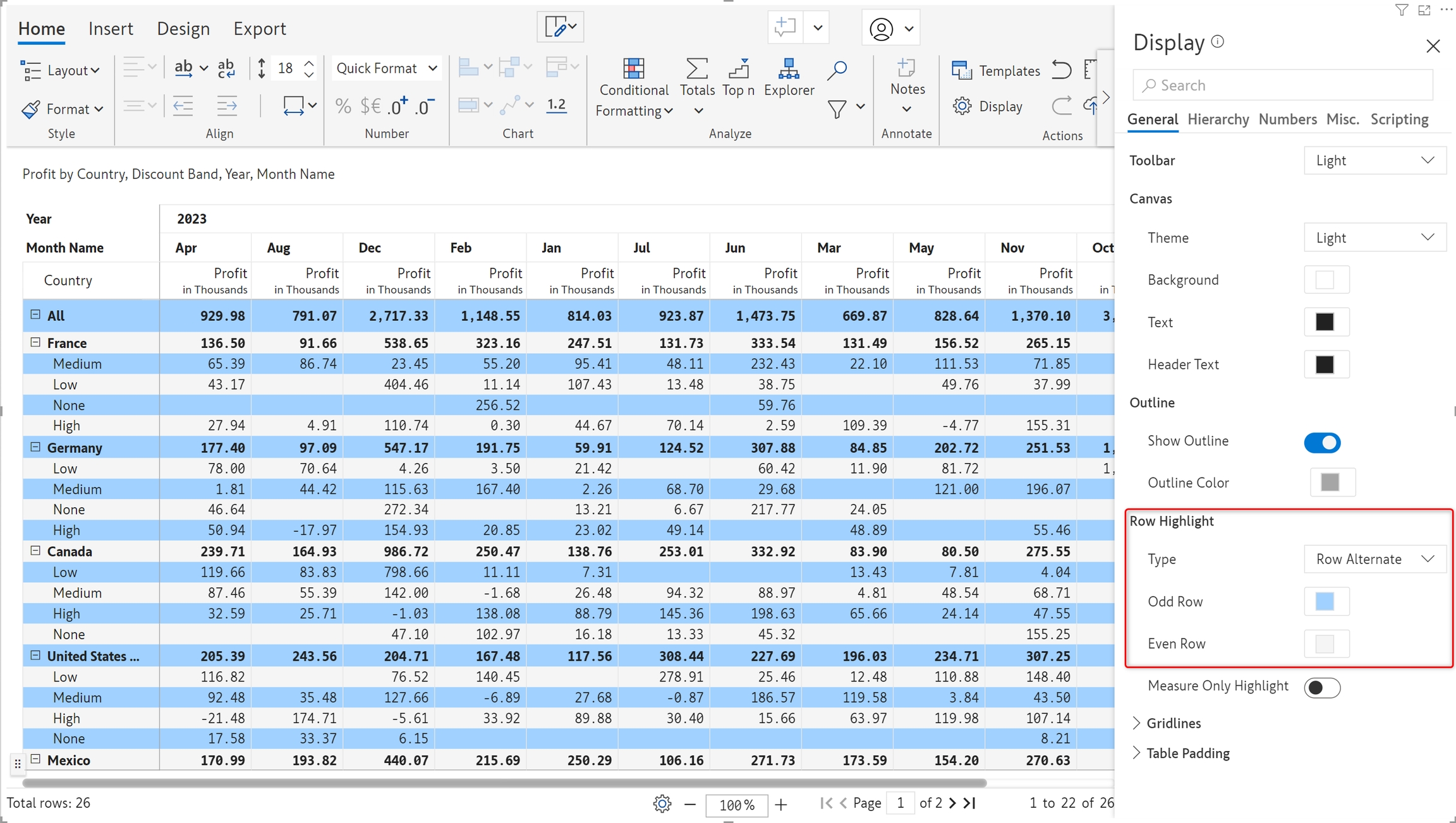

The row alternate highlight is shown in the image below.

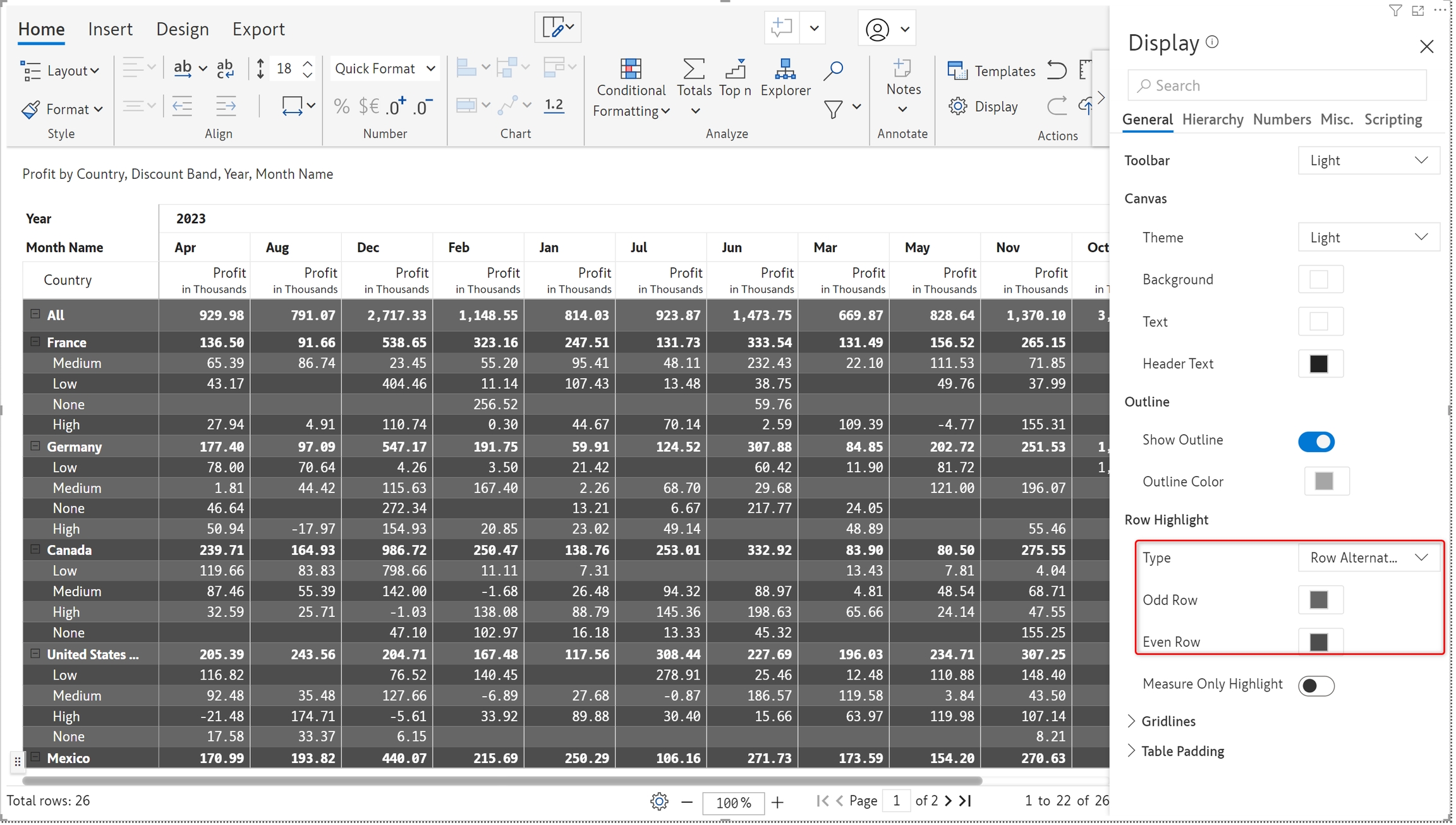

3.3. Row alternate contrast
Highlights the odd and even rows with contrasting color shades by default. If you enable this option, the Odd Row and Even Row options are displayed.
3.4. Row alternate flashy
Highlights the odd and even rows with flashy color shades. If you enable this option, the Odd Row and Even Row options are displayed.
You can remove the row highlight by selecting the Off option from the drop-down.

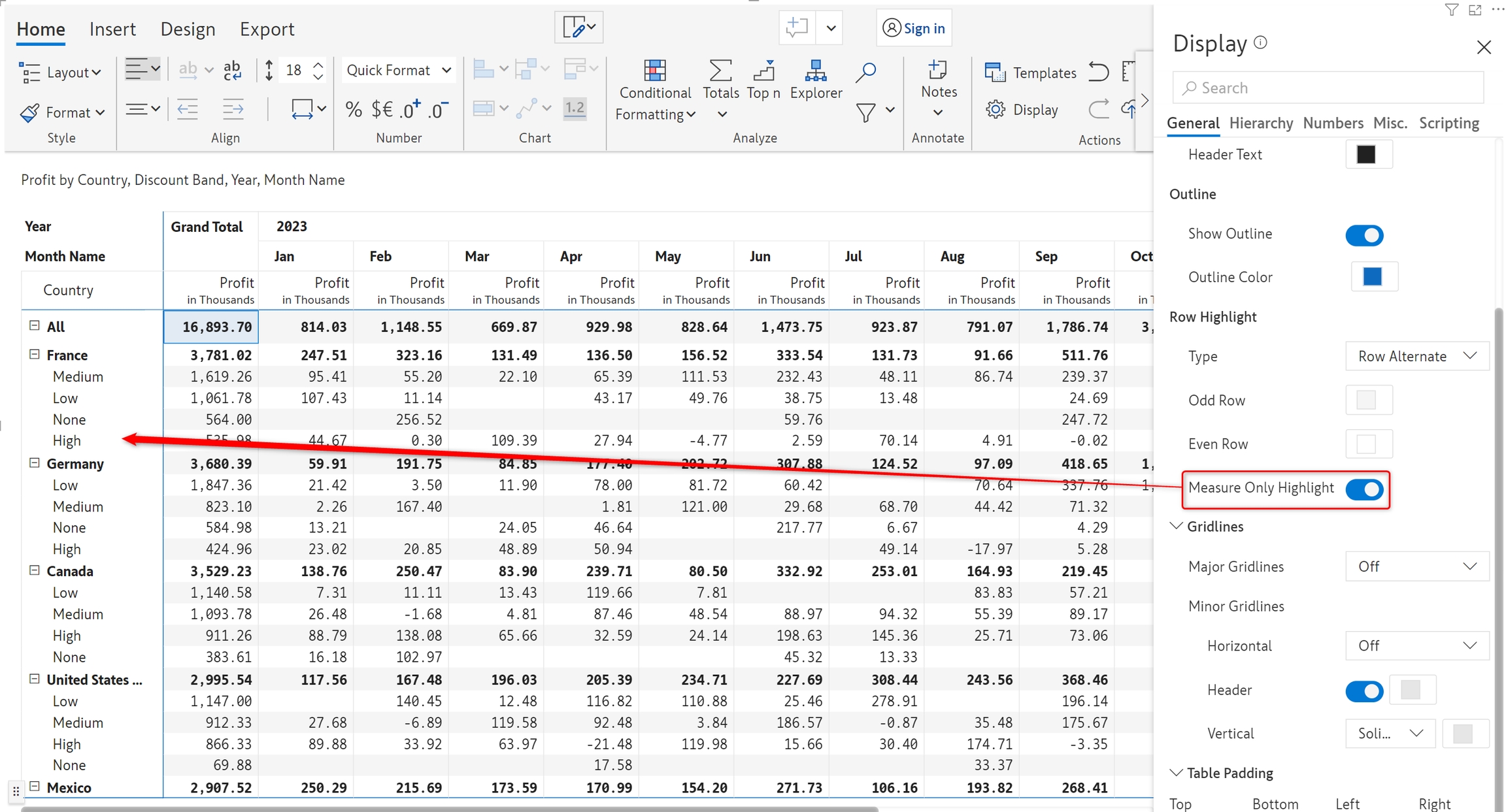

Enable the Measure Only Highlight option to remove the highlight from the categories and highlight only the measure values.
4. Gridlines
4.1. Major gridlines
Use this option to set major gridlines for the parent rows in the visual. You can select from the following values:
Single - This option will insert a single gridline to the parent rows
Double - This option will insert a double gridline to the parent rows
Off - This option will turn off the major gridlines
If the Single or Double option is selected for the major gridlines, then a color picker is enabled. Using the color picker, you can customize the color of the single/double major gridlines.

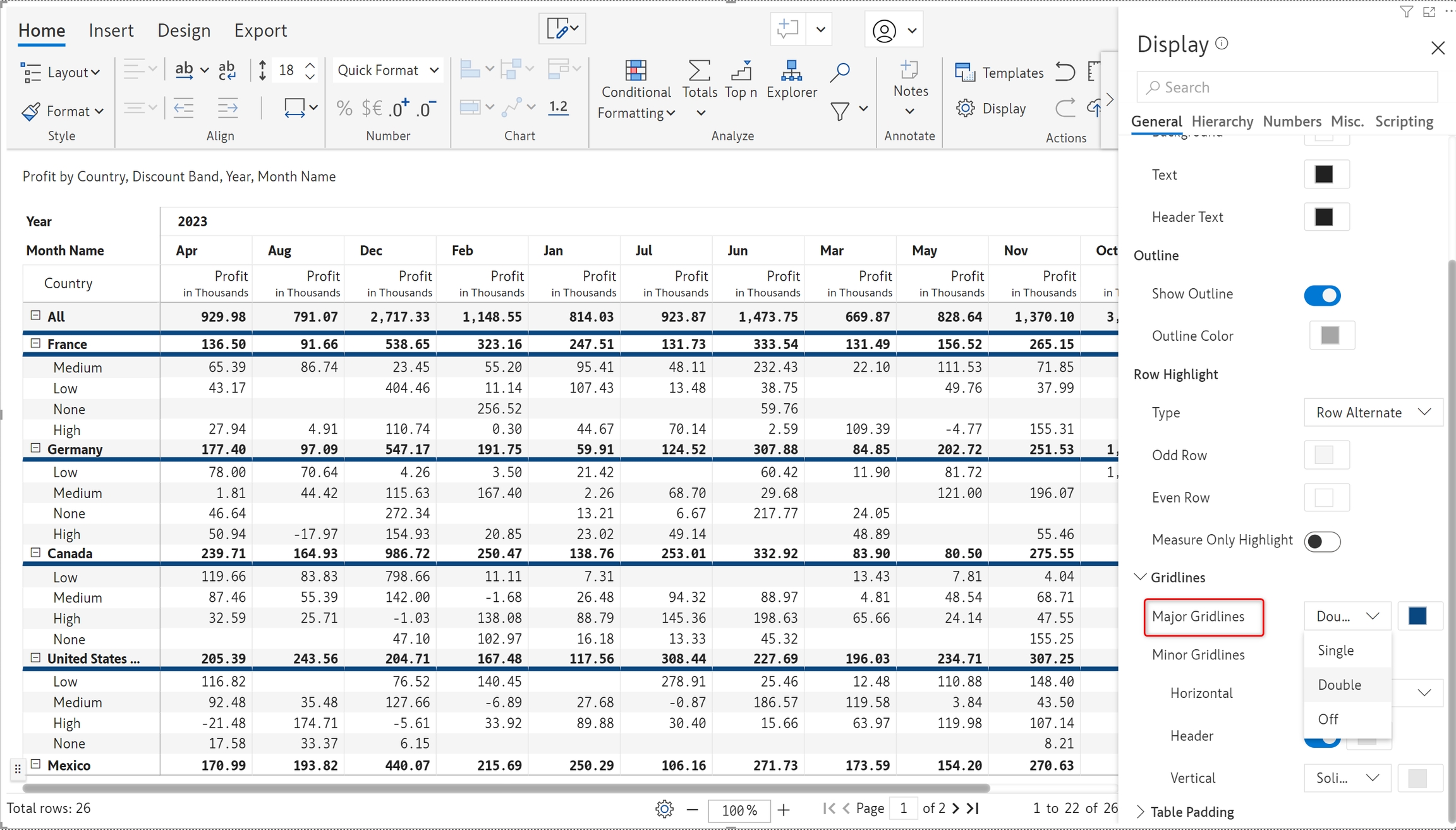

In the example below, double major gridlines are inserted, and their colors are set to blue.
If Off is selected, the major gridlines will not be displayed. This option is set to 'Off' by default.
4.2. Minor gridlines
You can add Horizontal, Header, and Vertical properties for minor gridlines.
Horizontal

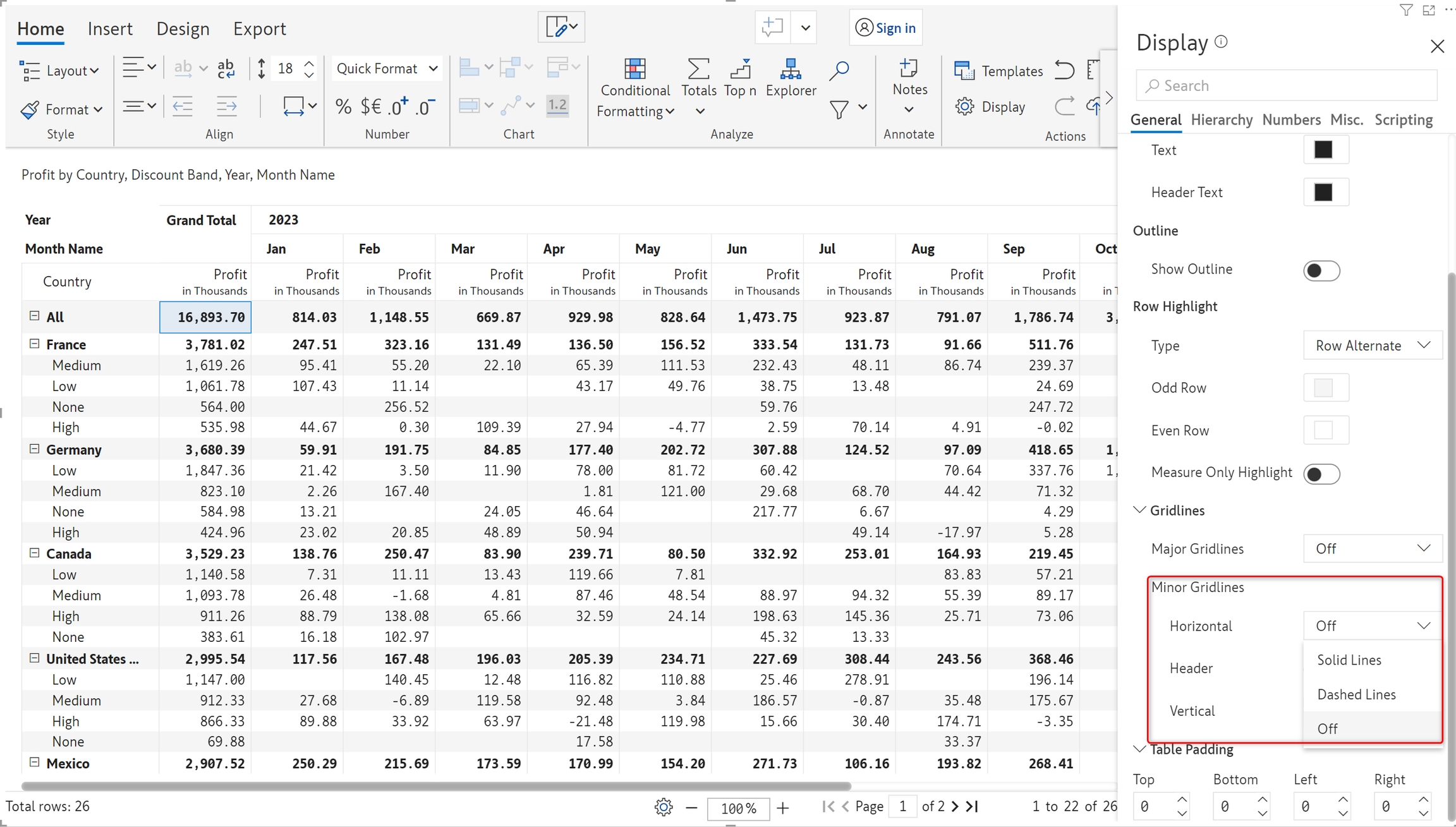

This option lets you set the horizontal gridlines for child rows. You can select from the following options:
Solid lines
Dashed lines
Off
If the Solid Lines or Dashed Lines option is selected for the horizontal gridlines, then a color picker is enabled. Using the color picker, you can customize the color of the single/double horizontal gridlines. You can also set the number of rows to skip between 2 consecutive lines.

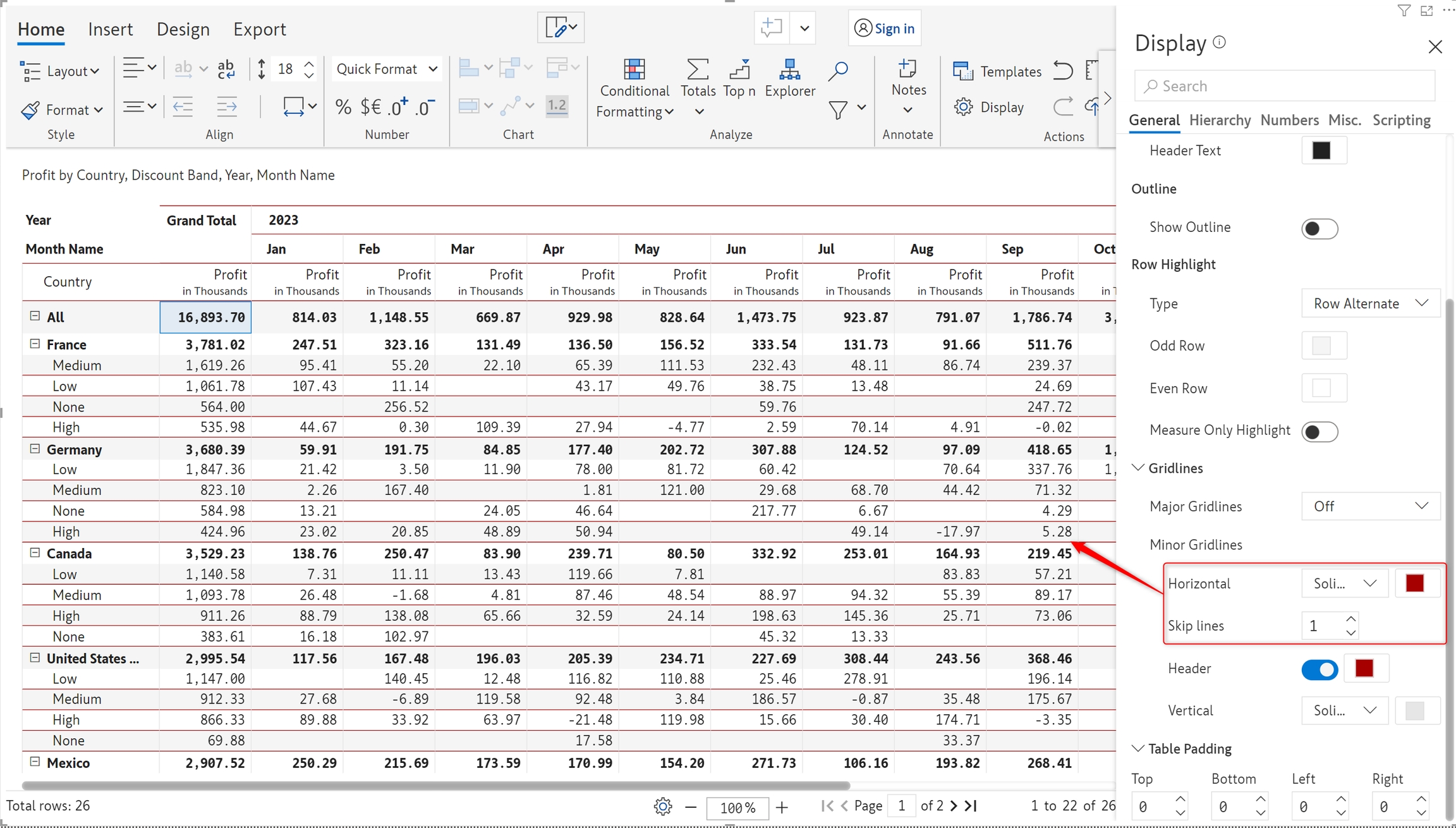

In the example, solid horizontal gridlines are inserted, and their colors are set to red. 1 row is skipped between lines.

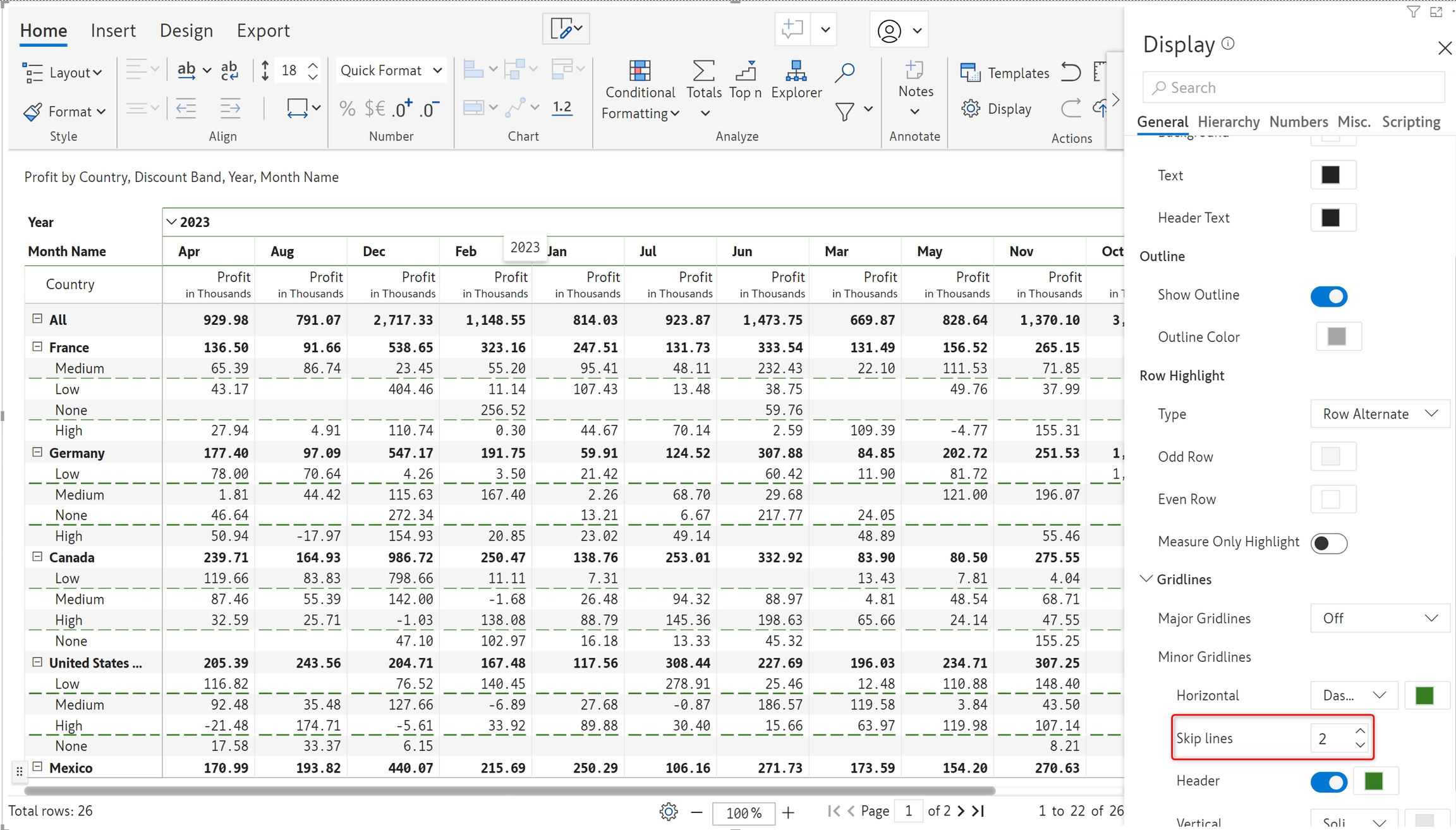

Skip lines
This option allows you to set the minor grid line gap between the rows. The minimum and maximum skip line values are 1 and 10, respectively.

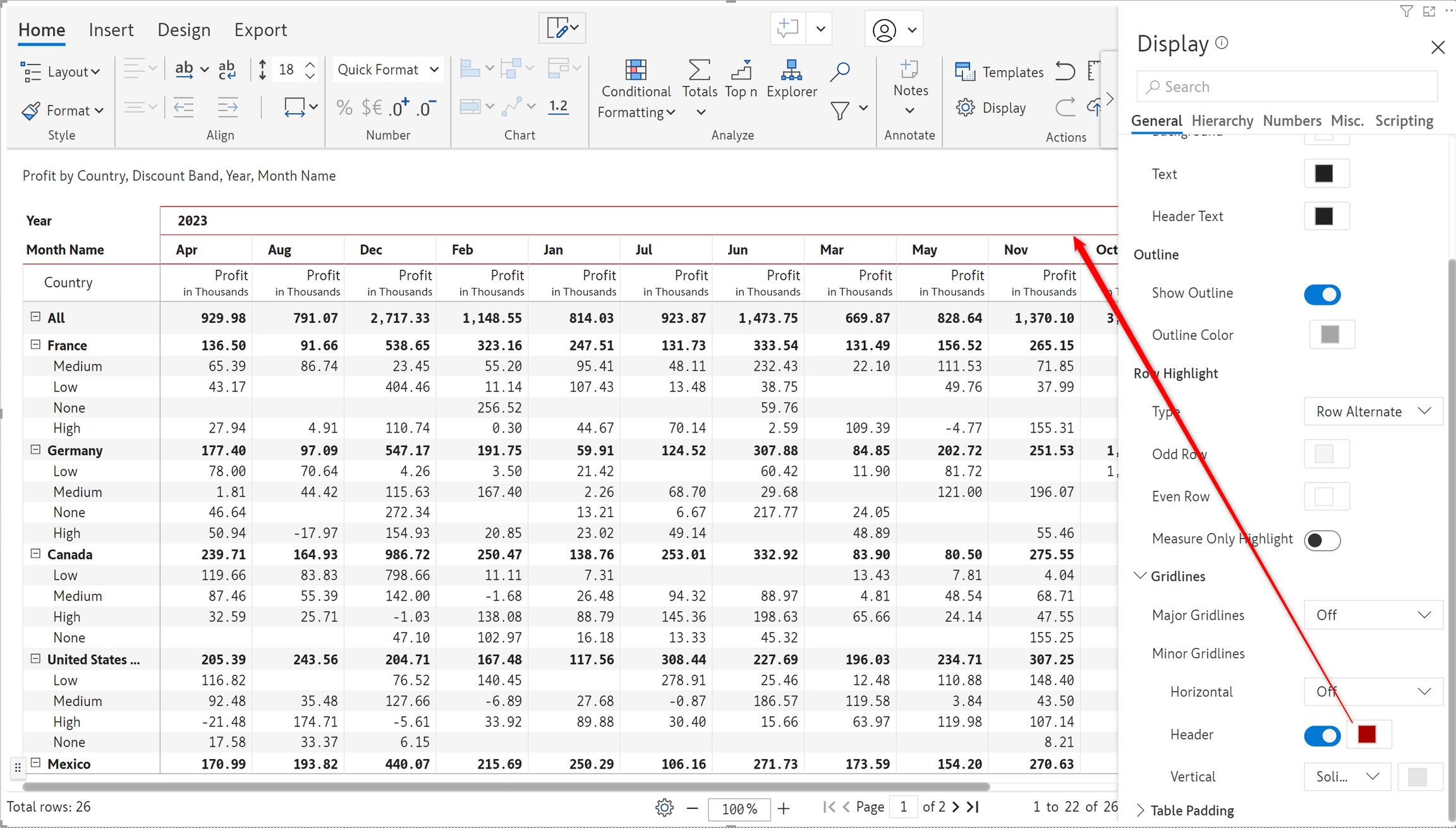

Header
This option lets you insert gridlines for the column headers. If this option is enabled, then a color picker option becomes available next to it. Using the color picker option, you can customize the color of the header gridline.

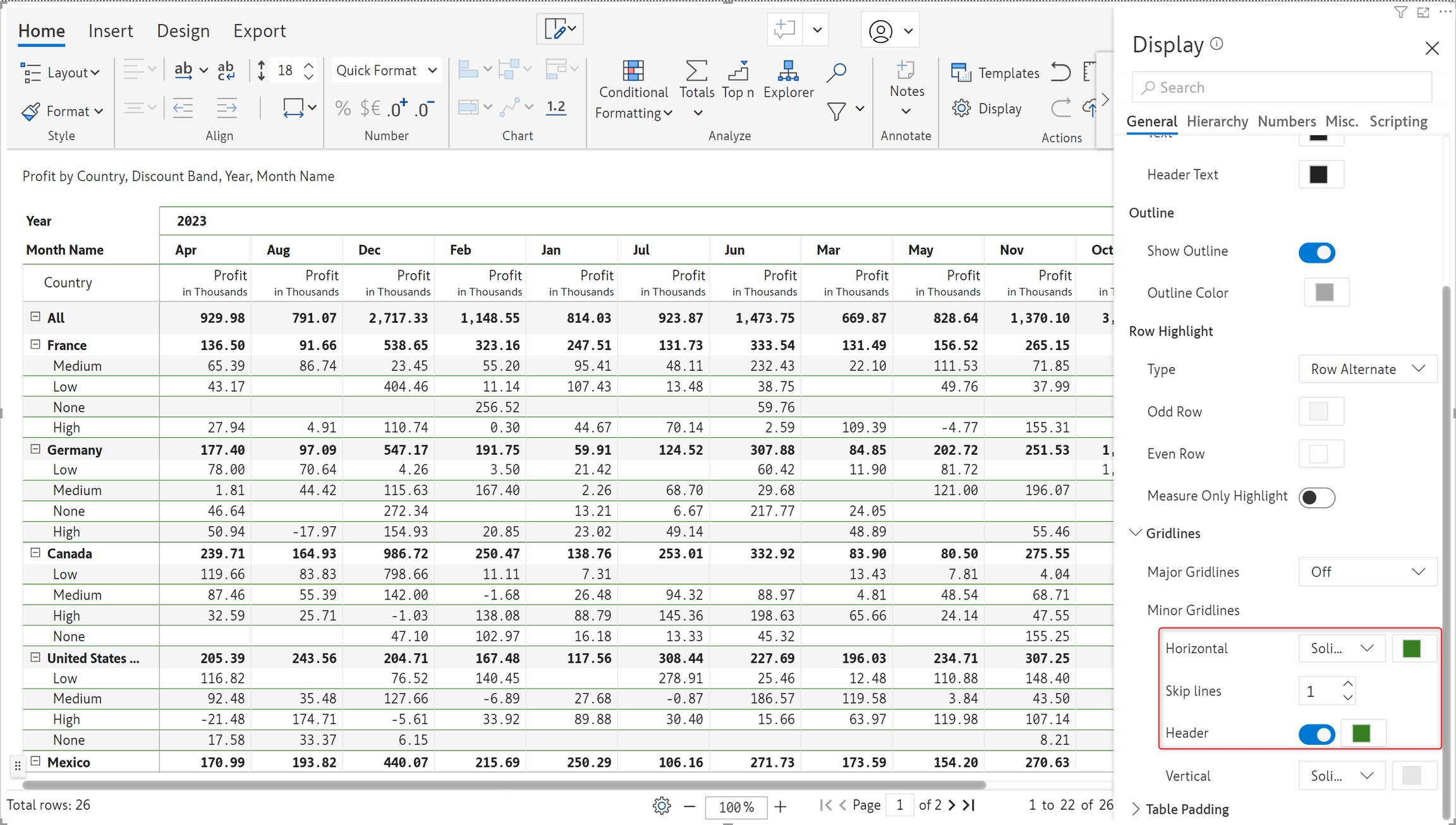

The color of the header gridline is the same as that of the horizontal gridlines by default.
If you change the color of the header gridline, the color of the horizontal gridlines also gets changed accordingly.
Vertical
This option lets you insert vertical lines between columns. You can select from the following options:
Solid - This option will insert solid vertical lines to the right of each column.
Off - This option will turn off the vertical lines
If the Solid Lines option is selected for the vertical lines, a color picker option is enabled. Using the color picker, you can customize the color of the solid vertical lines.

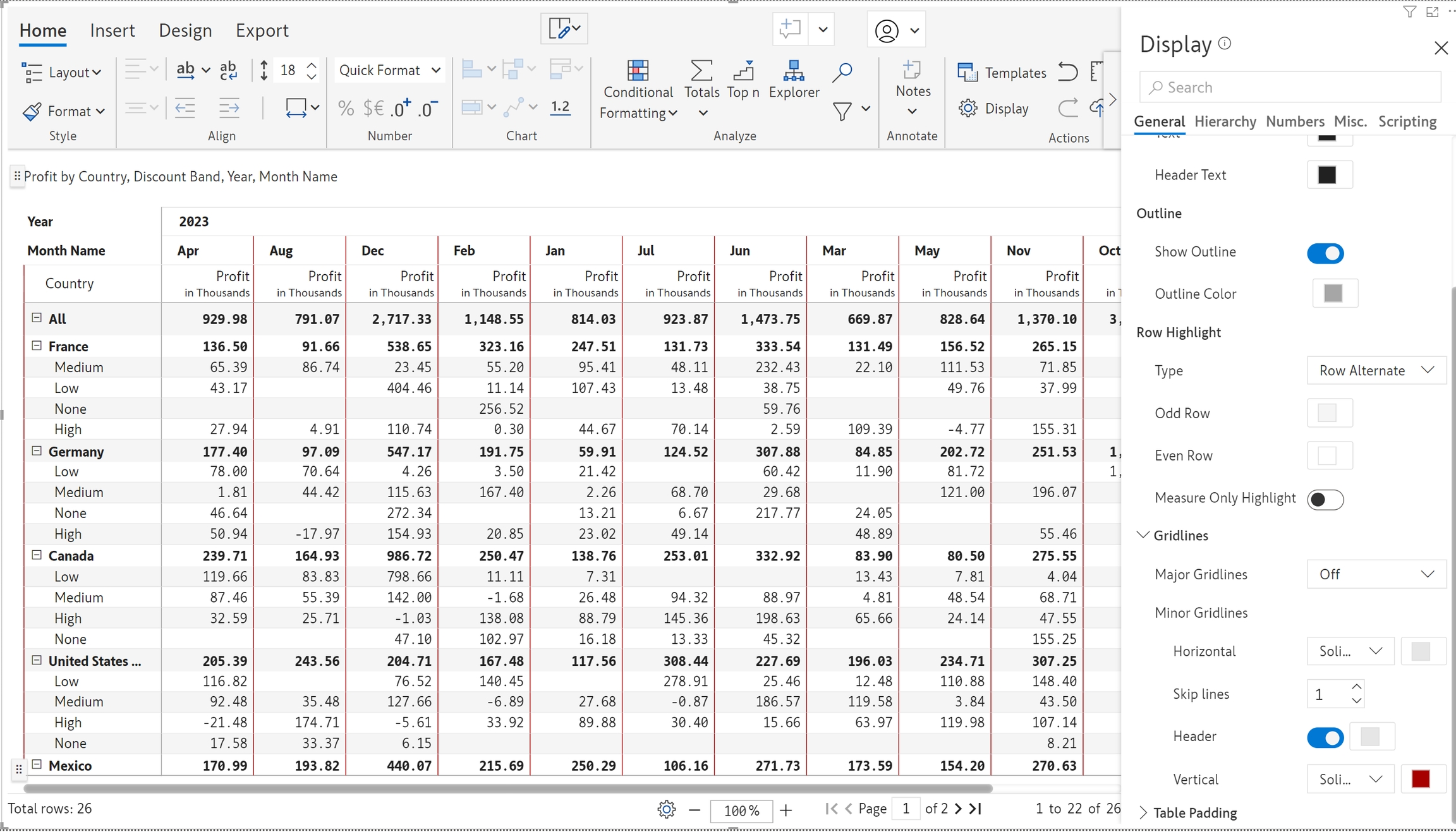

In the example, Solid vertical gridlines are inserted, and their colors are set to red.

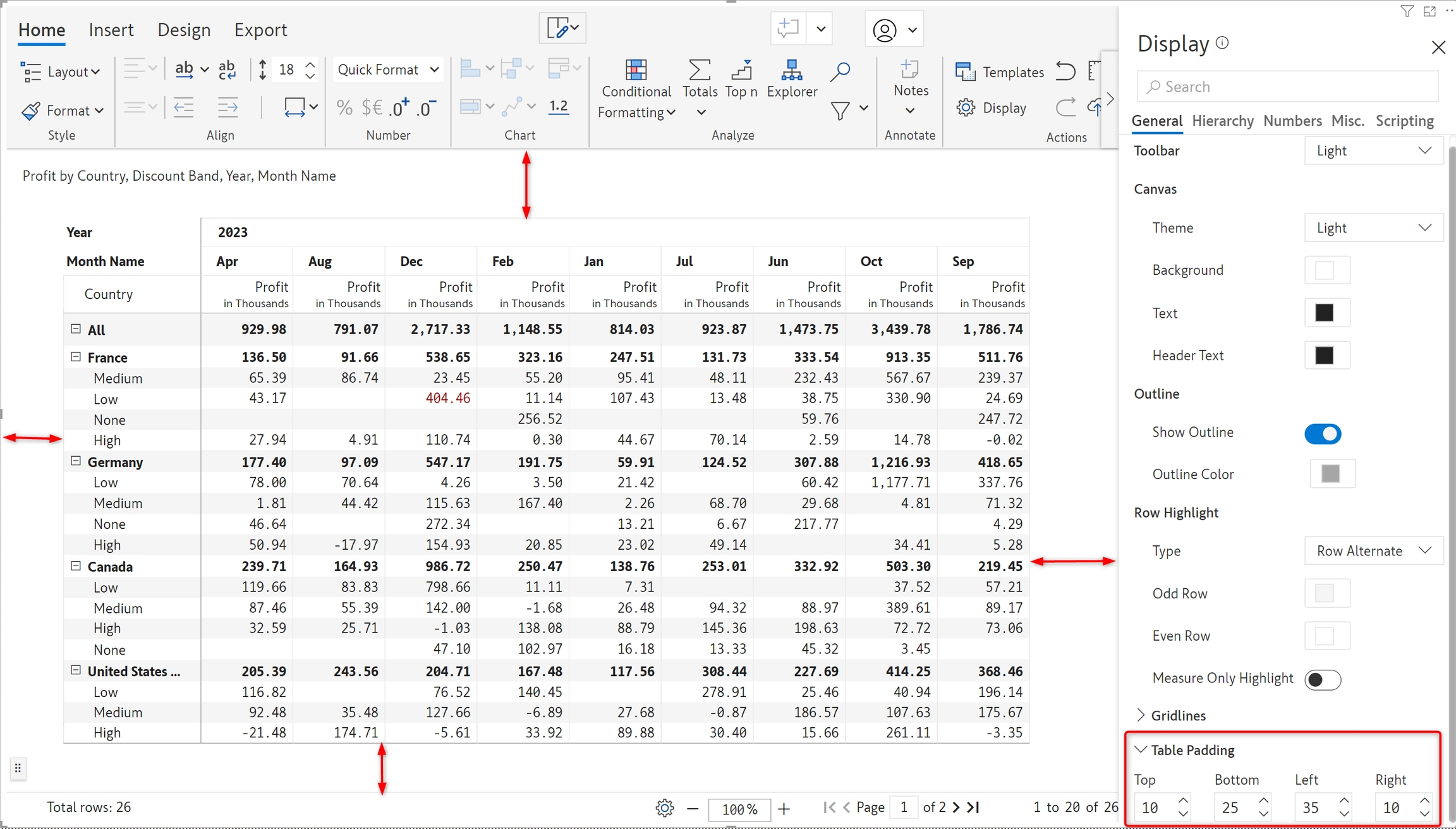

5. Table padding
This option allows you to insert spacing/padding for the table from the top, bottom, left, and right. Any padding applied will reflect in PDF exports.
The minimum and maximum padding values are 0 and 100, respectively.
