The Show Detail feature allows users to display additional data fields within the visual, providing more context without cluttering the main display.
How to Configure and Use:
1
Add a measure or category to the "Others" field to enable the Show Detail section in display settings.
2

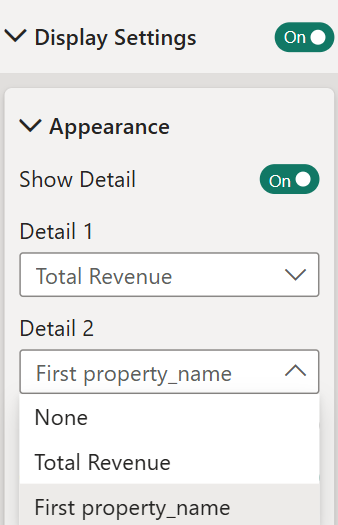

To configure Show Detail, go to Format pane → Display Settings → Show Detail.
3
A toggle switch is provided to enable or disable the visibility of details in the visual. When enabled, users can configure how additional data fields appear.
4
Once enabled, a Detail 1 dropdown appears. Users can select a data field from the "Others" section to display as a subtitle in the visual.

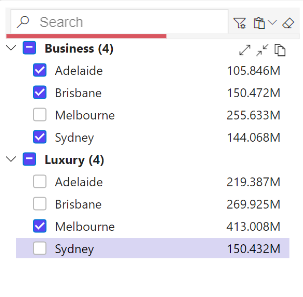

Image 1: Show Detail in the visual interface of visual.
Details will not be shown for Dropdown and Text area view types in Facet Filter.
Handling Multiple Categories or Measures
1
When two categories or measures are added, an additional option, "Detail 2", becomes available under show details section.
2
Configure Detail 2 with the specific measure or category you want to display in the visual.
3
When two details are configured, the first field appears at the right end of the visual, while the second field is displayed below each category item.
4
To display only one detail when two measures are added, selecting "None" for Detail 2 ensures that only a single detail appears, keeping the visual clear and uncluttered.
