SETVISIBILITY

SETVISIBILITY can be used to show or hide rows, columns, and measures.

NAME

DESCRIPTION

Show or hide specific row categories

Show or hide specific columns

Show or hide specific measures

Show or hide a measure for a particular row category

1. SETVISIBILITY(ROW_NAME)

Show or hide specific row categories - passing a value of TRUE will display the row, and passing a value of FALSE will hide it.

Syntax

SETVISIBILITY(ROW_NAME, BOOLEAN_ARG)

Arguments

ROW_NAME - Name of the row category to show or hide.

BOOLEAN_ARG - Set to TRUE to enable the rule. Set to FALSE to disable the rule.

Example

SETVISIBILITY([United States], FALSE) #Hides the United States row category and all child nodes under it

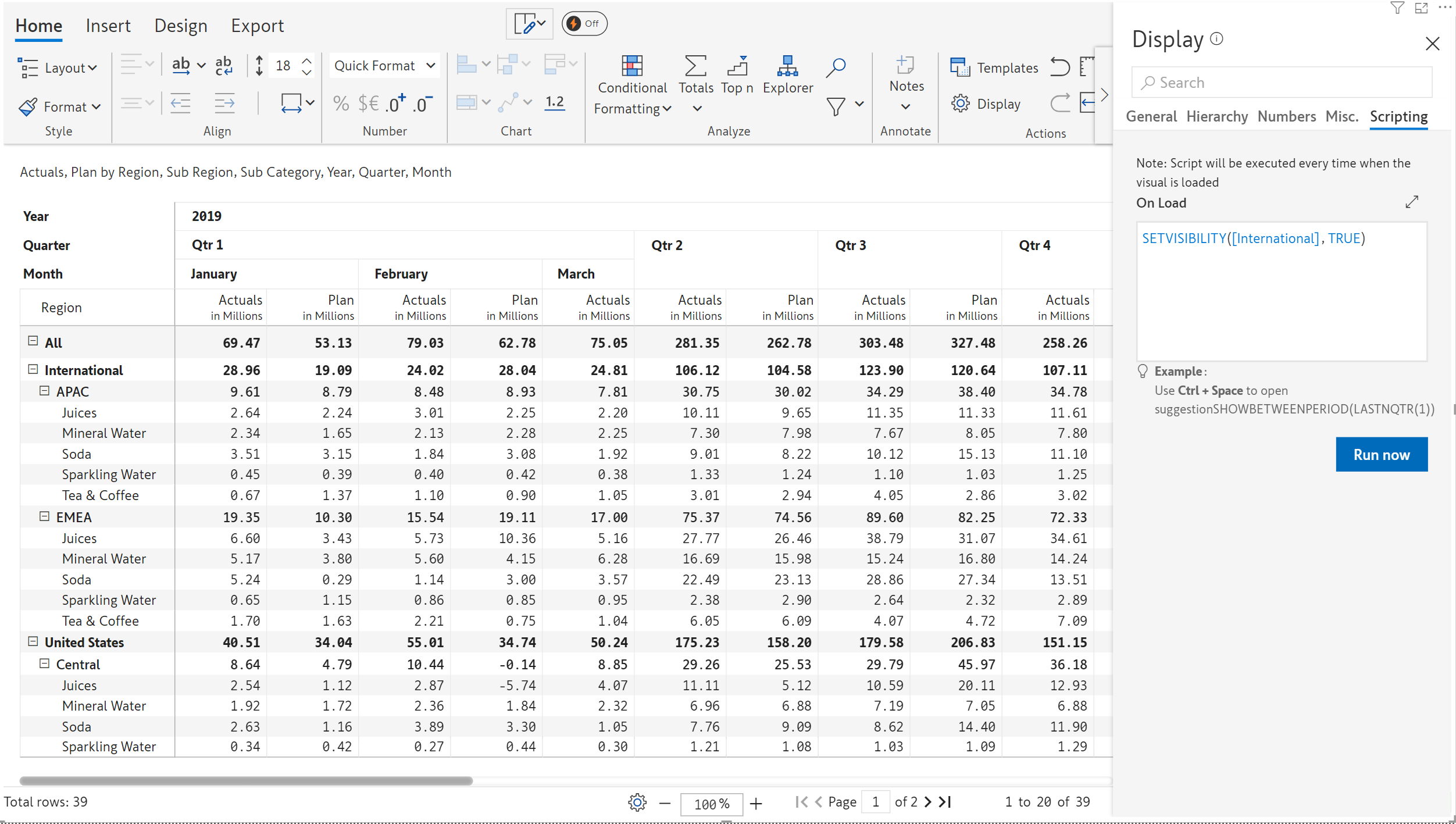

SETVISIBILITY([International], TRUE) #Displays the International row category
SETVISIBILITY([Technology], THIS) #Use with a toggle variable to show or hide the technology category

2. SETVISIBILITY(COLUMNS)

Show or hide specific columns - passing a value of TRUE will display the columns, and passing a value of FALSE will hide it.

Syntax

SETVISIBILITY(COLUMNS.COLUMN_NAME, BOOLEAN_ARG)

Arguments

COLUMN_NAME - The column to be shown or hidden.

BOOLEAN_ARG - Set to TRUE to enable the rule. Set to FALSE to disable the rule.

Example

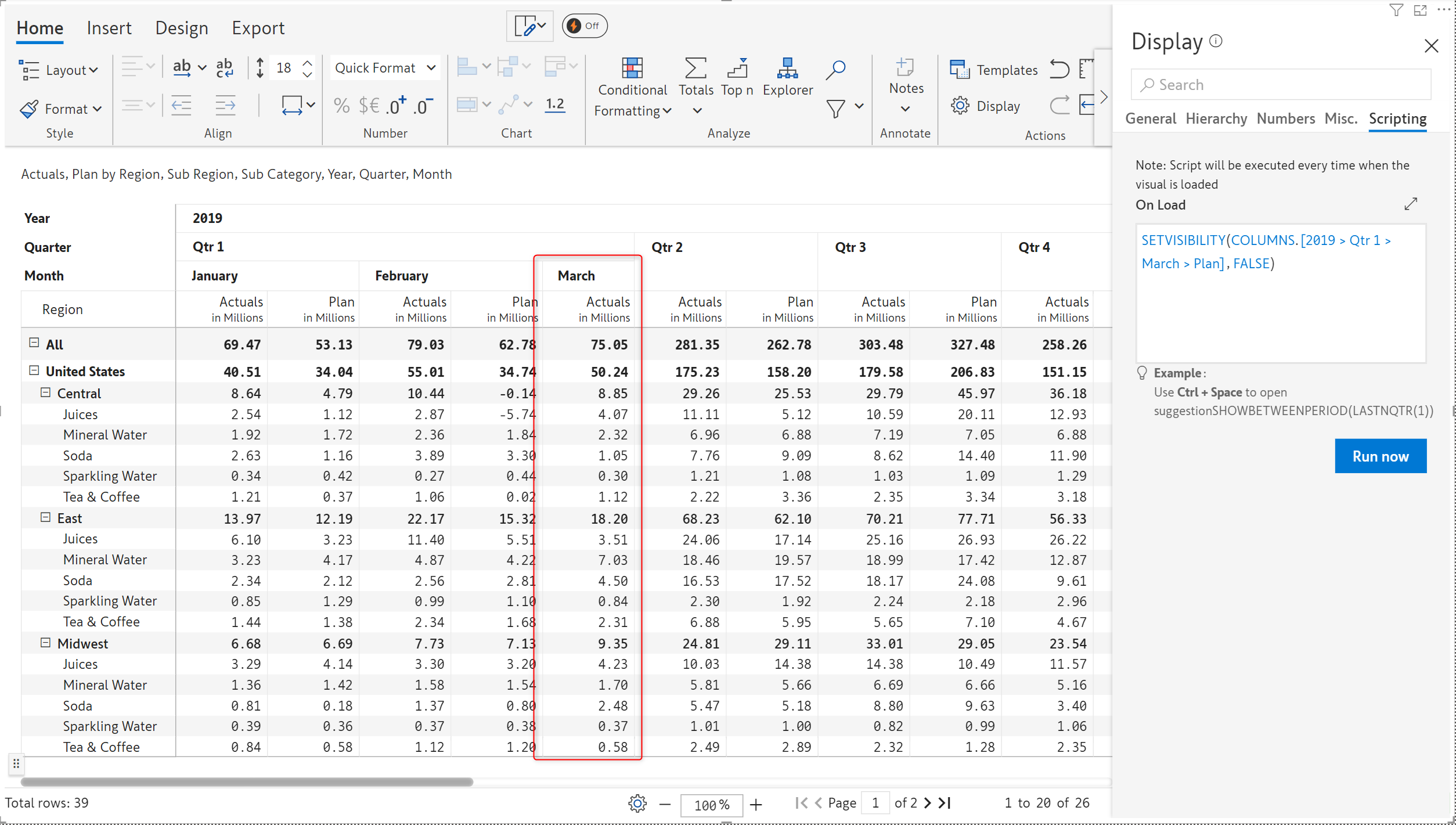

SETVISIBILITY(COLUMNS.[2019 > Qtr 1 > Actuals, FALSE) #Hides the Actuals measure for 2019, qtr 1
SETVISIBILITY(COLUMNS.[2019 > Qtr 1 > March > Plan, TRUE) #Displays the Plan for 2019, Q1, March
SETVISIBILITY(COLUMNS.[2019 > Qtr 1 > March > Plan,THIS) #Use with a toggle variable to show or hide the Qtr1 Plan

3. SETVISIBILITY(MEASURE)

Show or hide a particular measure - passing a value of TRUE will display the columns, and passing a value of FALSE will hide it.

Syntax

SETVISIBILITY(MEASURE_NAME, BOOLEAN_ARG)

Arguments

MEASURE_NAME - Name of the measure to be hidden.

BOOLEAN_ARG - Set to TRUE to enable the rule. Set to FALSE to disable the rule.

Example

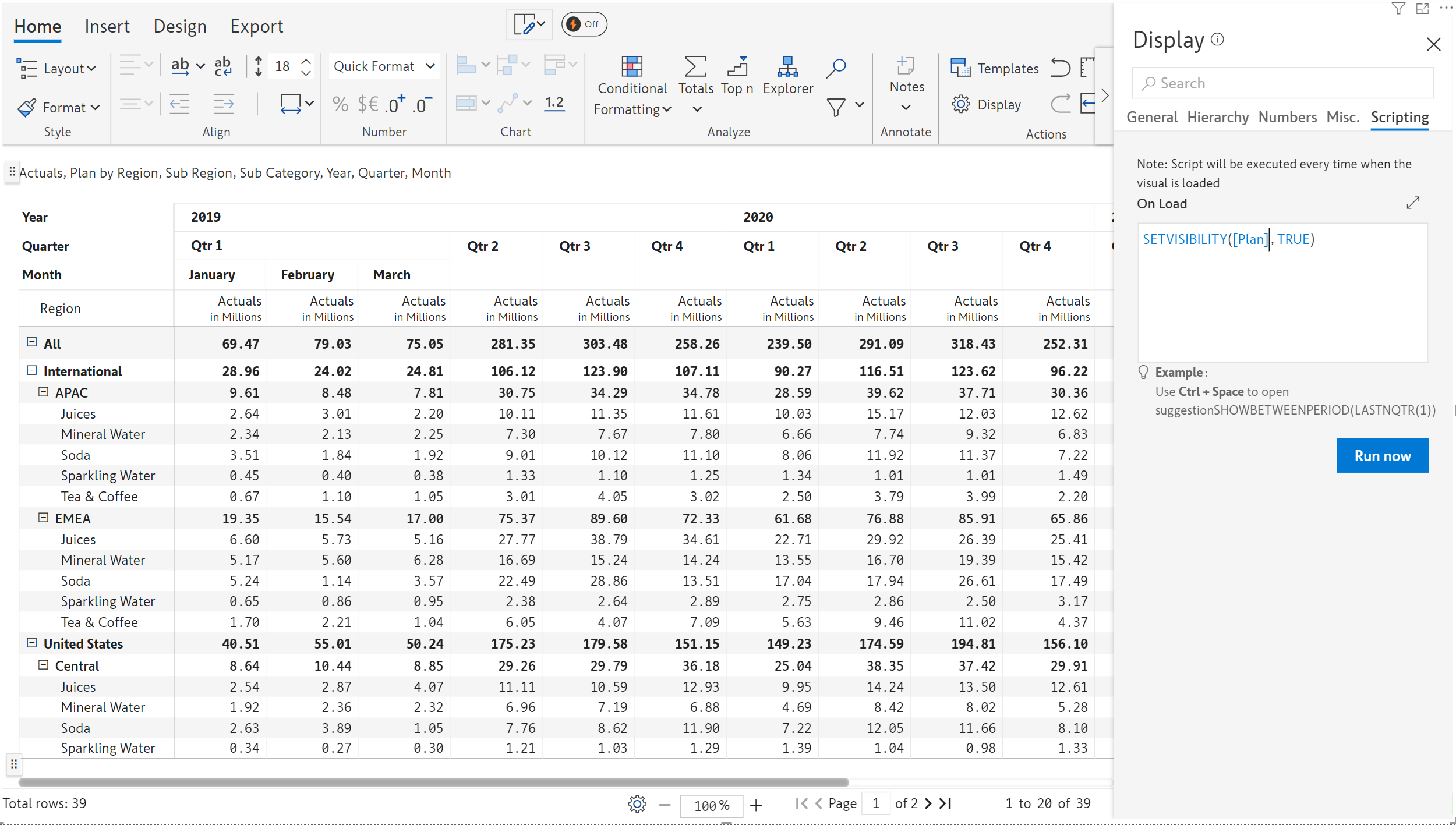

SETVISIBILITY([Plan], FALSE) #Hides the Plan measure
SETVISIBILITY([Actuals], TRUE) #Displays the Actuals measure
SETVISIBILITY([Actuals], THIS) #Use with a toggle variable to show or hide the Actuals measure

4. SETVISIBILITY(ROW, COLUMN)

Show or hide a measure for a particular row category and column. Passing a value of TRUE will display the row category for a particular column and measure. Passing a value of FALSE will hide it.

Syntax

SETVISIBILITY(ROW_NAME, COLUMNS.COLUMN_NAME, BOOLEAN_ARG)

Arguments

ROW_NAME - Name of the row category to show or hide.

COLUMN_NAME - Name of the column to show or hide.

BOOLEAN_ARG - Set to TRUE to enable the rule. Set to FALSE to disable the rule.

Example

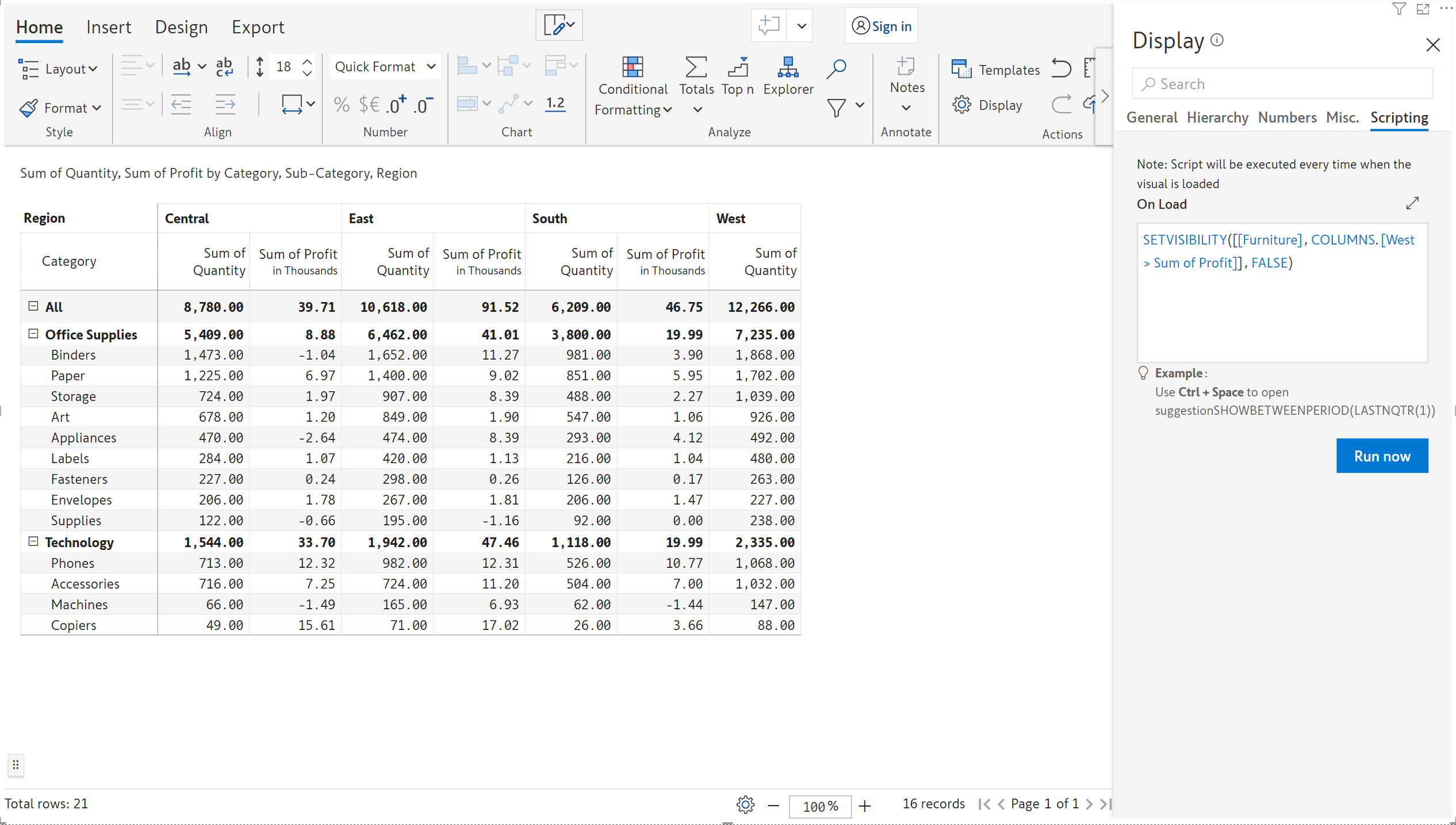

SETVISIBILITY([[Furniture], COLUMNS.[West > Sum of Profit]], FALSE) #Hides the column for a row category
SETVISIBILITY([[Furniture], COLUMNS.[Central > Sum of Quantity]], TRUE) #Shows the column for a row category
SETVISIBILITY([[Furniture], COLUMNS.[Central > Sum of Quantity]], THIS) #Use with a toggle variable to show or hide the Quantity for furniture
