# Custom DNS Support

### Task

Customers may choose to use their own DNS server instead of the default Azure-provided DNS for various reasons.

### Limitations of On-Prem DNS

By Microsoft’s design, only the Azure DNS server (168.63.129.16) can resolve Azure services (Storage account, Azure SQL, Azure Managed Redis, etc.) with their private IPs (example: 192.168.x.x / 172.16.x.x / 10.x.x.x).

Inforiver’s network setup is designed to communicate only using private IPs (Private endpoints) among its core resources within the deployed VNet. So, if there isn’t any existing service/configuration to forward Azure Private Link DNS queries to 168.63.129.16, the queries will either fail or resolve with public IPs where the communication can’t be made.

### How to Resolve?

{% hint style="info" %}
We will only cover a few scenarios in this document. Your DNS setup and requirements may vary. For the complete list of supported scenarios and Microsoft-recommended approaches for each of them, please refer to: <https://learn.microsoft.com/en-us/azure/private-link/private-endpoint-dns-integration>
{% endhint %}

### Scenario I - Azure Private Resolver with on-premises DNS forwarder

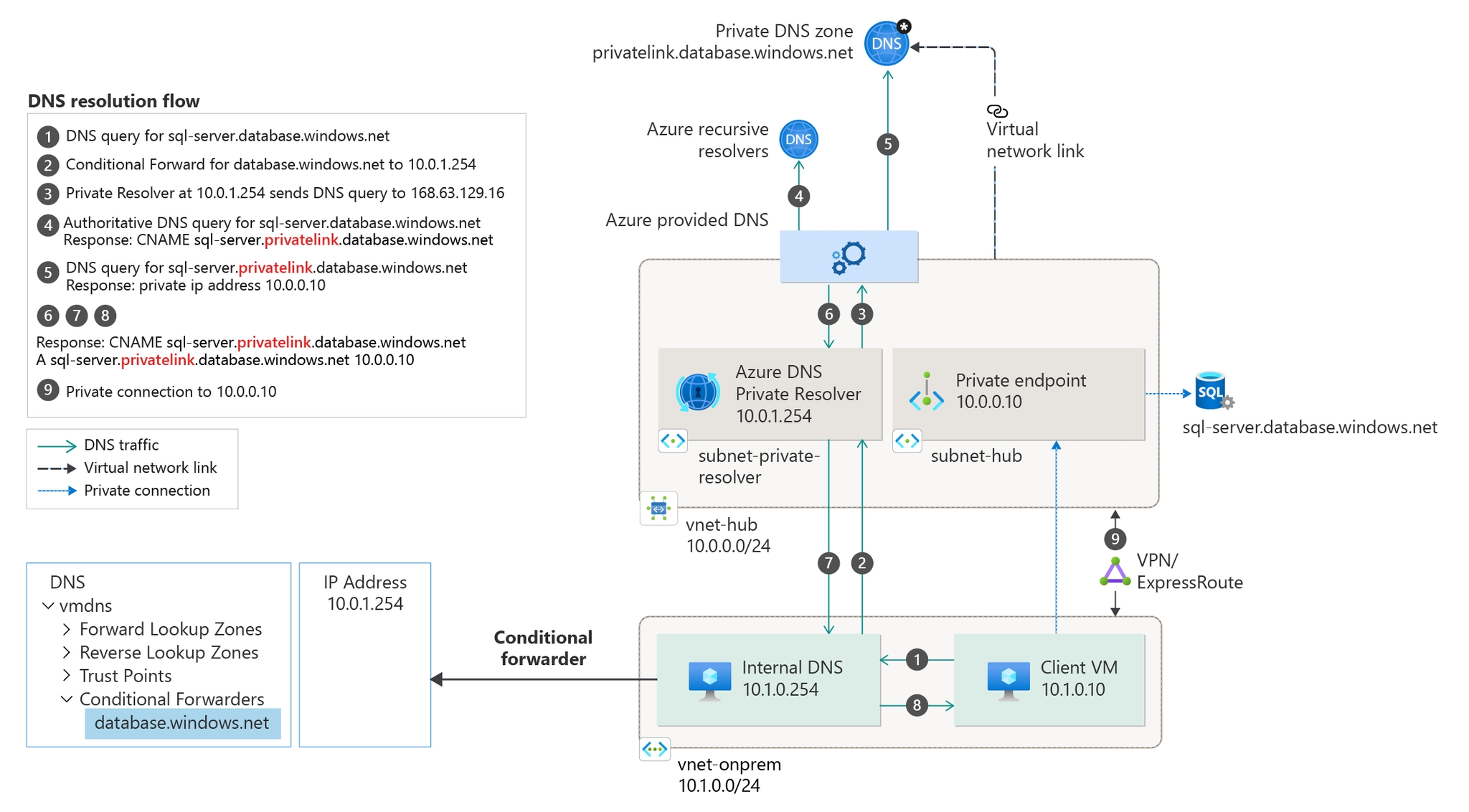

#### Reference Architecture:

![](https://content.gitbook.com/content/tn9fmavAcyzaE7MAMP2U/blobs/OMX7jIDzJ3fcDmipIgdV/on%20premises%20forwarding%20to%20azure.png)

{% stepper %}
{% step %}

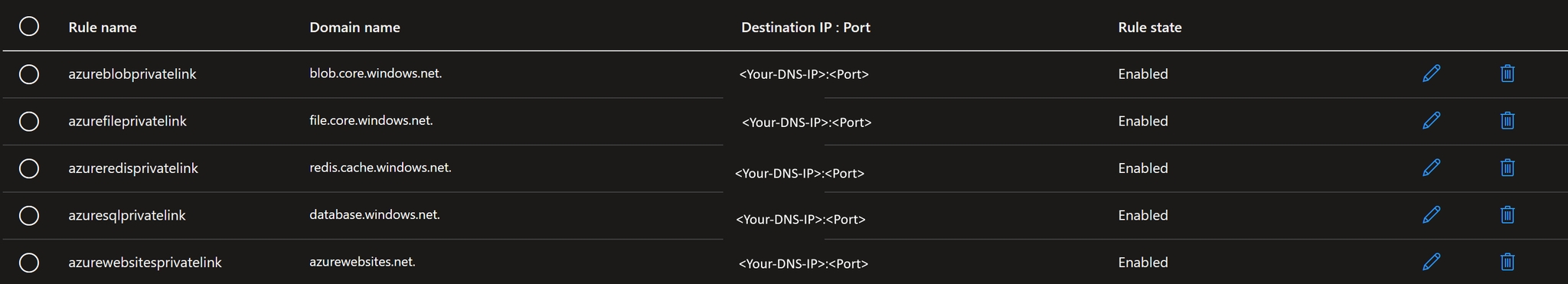

### DNS private resolver rules

Add the following domain names to the ruleset and set the destination to your on-premises DNS IP & Port:

1. blob.core.windows.net
2. file.core.windows.net
3. redis.azure.net
4. database.windows.net
5. azurewebsites.net
6. vaultcore.azure.net

<figure><img src="https://4102771481-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Ftn9fmavAcyzaE7MAMP2U%2Fuploads%2Fr4TOr7pPWPHQUn3Lletr%2Fimage.png?alt=media&#x26;token=c1f34cc6-a21f-4527-ab3e-b41bb1e4f42a" alt=""><figcaption><p>Ruleset</p></figcaption></figure>
{% endstep %}

{% step %}

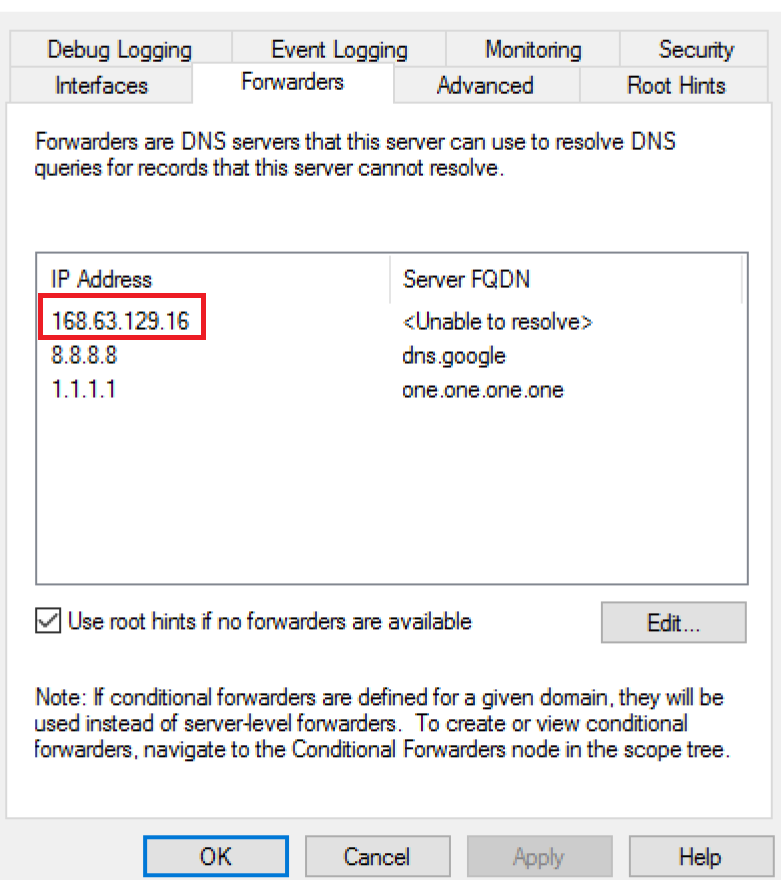

### Azure DNS IP should be added to the forwarders list

Add the Azure DNS IP (168.63.129.16) into the forwarders list of your on-prem DNS where appropriate.

![Add to Forwarders list](https://content.gitbook.com/content/tn9fmavAcyzaE7MAMP2U/blobs/JBtkHbL8nPAzkDWAR9EK/Screenshot_2024%2012%2012_201012.png)
{% endstep %}

{% step %}

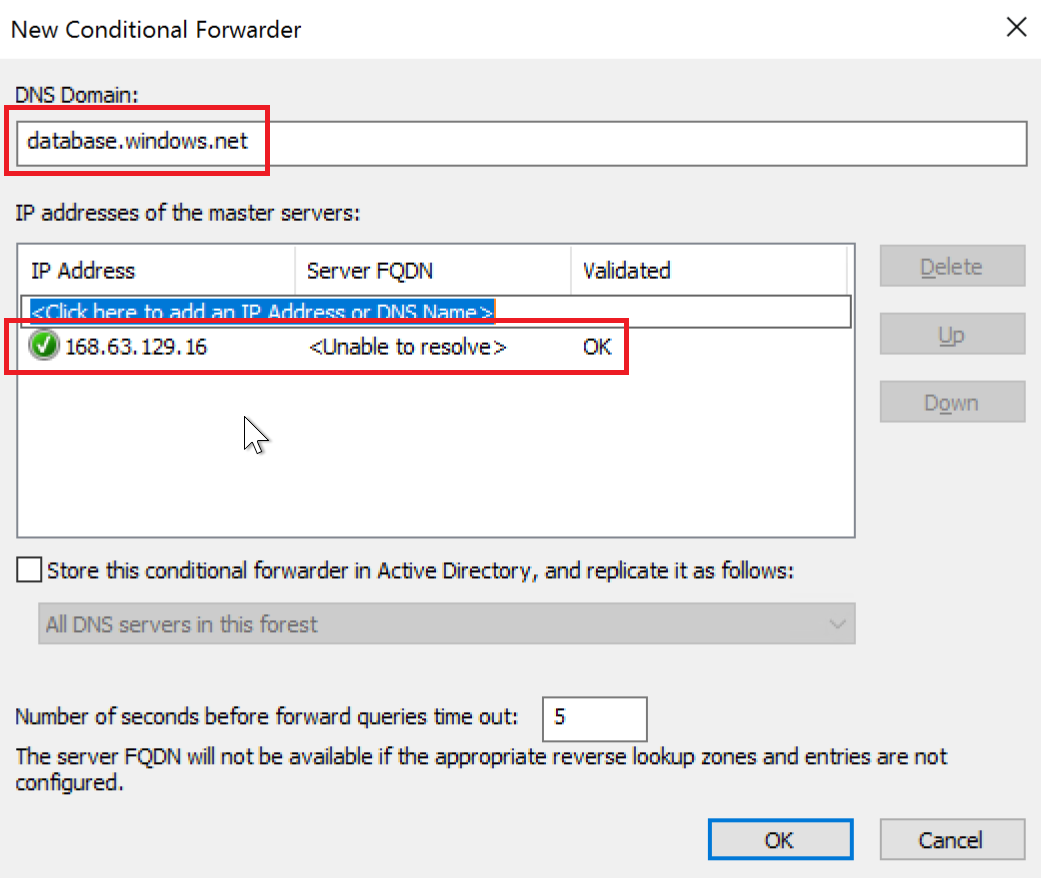

### Create conditional forwarders to 168.63.129.16

Create conditional forwarders for the above domains listed in Step 1 and point them to the IP address 168.63.129.16.

![Conditional Forwarder](https://content.gitbook.com/content/tn9fmavAcyzaE7MAMP2U/blobs/XgsYUCBj57kOvrY7Mtpd/Screenshot_2024%2012%2012_213802.png)

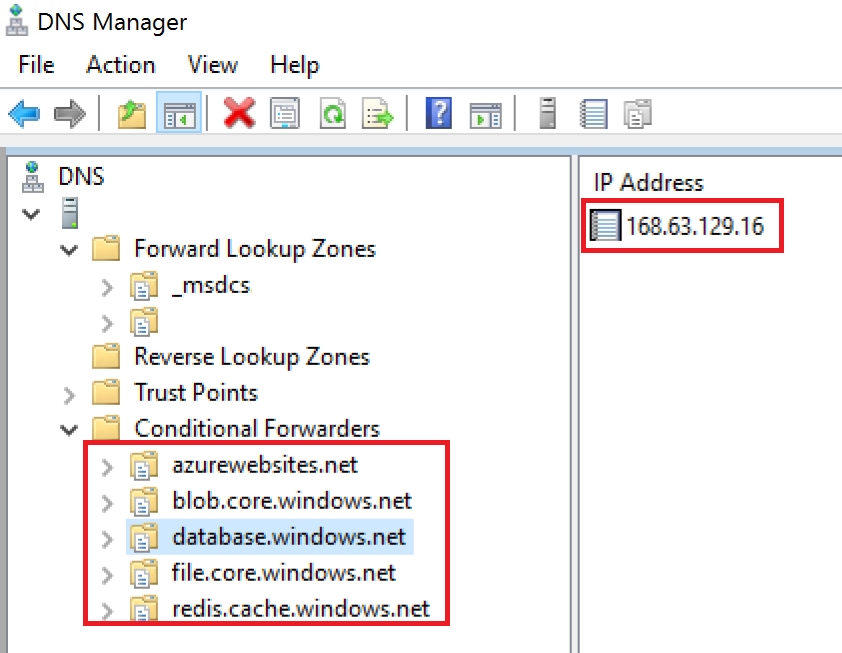

#### Conditional Forwarders reference config:

<figure><img src="https://4102771481-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Ftn9fmavAcyzaE7MAMP2U%2Fuploads%2FCqsTQ6Cv3BtrIsY7hF35%2Fimage.png?alt=media&#x26;token=e352cfe3-6c7a-4d19-b695-0c5582edbb85" alt=""><figcaption><p>Conditional Forwarders Reference Config</p></figcaption></figure>
{% endstep %}

{% step %}

### Establish Virtual Network Links

{% hint style="info" %}
:bulb: Important Note:&#x20;

The resolution is made by a private DNS zone [linked to a virtual network](https://learn.microsoft.com/en-us/azure/dns/private-dns-virtual-network-links). Make sure the Virtual Network links are established between the Azure Private DNS Zone(s) and the VNet where the VPN/ExpressRoute is connected.
{% endhint %}

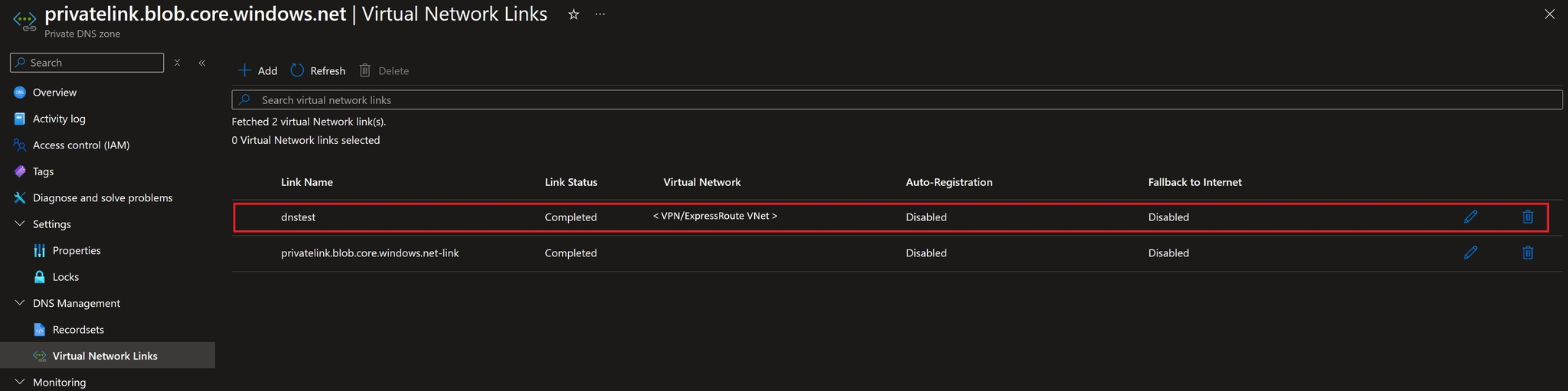

#### Reference for privatelink.blob.core.windows.net:

![](https://content.gitbook.com/content/tn9fmavAcyzaE7MAMP2U/blobs/jMaj7mFcK5z7dz6d9n2g/Screenshot_2024%2012%2012_221056.png)
{% endstep %}

{% step %}

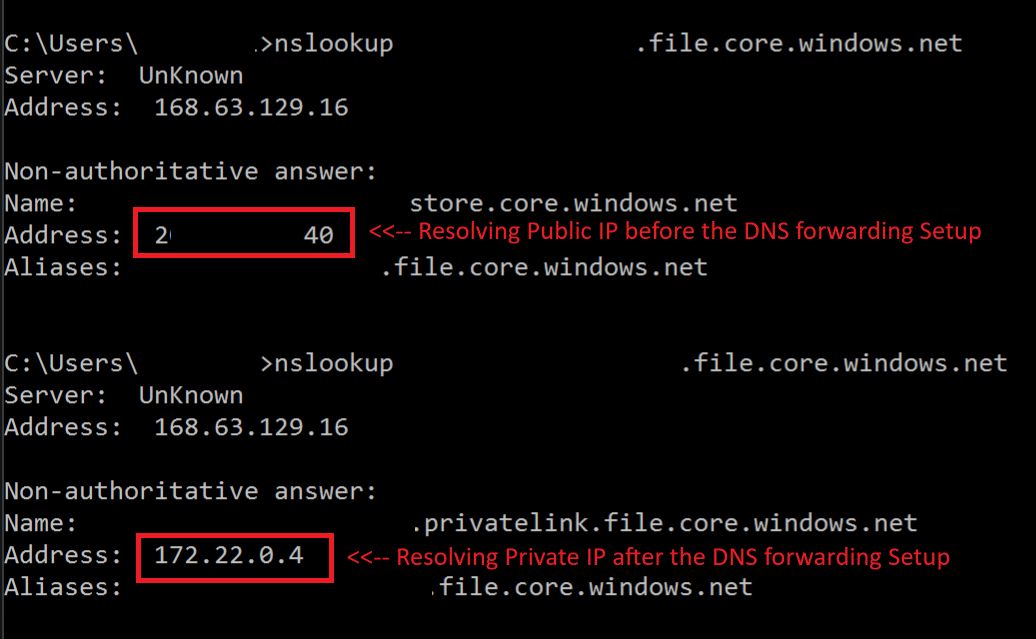

### Validate

Validate DNS resolution using `nslookup` from the DNS server.

![Validate](https://content.gitbook.com/content/tn9fmavAcyzaE7MAMP2U/blobs/UptxFB5MiqwS7J29Wsoh/Screenshot_2024%2012%2012_222223.png)
{% endstep %}
{% endstepper %}
