Notes

Notes are static text added to a data point or visual to give some descriptive details.

Notes - Overview

Observe that notes do not have options for a reply and do not capture time stamps.

Notes in Inforiver

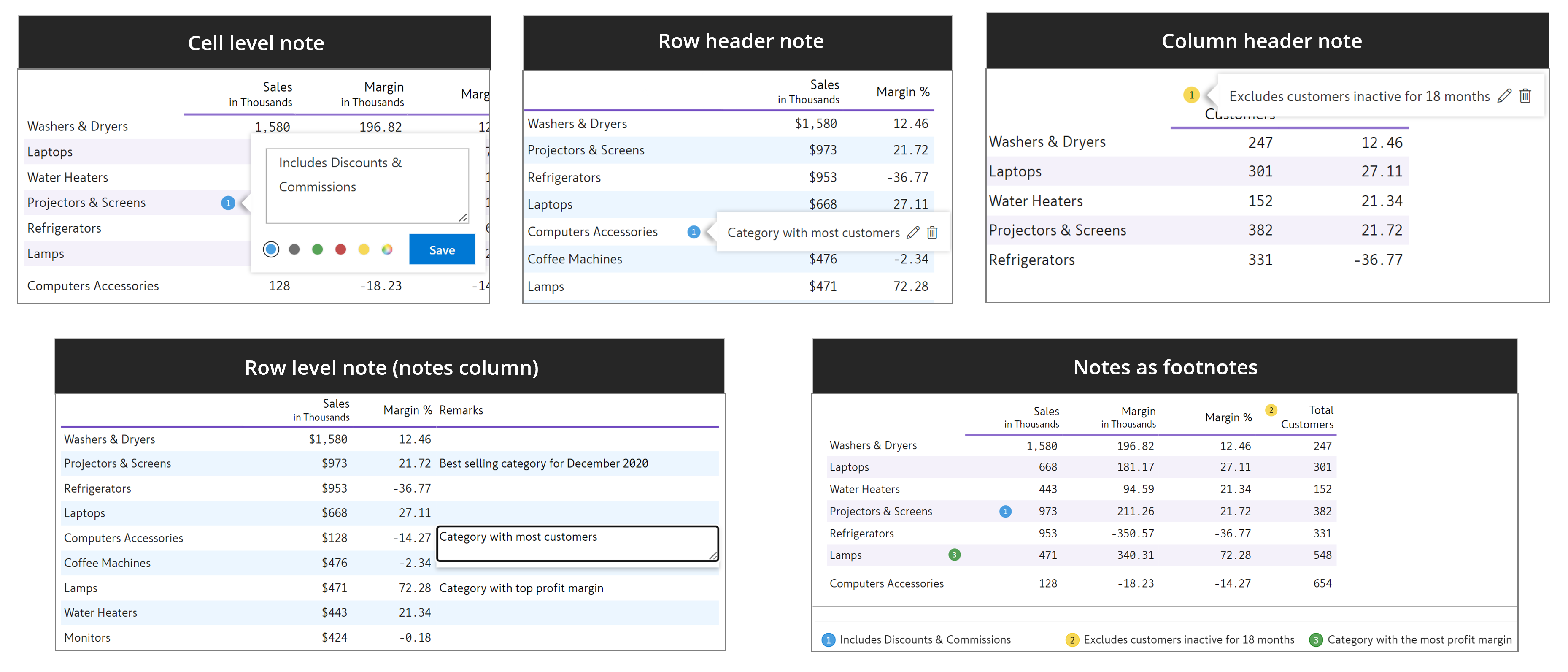

You can insert notes at a cell level, row/column header level, as notes column, and as footnotes.

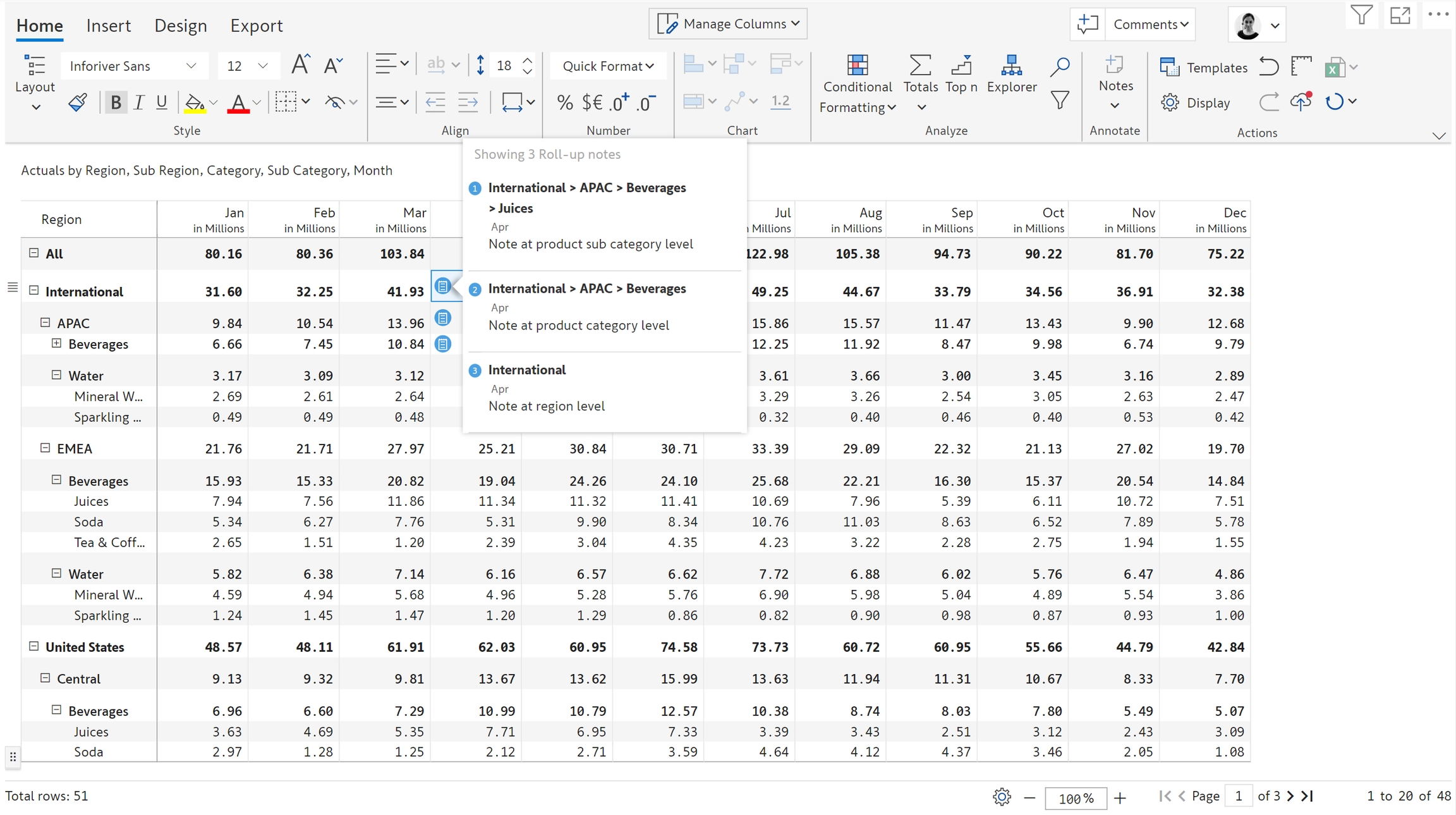

Data level notes

Inforiver also provides an option to add notes at the report level as shown below.

Report level notes
circle-info
  • You can export notes along with the report in Excel and PDF.

  • Notes added in reading mode will not be saved to the base report. Report users can however, export notes.

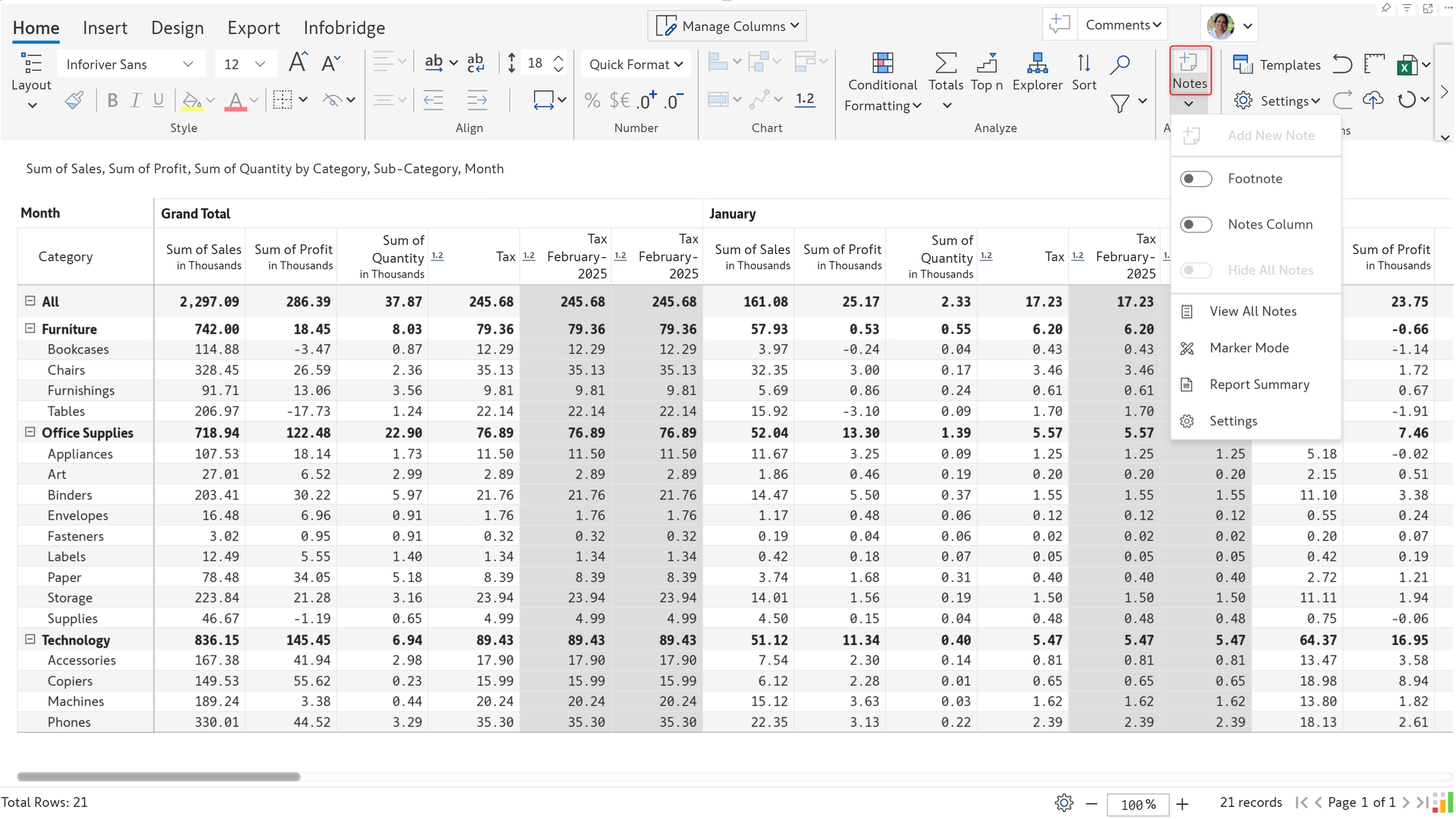

Notes configuration options are shown:

Notes configurations

1. Cell-level notes

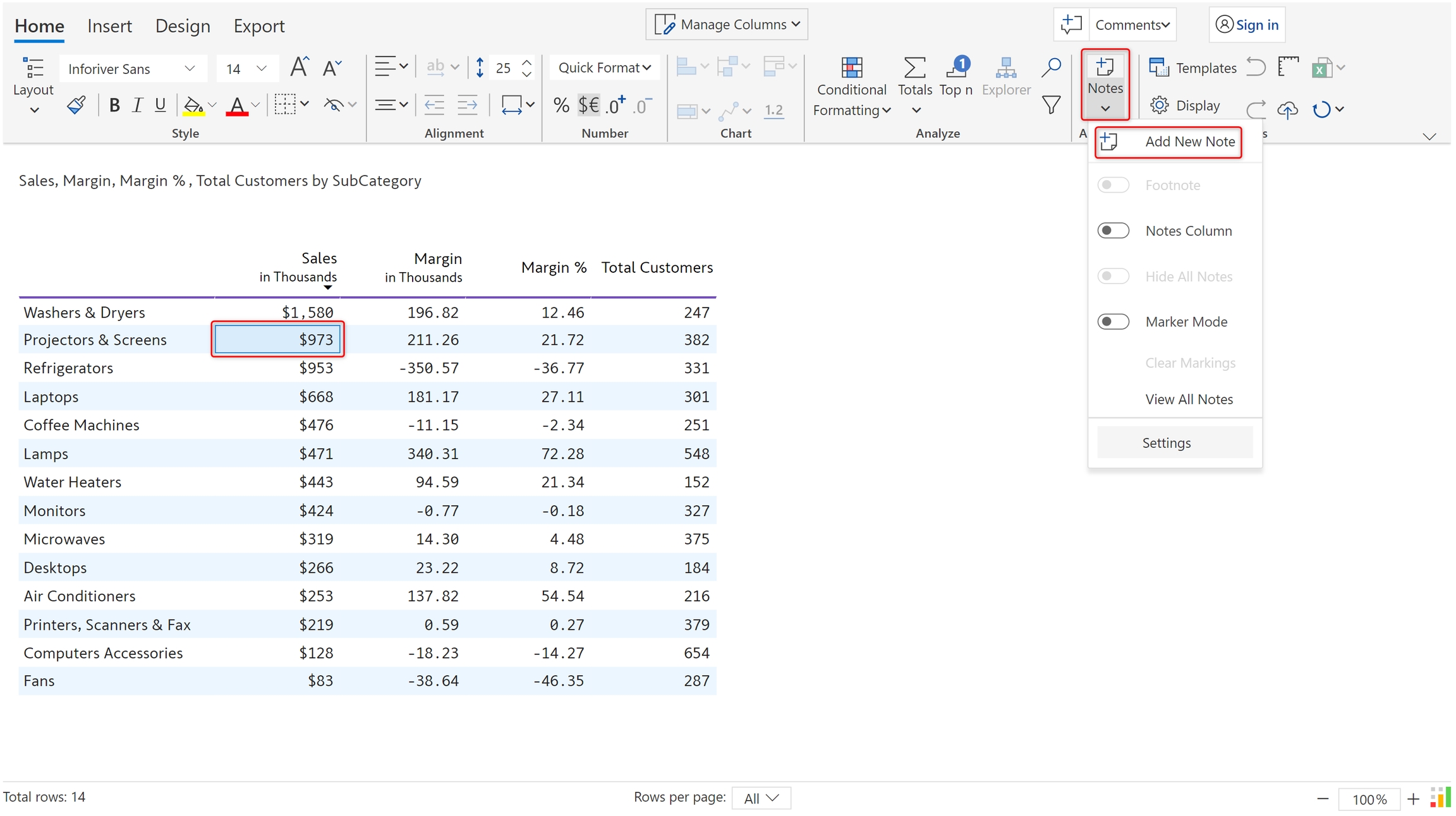

1.1. Let's see how to add notes. Click on a cell, click Notes, and then Add new note.

circle-info

To add the same note for multiple cells, Ctrl + click to select each cell, then add a note.

Adding a new note

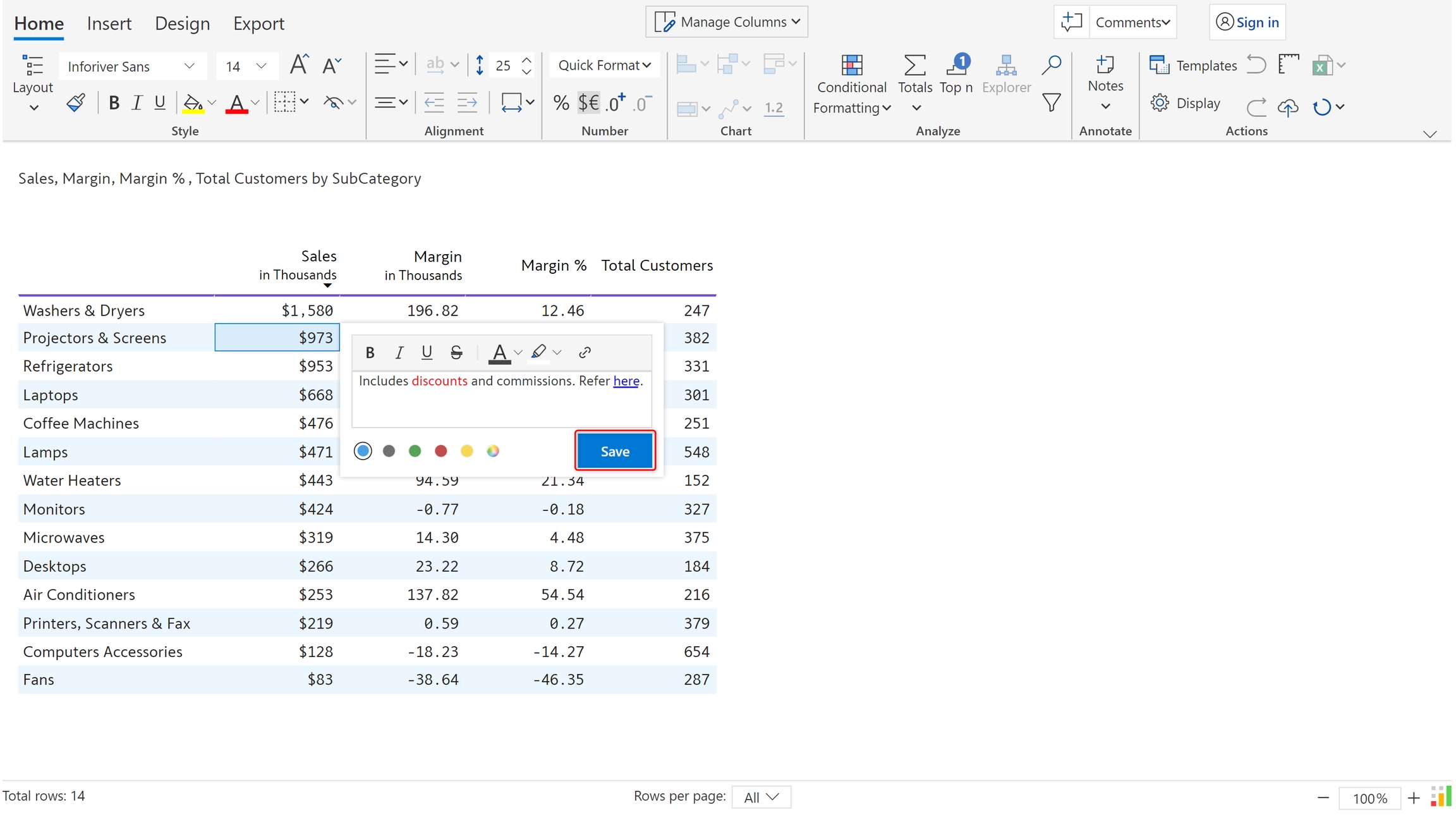

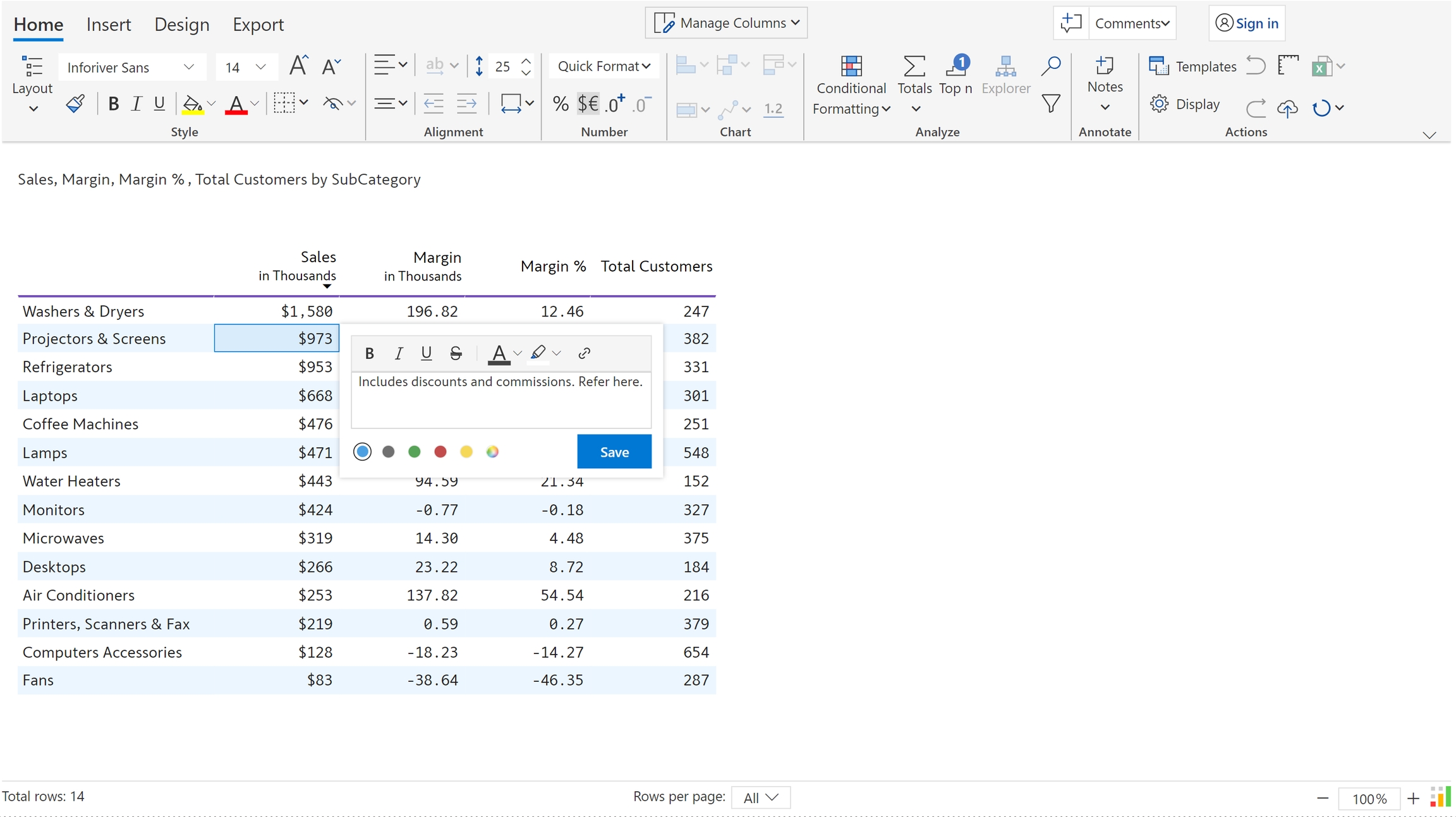

1.2. An editor opens where you can add hyperlinks and apply rich formatting. Enter a note as shown below.

Notes editor

1.3. Try out the formatting options as shown below. Click Save.

Applying rich formatting

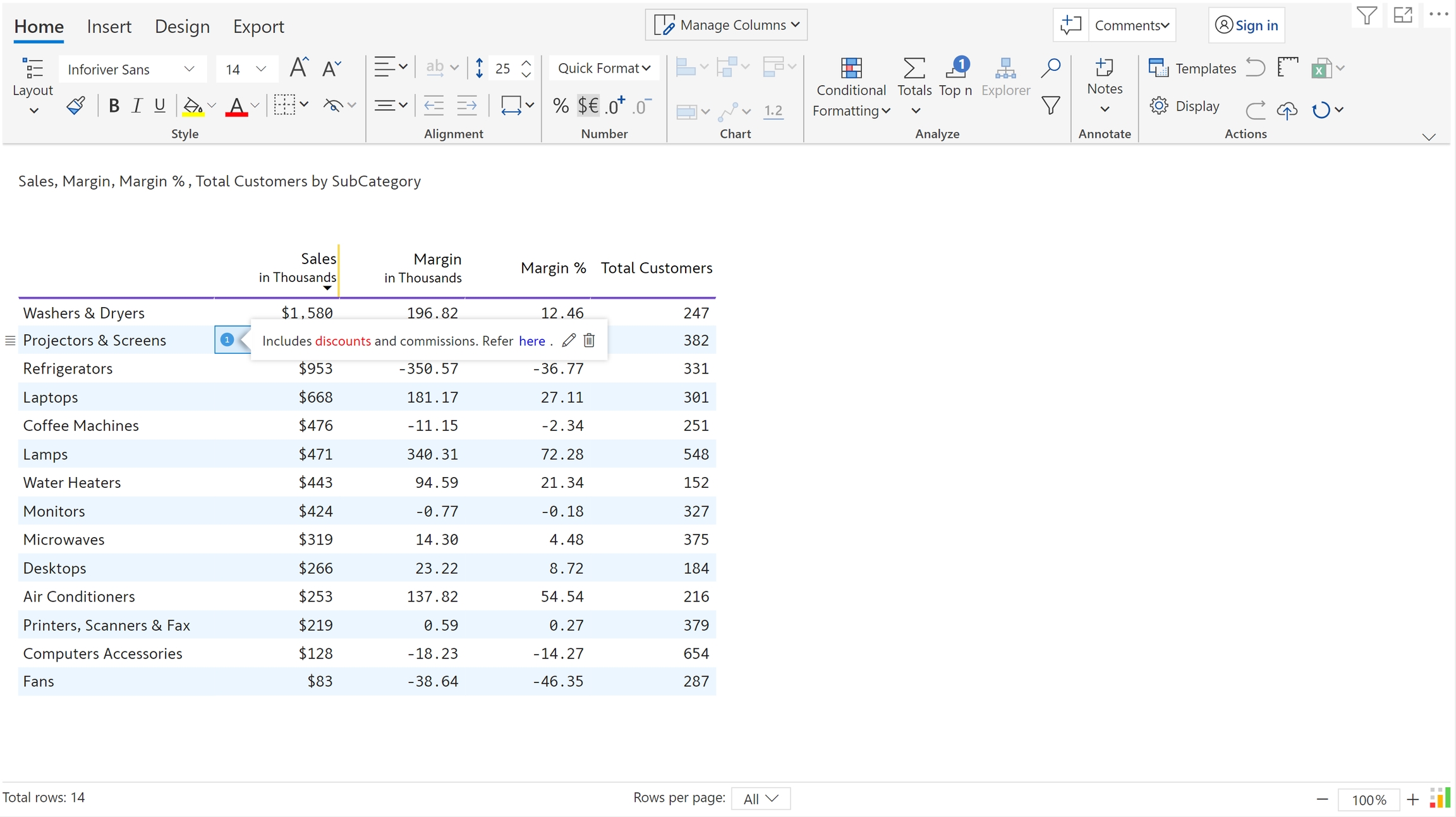

1.4. You can see an indicator, and as you hover over it, you can see the note.

Notes is visible on hover

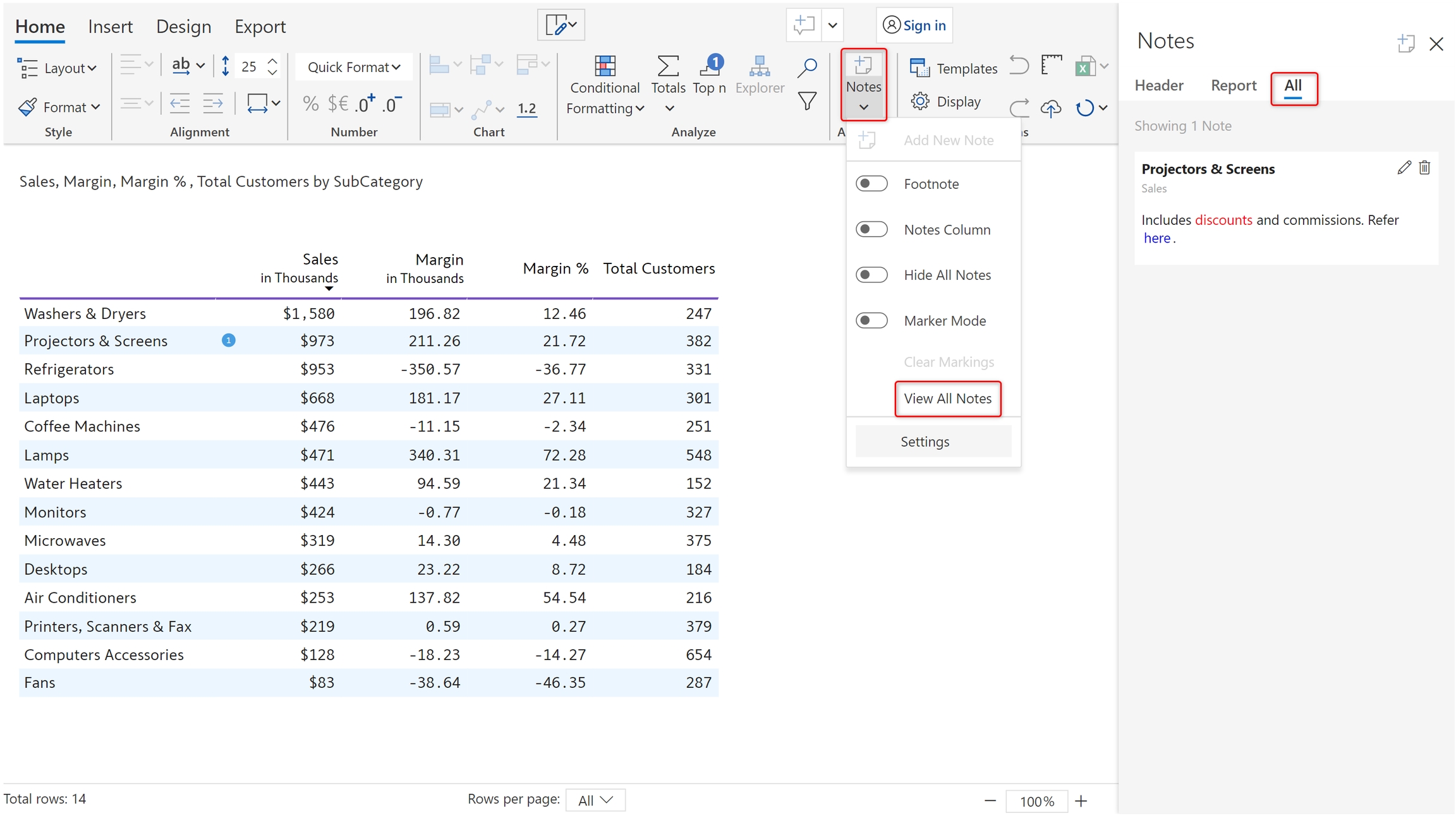

1.5. All the notes added to the report can be seen in one place. Click Notes and View all notes from the dropdown.

Cell level note in the notes panel

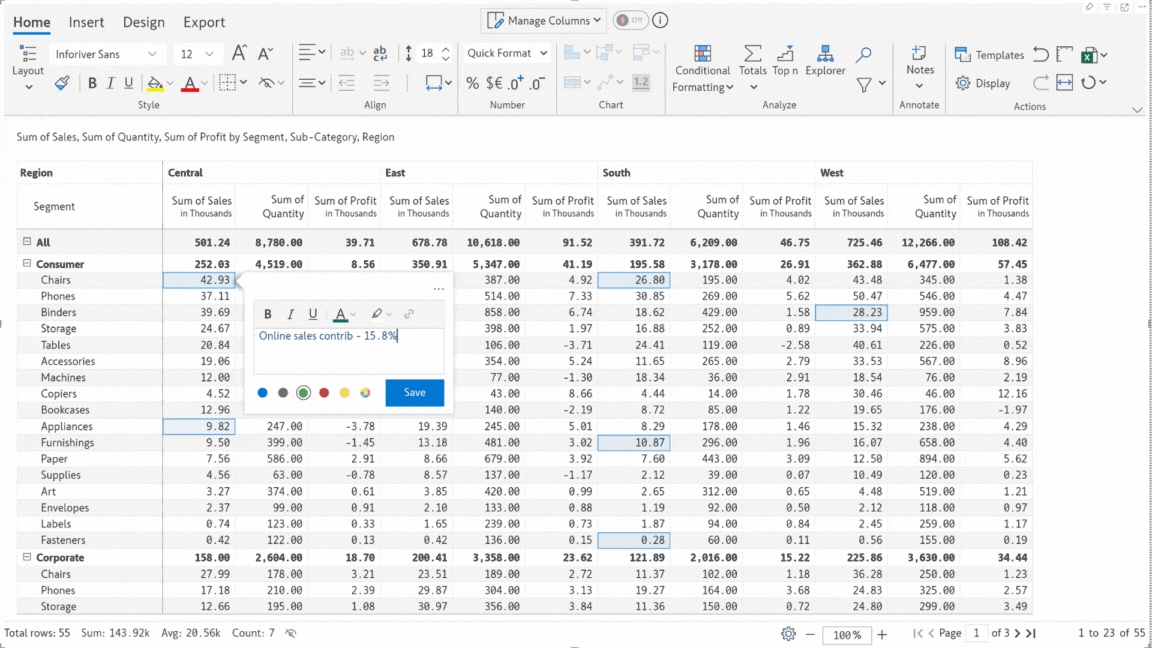

1.6. You may need to enter a note that applies to multiple cells, for example, a particular marketing strategy may have contributed to the increase in sales for specific regions and quarters. You can select a series of cells and add a single note that applies to all of them.

Single note for multiple cells

2. Header-level notes

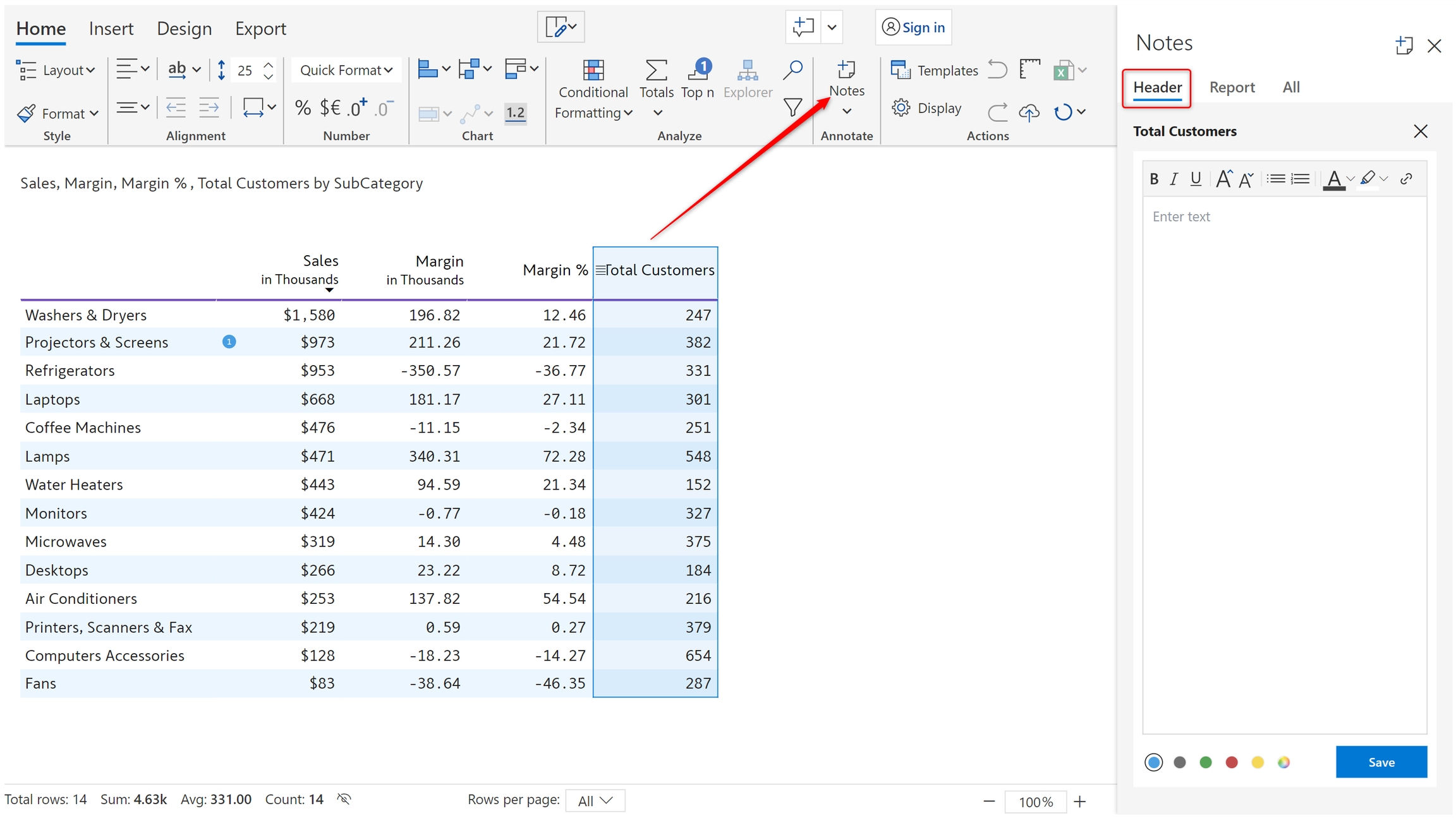

2.1. To add a note at the row or column header level, select the row/column. Click on the Notes icon. A side panel opens, providing a large screen editor.

Header level notes

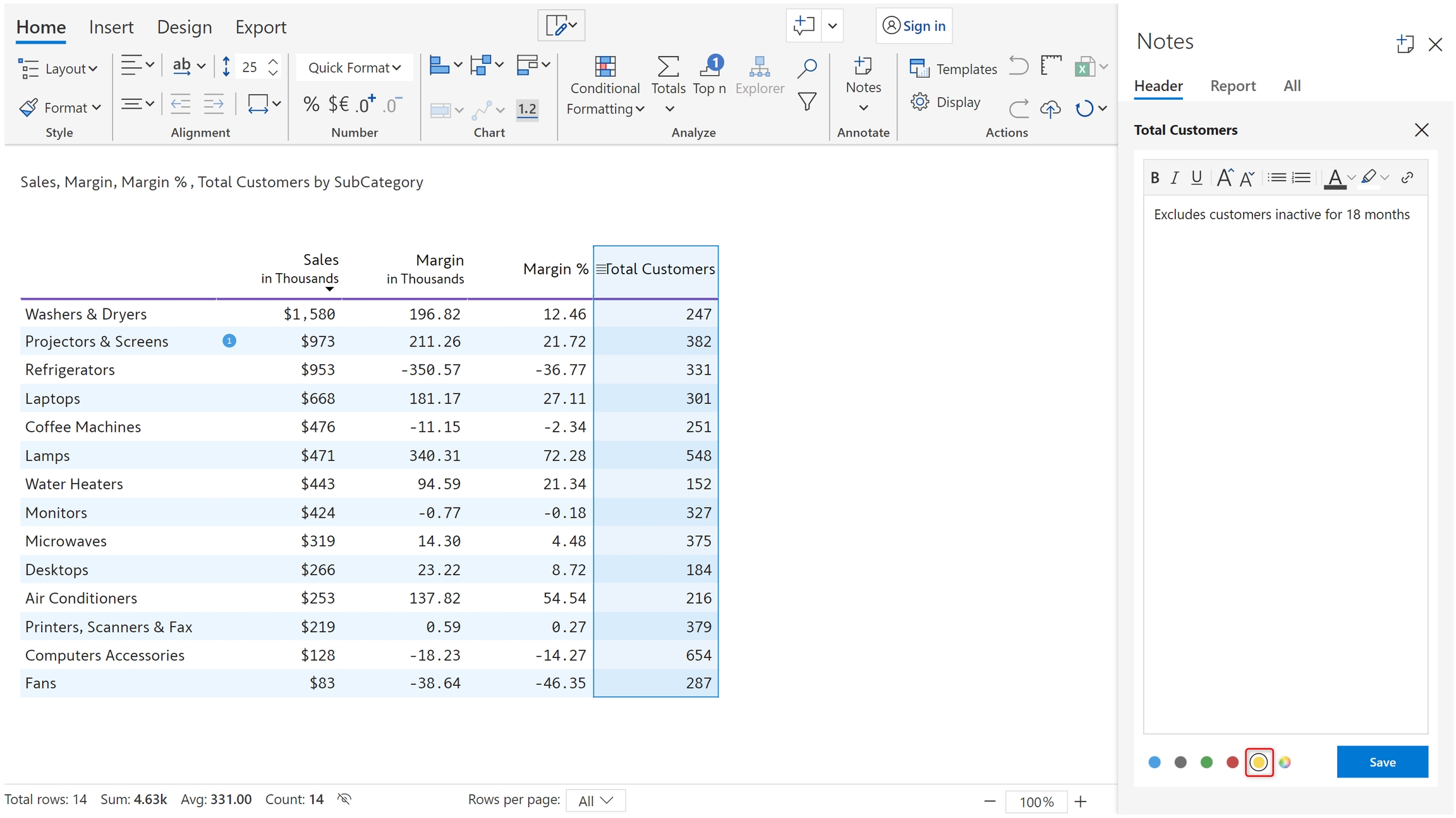

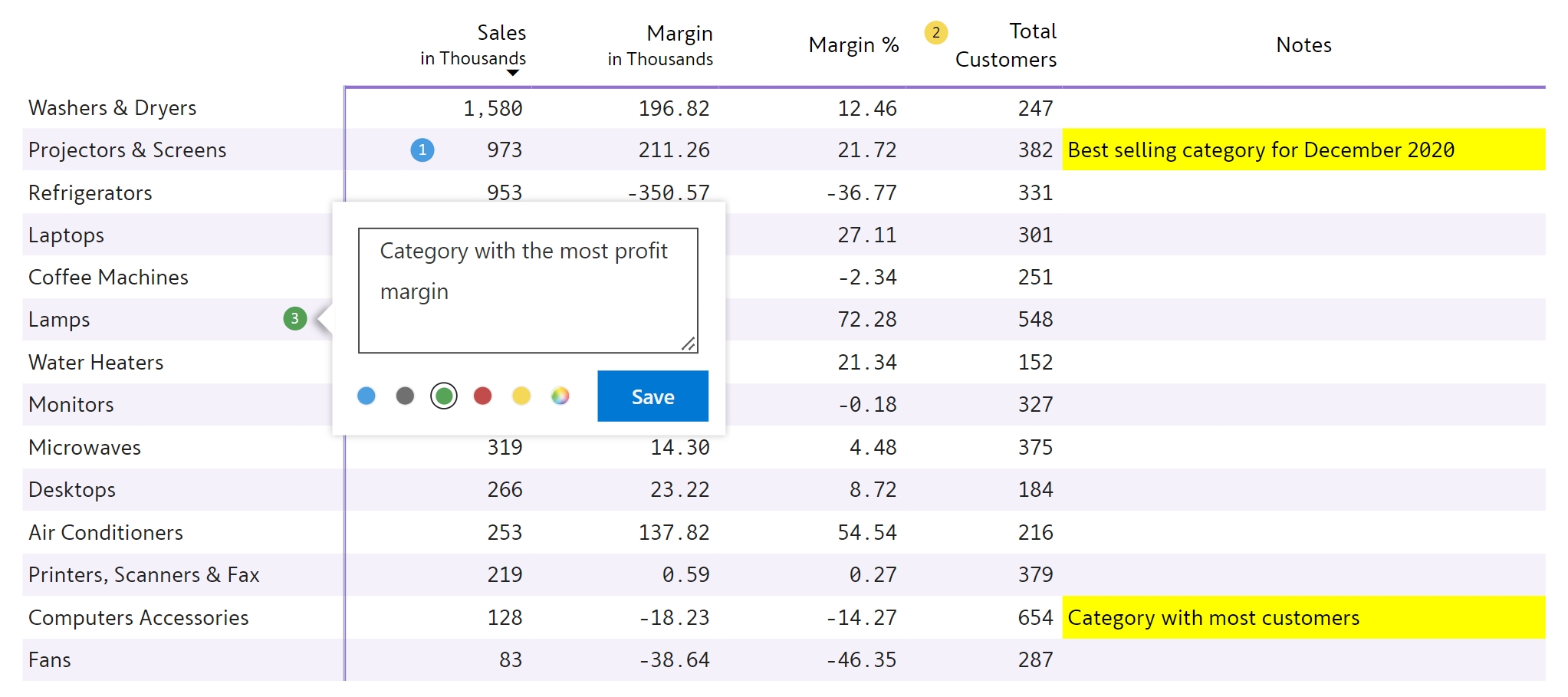

2.2. Enter the note. Let's now change the color of the notes indicator. Click on a different color from the bottom of the side panel.

Changing the indicator color

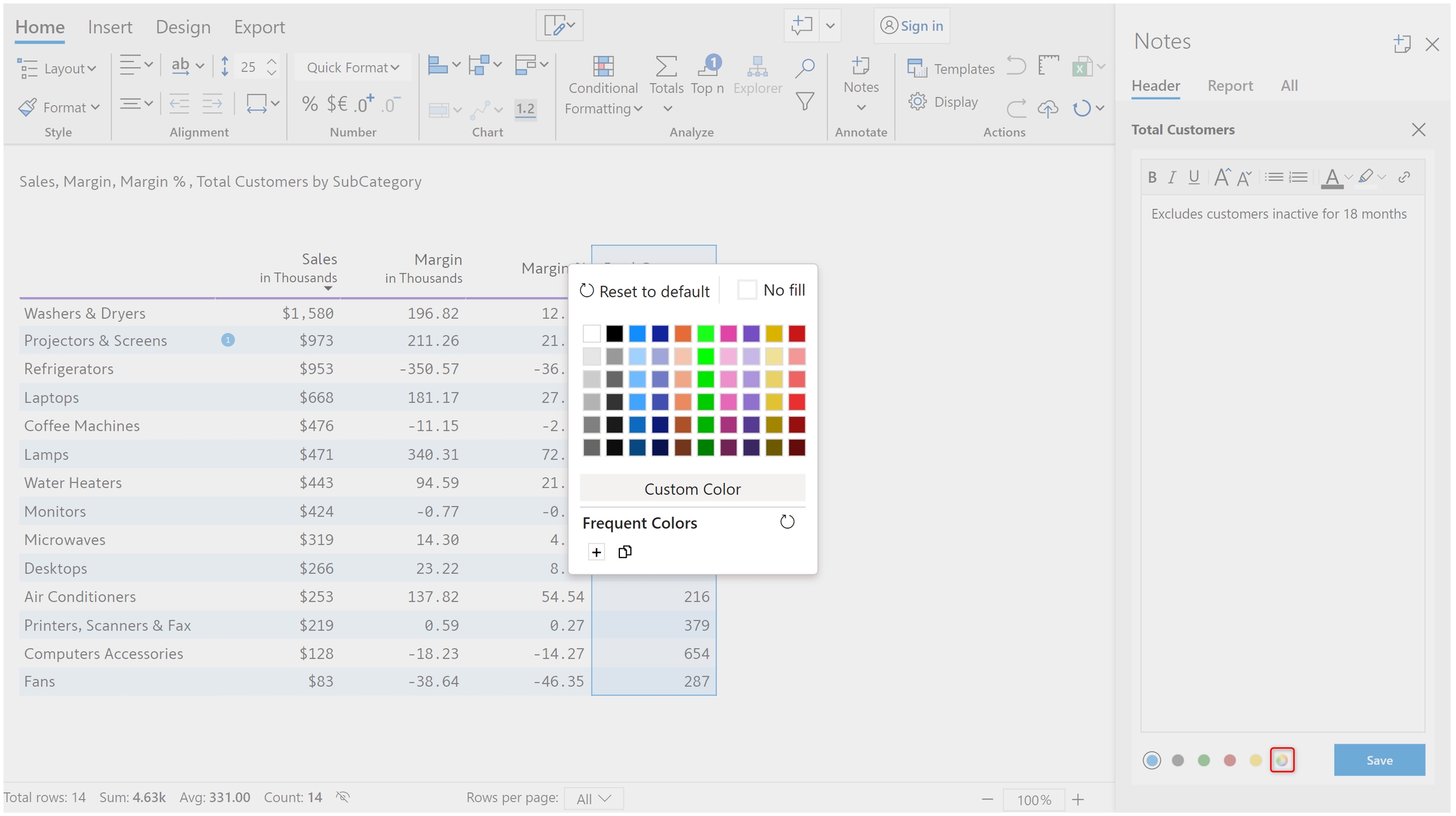

2.3. You also have the option to select a custom color for the indicator. Click on the multicolored icon as highlighted in the image.

Custom color for note indicator

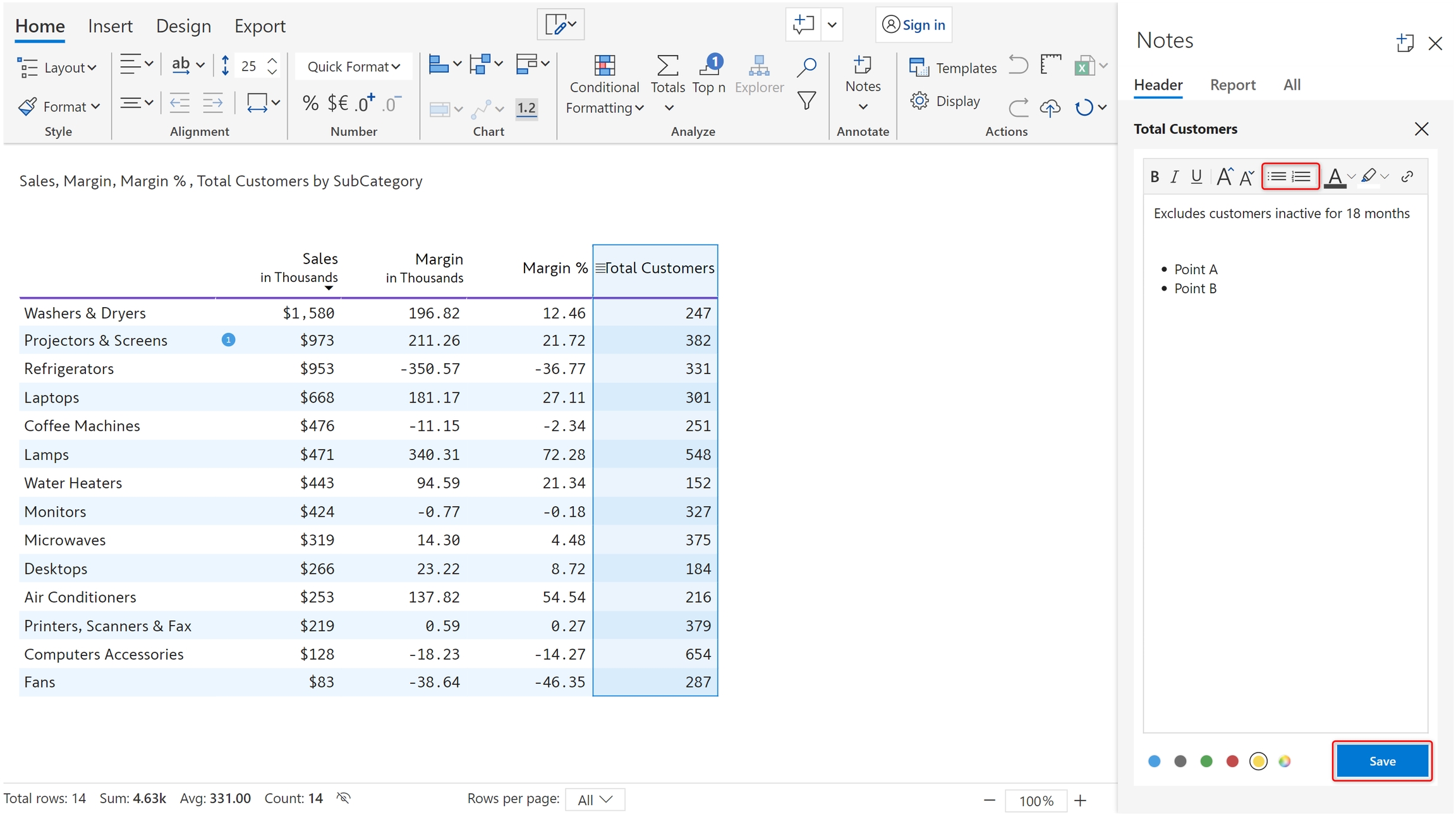

2.4. In addition to the formatting options available for cell-level notes, you also have numbered/bulleted lists. Click Save.

Adding numbered/bulleted lists

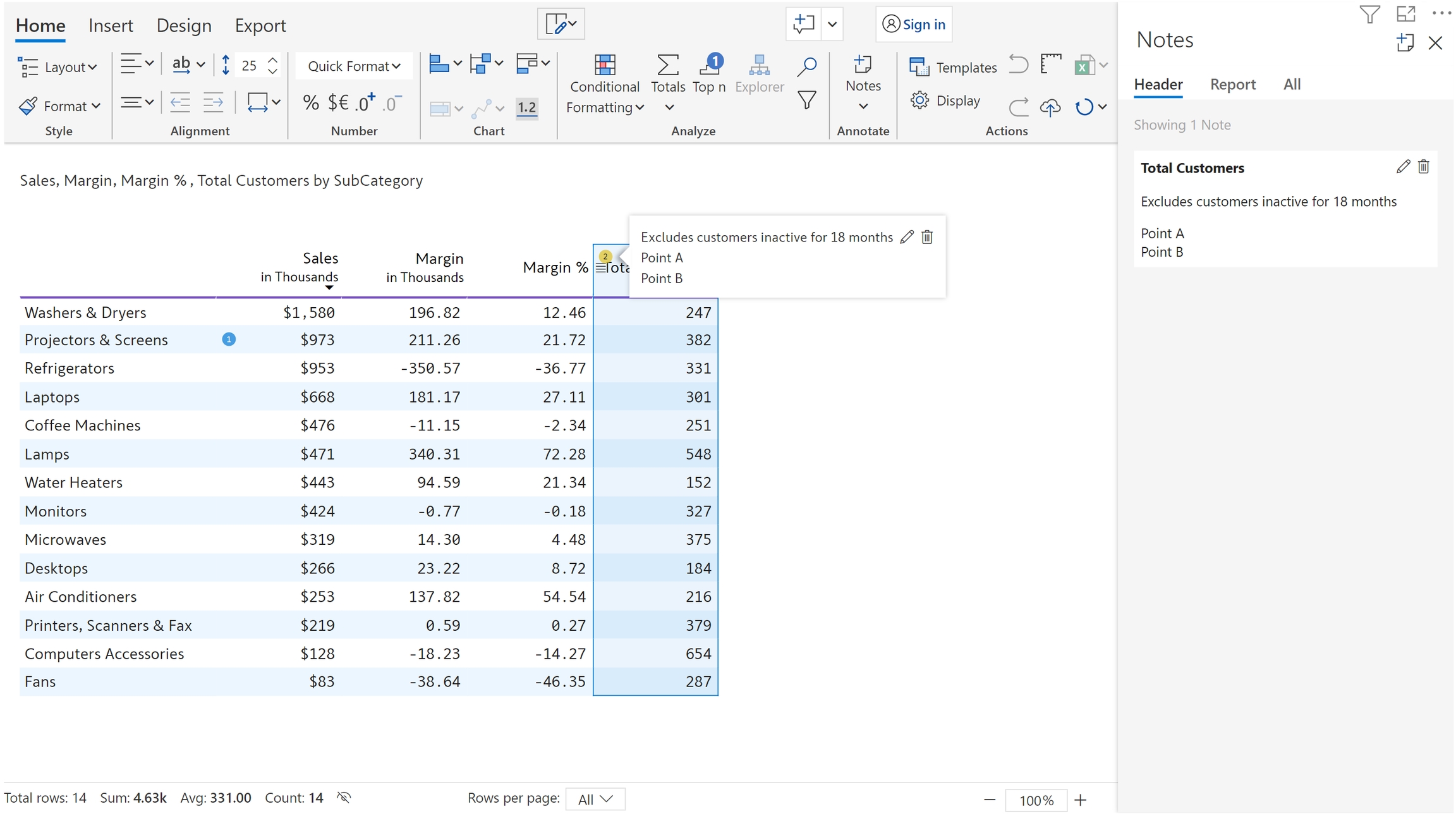

2.5. Header-level notes are visible both in the side panel and on hover.

Header-level notes

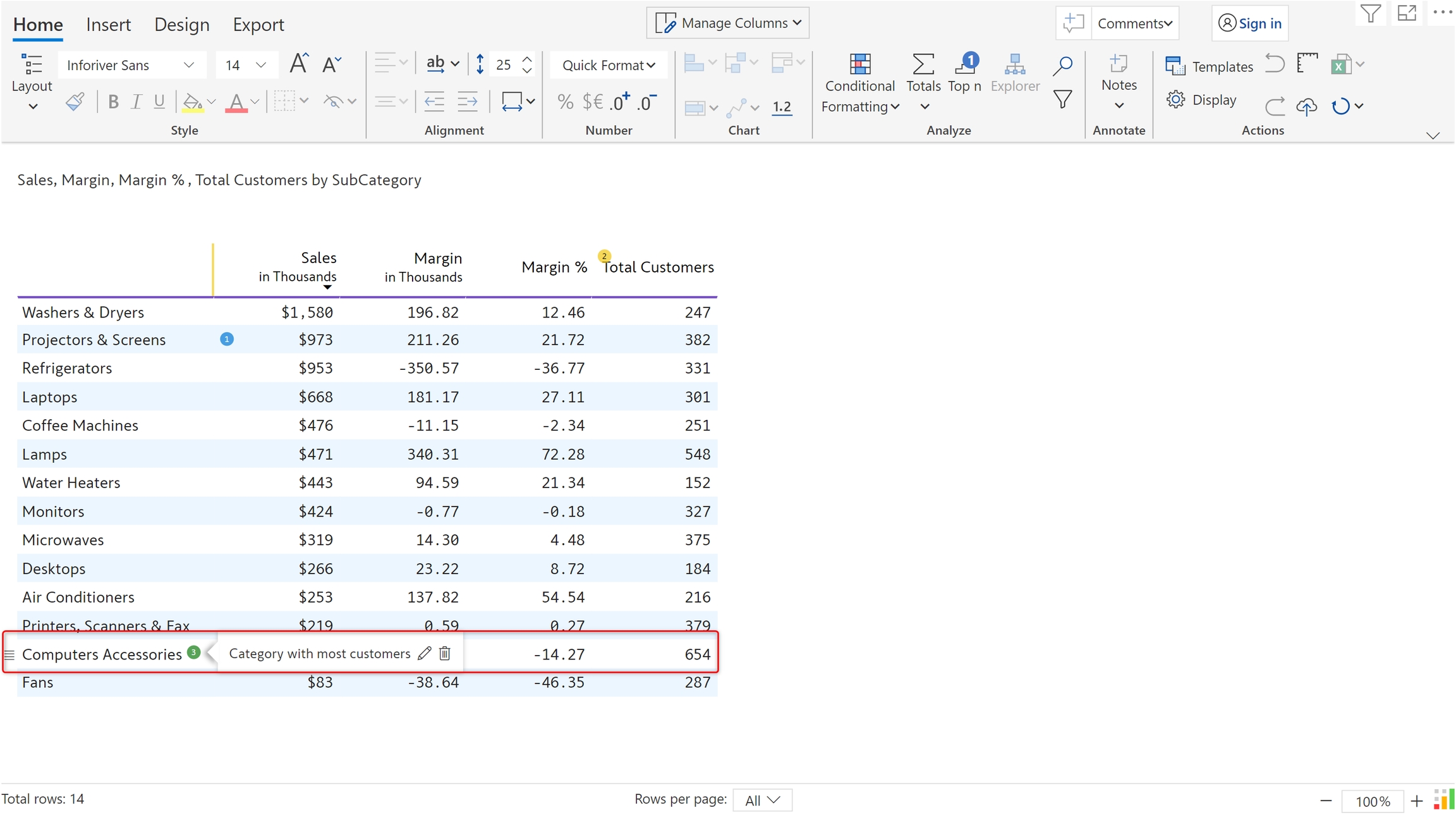

2.6. Similarly, select a row and add a note. You can edit/delete the note using the corresponding icons on the right.

Row category note

3. Report-level notes

With Inforiver, you can also add notes and explanations at the report level, as shown below.

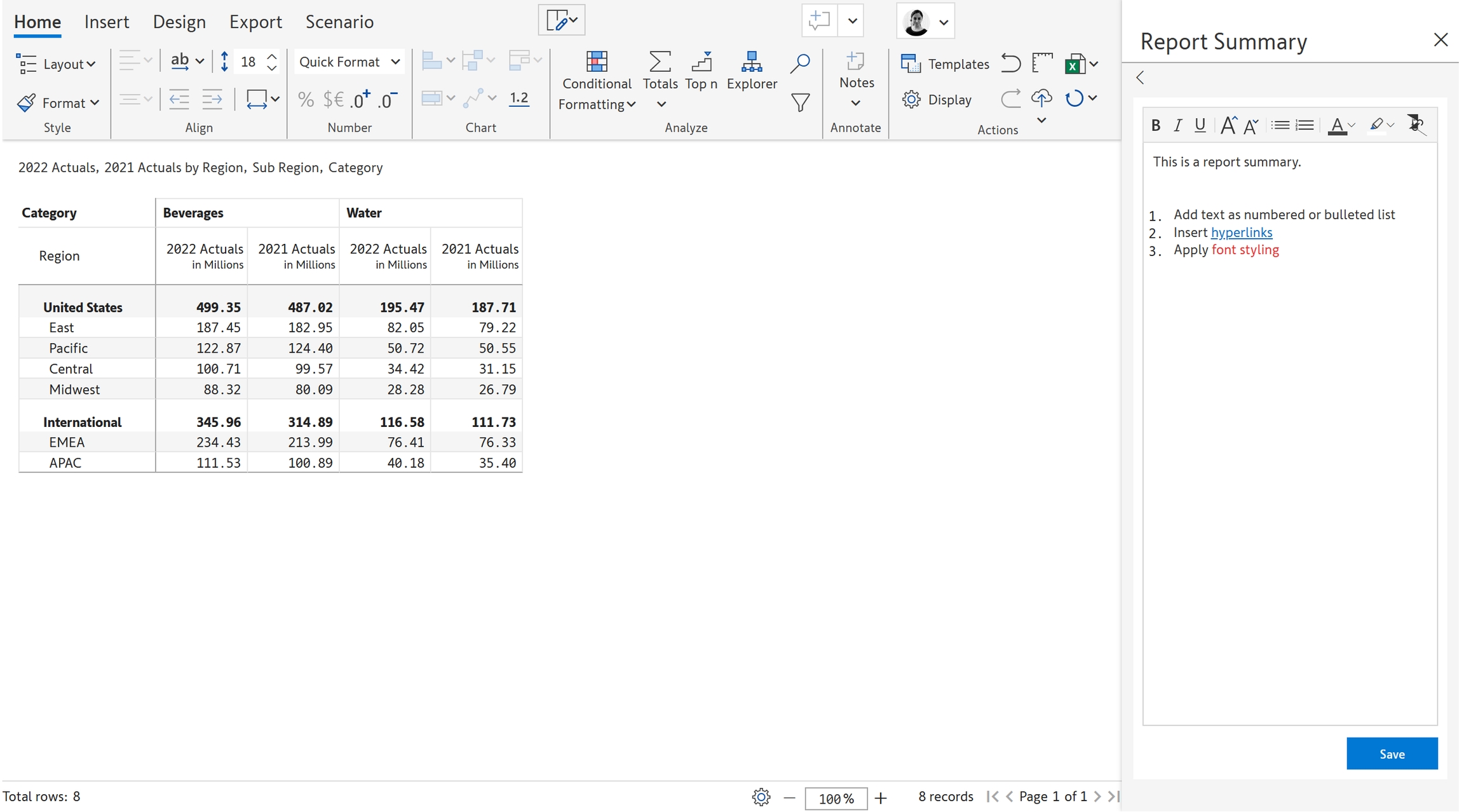

3.1. Click on Notes and then Report Summary. In the Report Summary side panel, enter the note.

Report level note

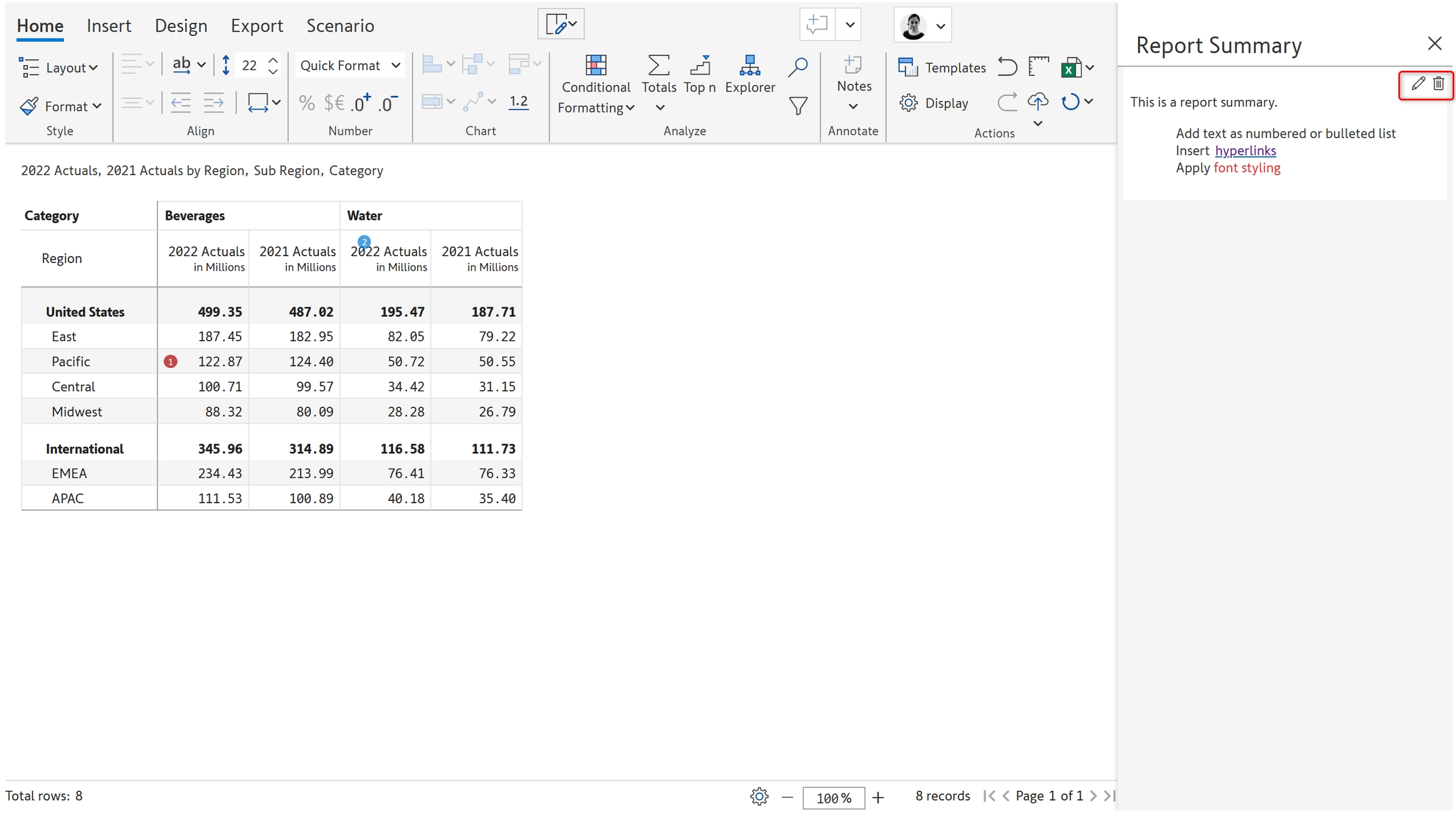

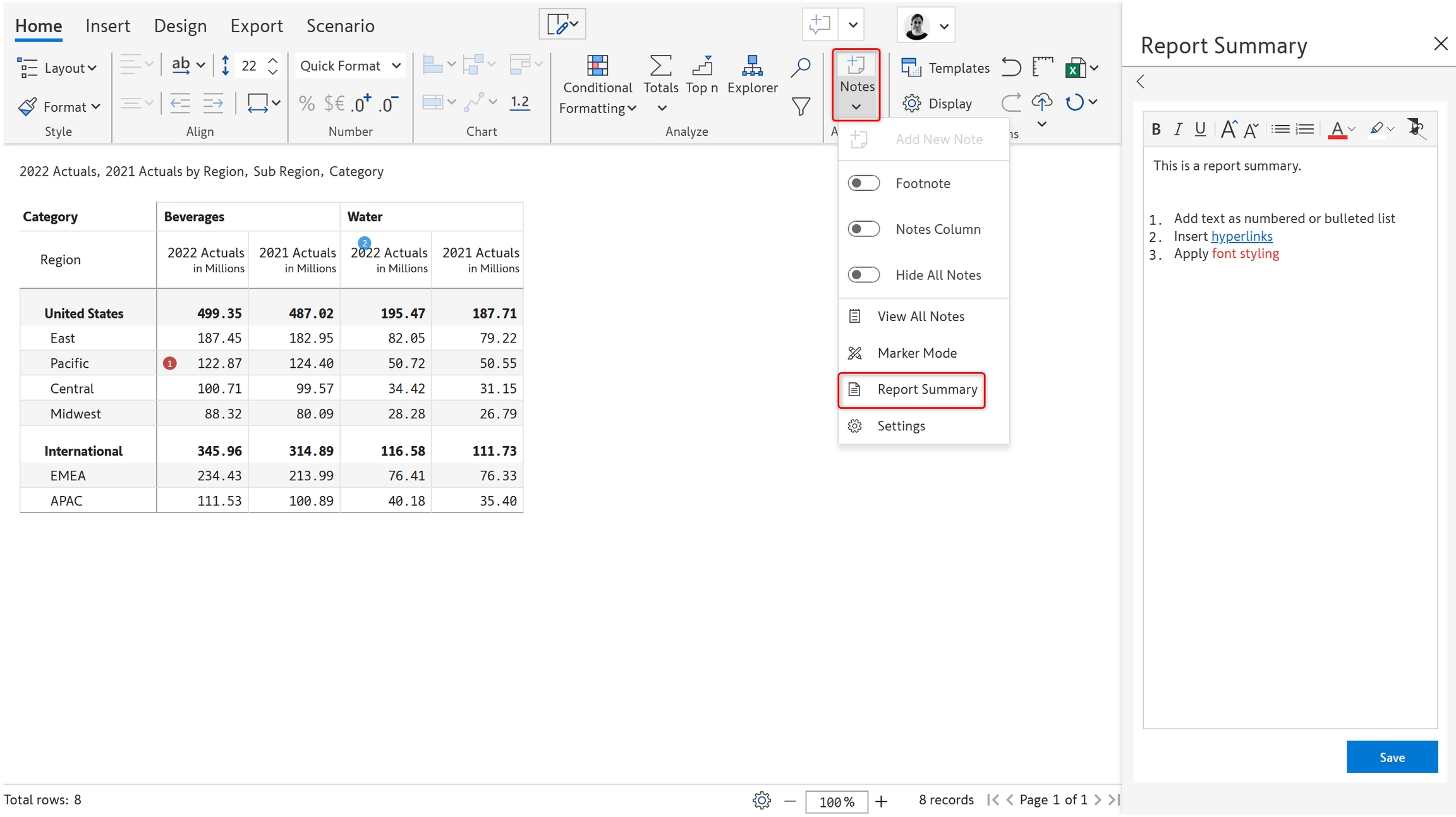

3.2. On clicking Save, the note gets displayed in the side panel. You can edit/delete the note by clicking on the corresponding icon in the top right.

Report level notes added

4. Footnotes

Notes can be viewed as footnotes, are an integral part of financial statements, and provide supplementary information such as the accounting method used or an explanation of important financial results.

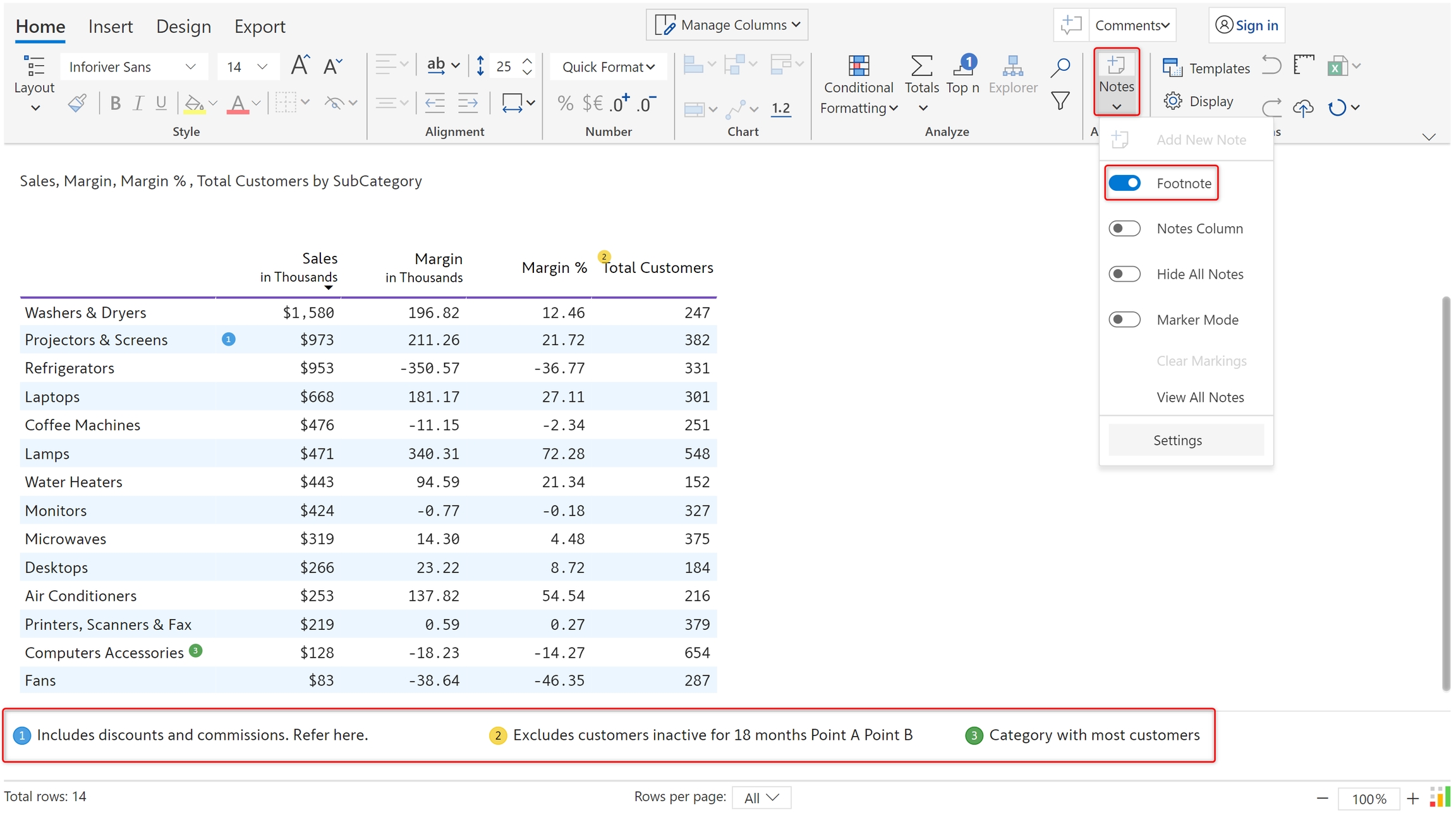

To enable footnotes, in the Notes dropdown, turn on the Footnote toggle. You can see the footnotes as highlighted.

Footnotes

5. Notes column

Row-level notes can be added in a separate column.

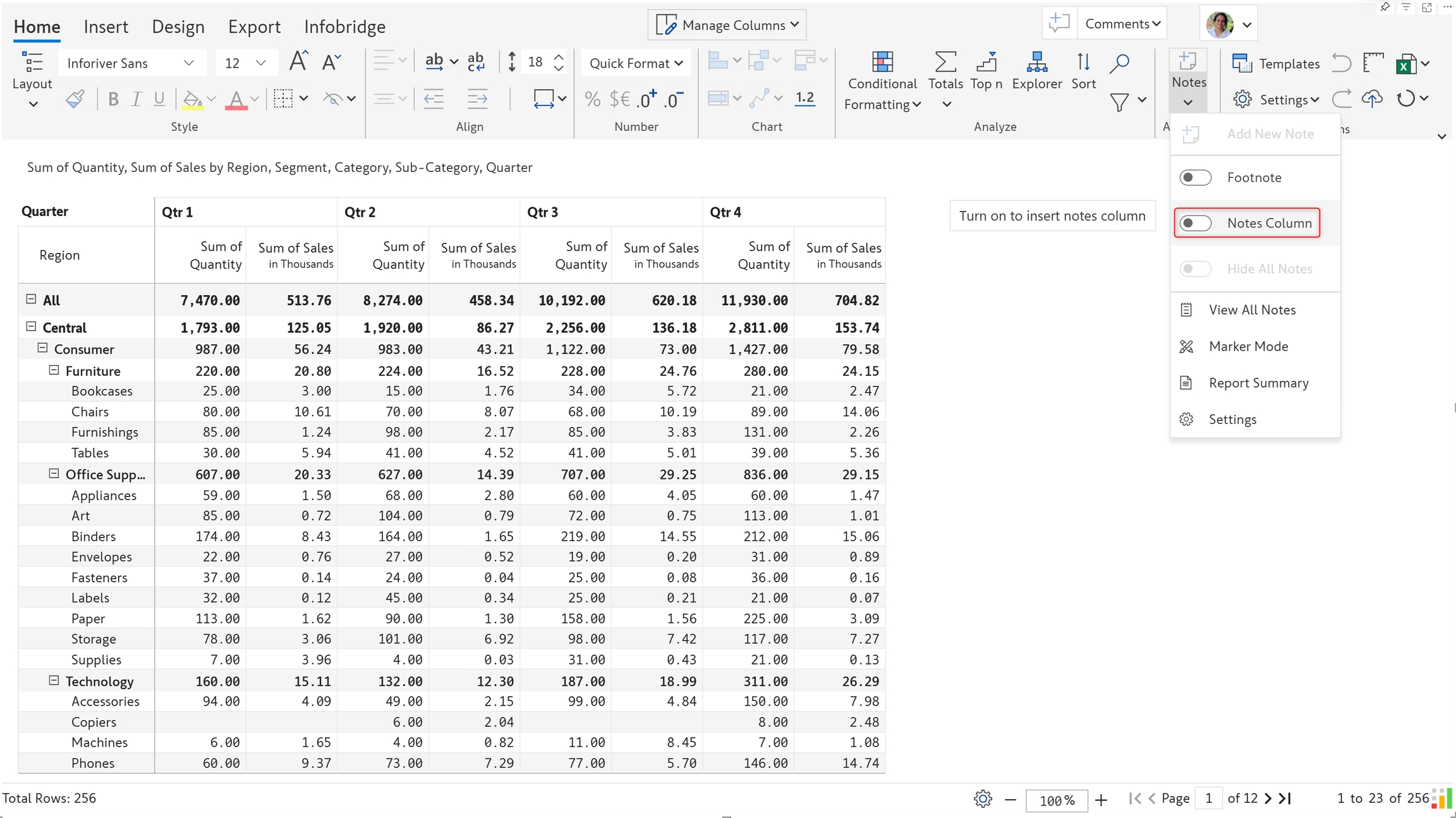

5.1. Enable the Notes Column toggle from the Notes dropdown menu.

Notes column option

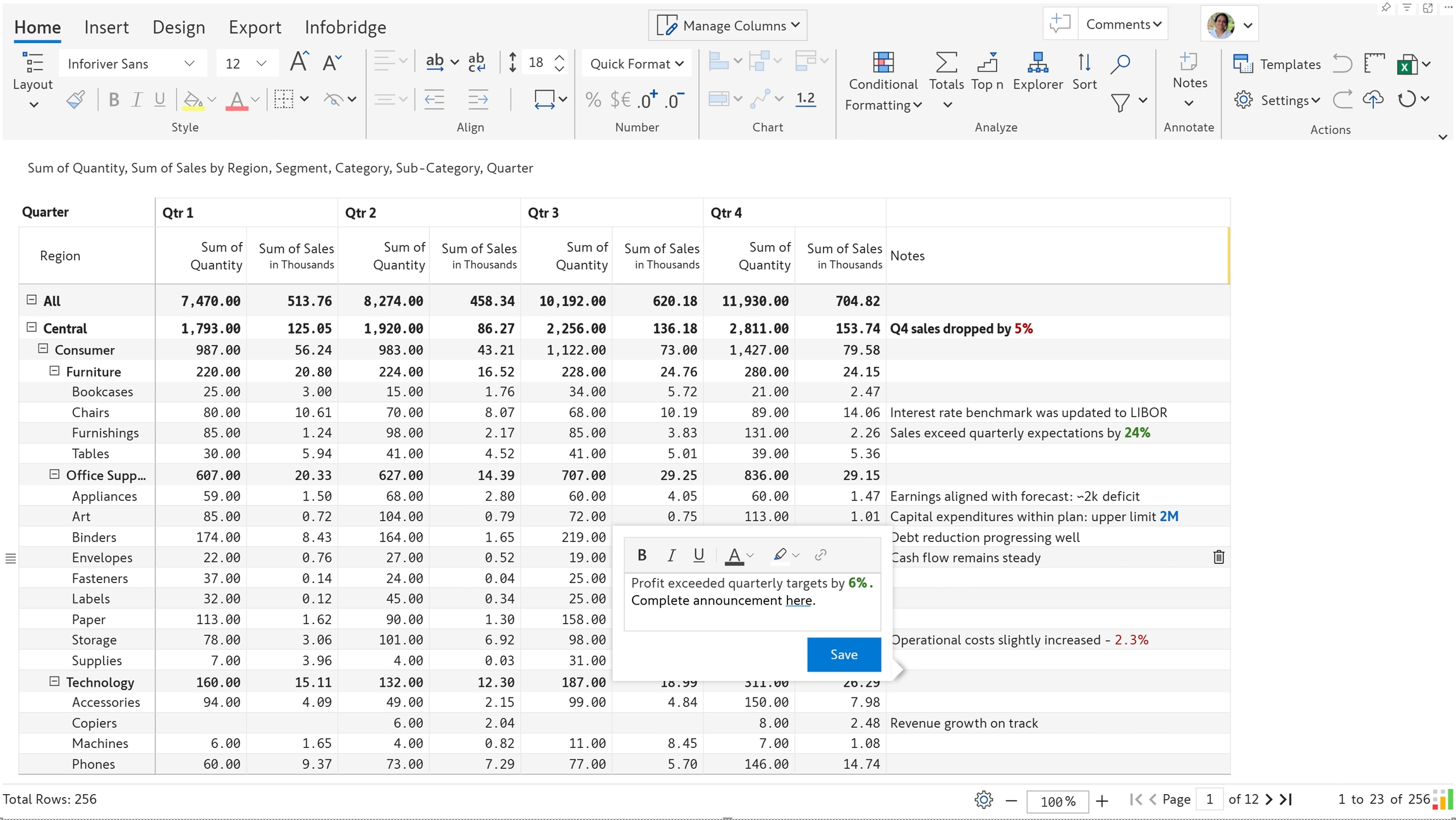

5.2. A notes column gets added. Double-click on a cell and start typing in the rich text editor. You can apply formatting such as bold, italic, underline, font/background color, and hyperlinks.

Adding notes

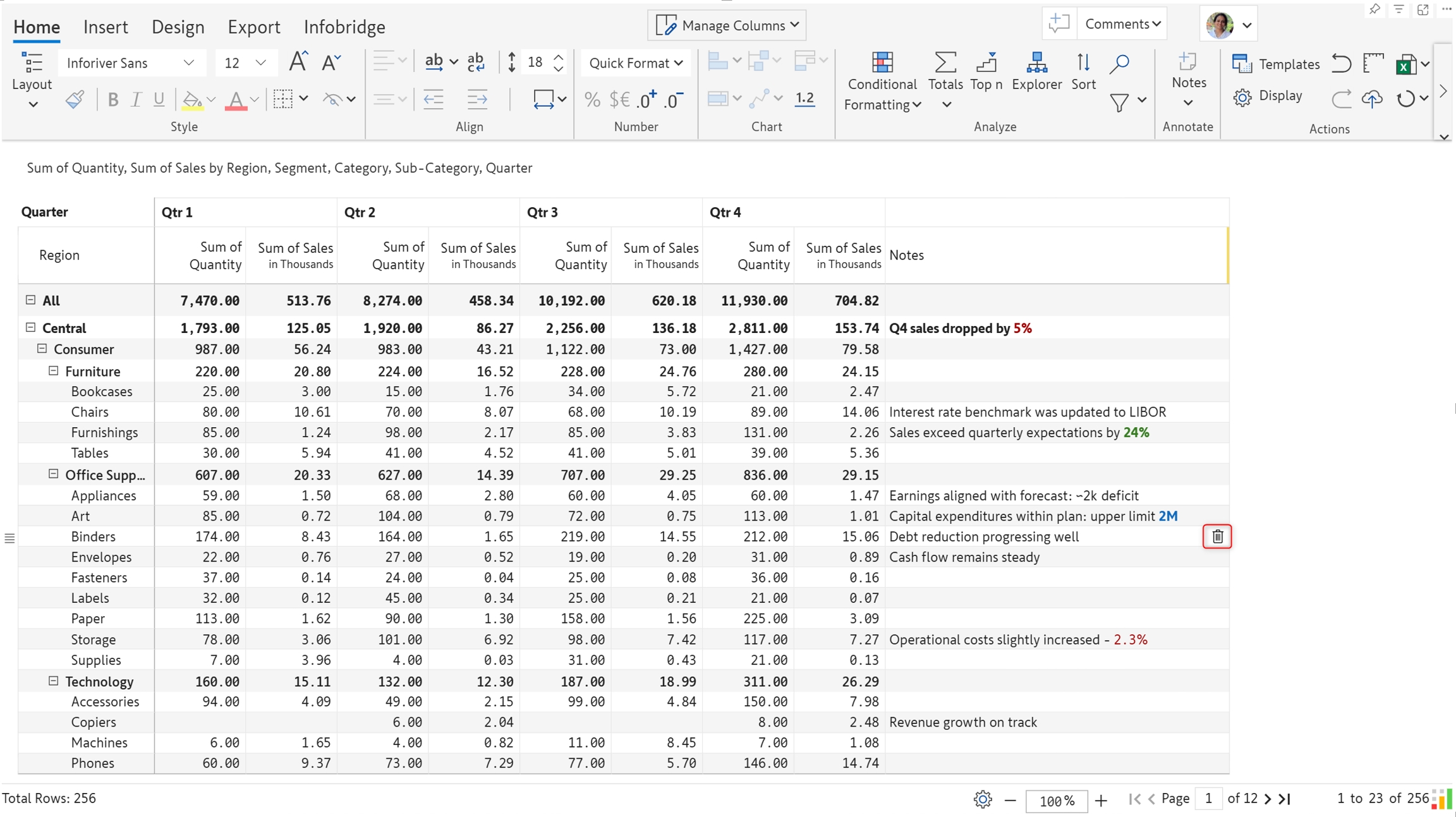

5.3. You can delete a particular note in the Notes column by selecting it and clicking the icon.

Deleting notes

6. Hide notes

6.1. To hide the footnotes, turn off the footnote toggle.

6.2. To hide the notes column, turn off the notes column toggle.

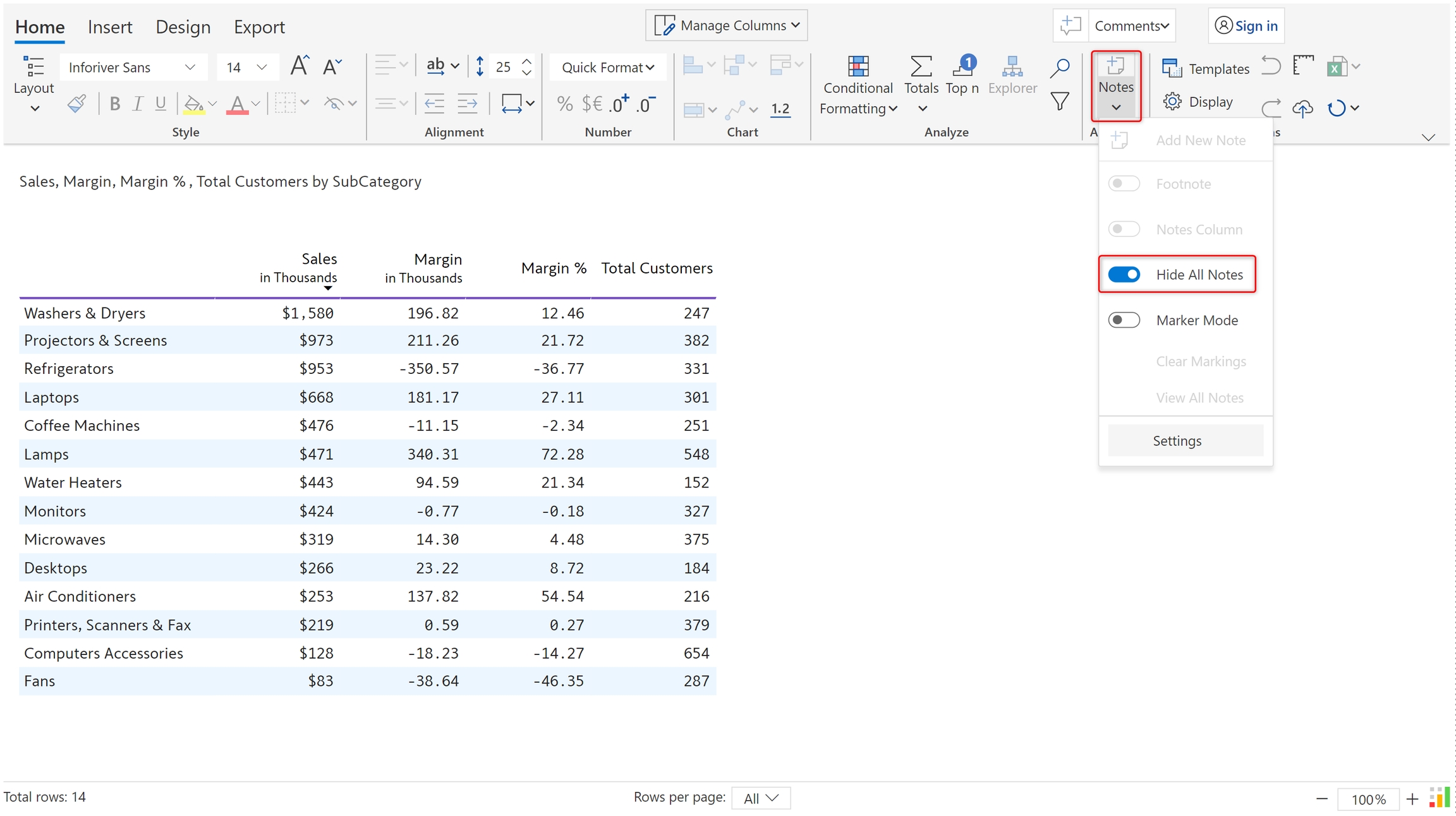

6.3. To hide the cell, header, and report-level notes, turn on the Hide all notes toggle. Note that by using this option, all the notes, including the footnotes and notes column, are hidden.

Hiding all notes

7. Settings

You can customize the notes indicator, position, footnote height, and more.

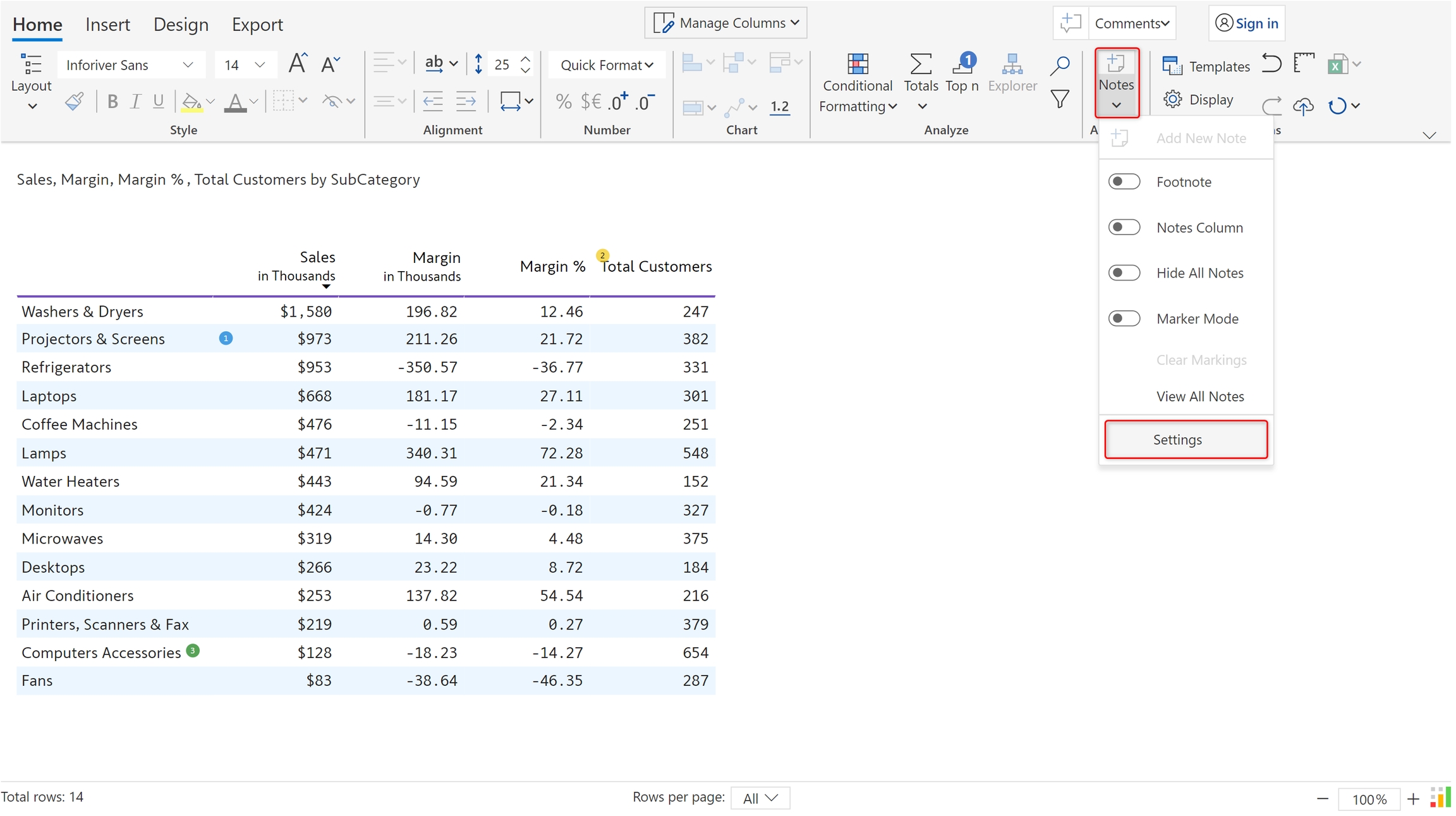

7.1. Click on Settings from the Notes dropdown.

Customization options for notes

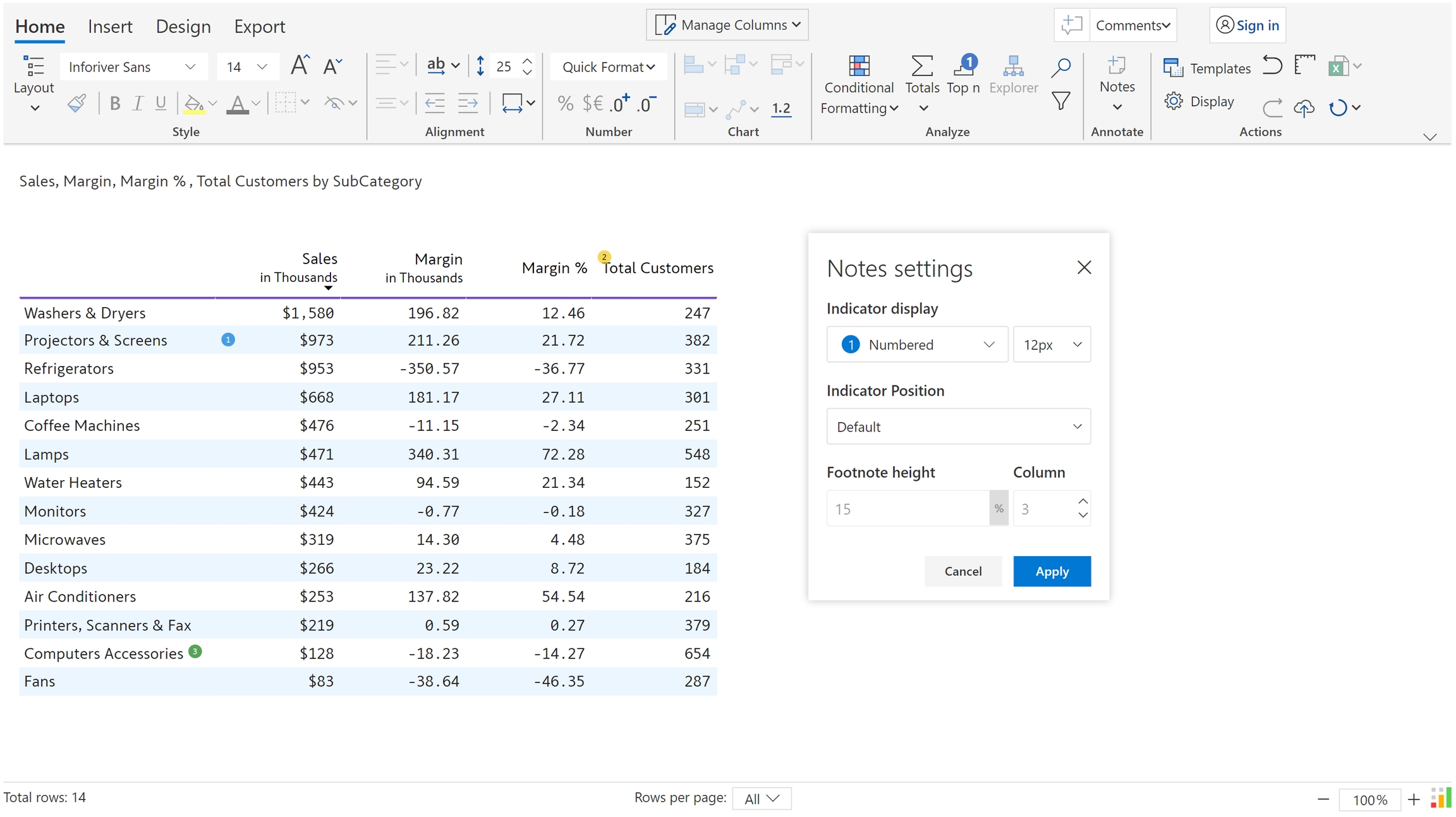

7.2. A dialog box opens. The default selections are shown in the image.

Default settings for notes

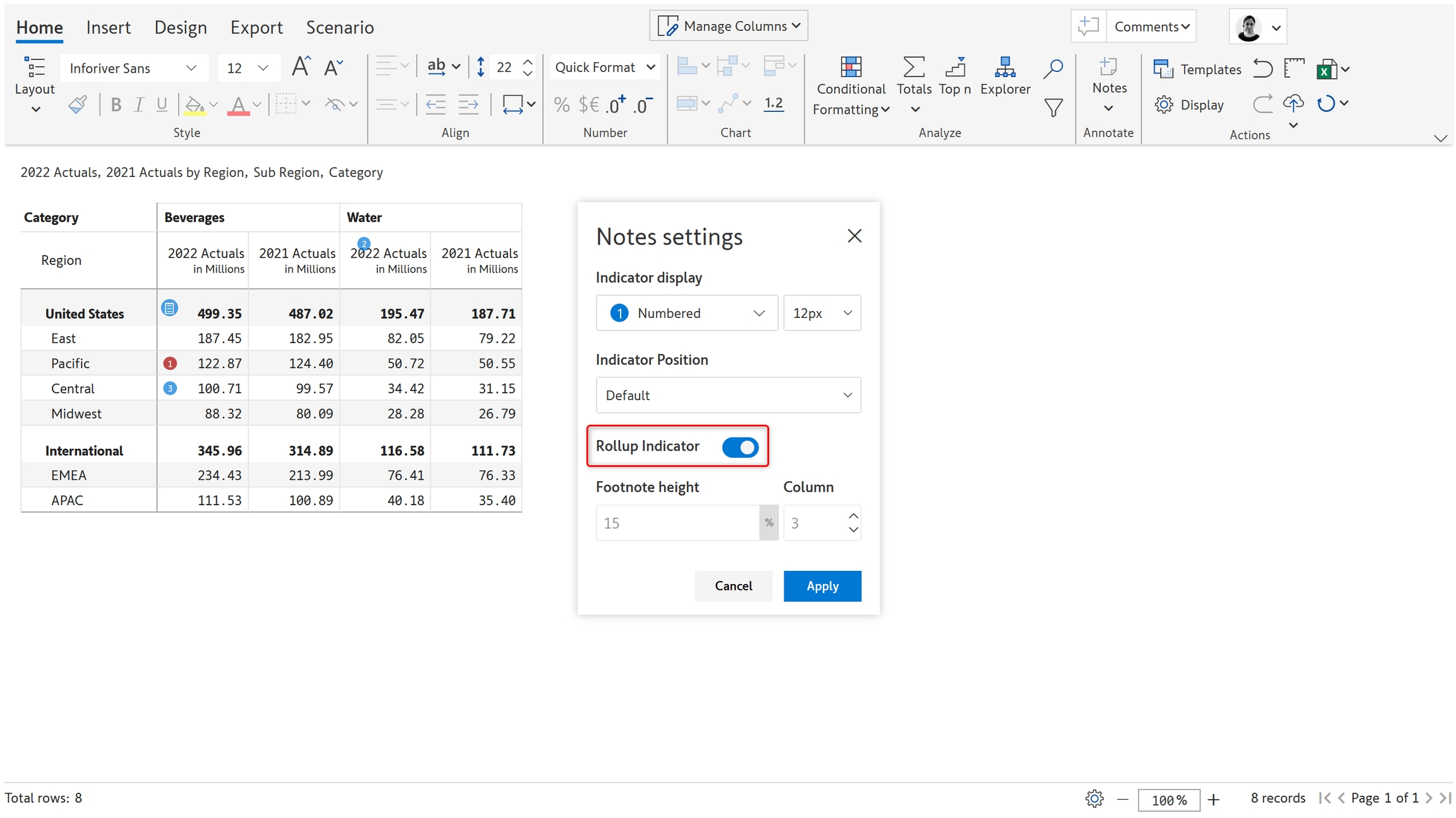

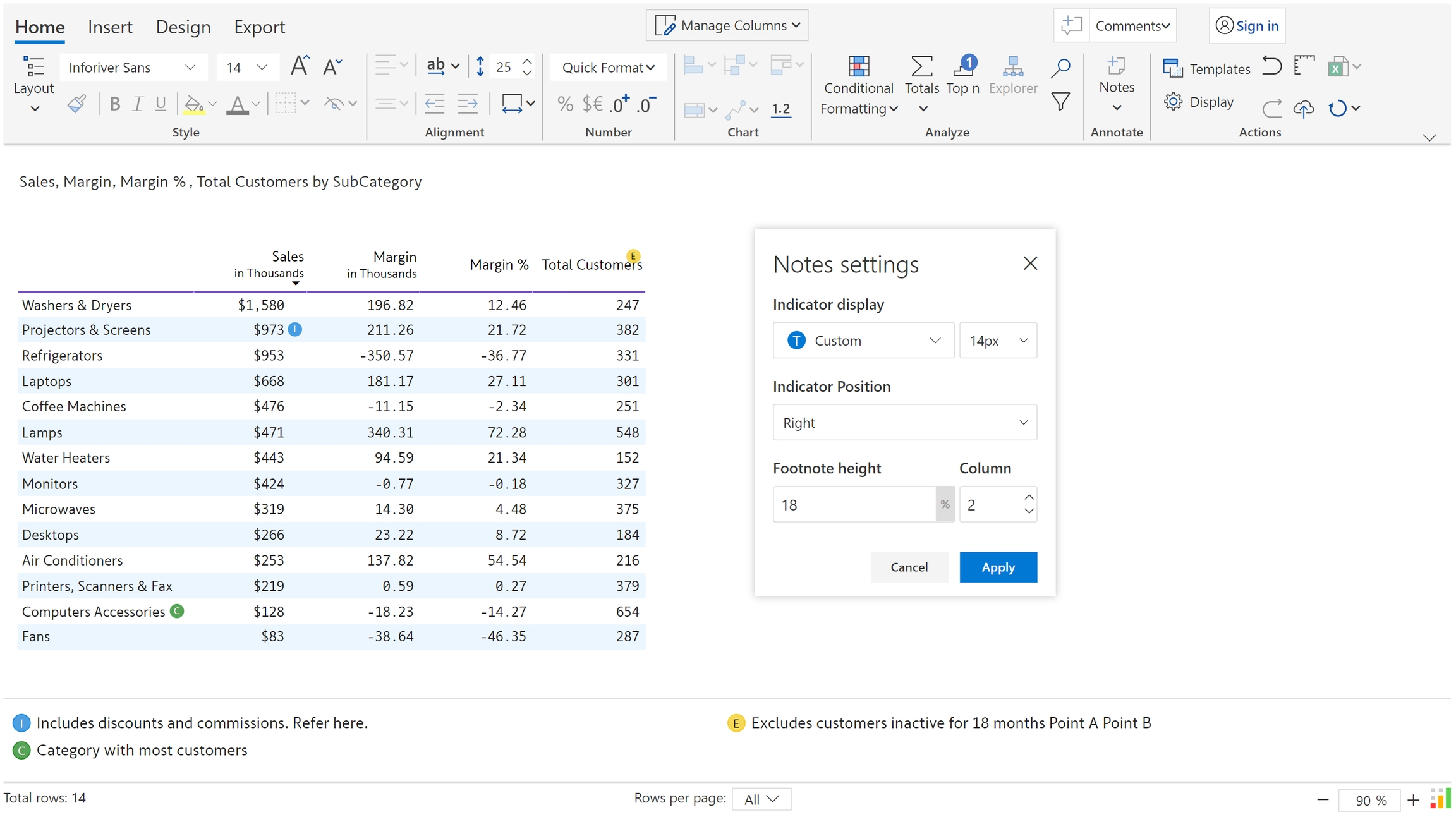

7.3. There are a number of indicator types, such as numbered, lettered, arrow, etc. Indicators can also be resized. By default, indicators are to the left of the cell. We have made changes to the default settings, and the result is shown in the image.

Changes made to the indicators and footnotes

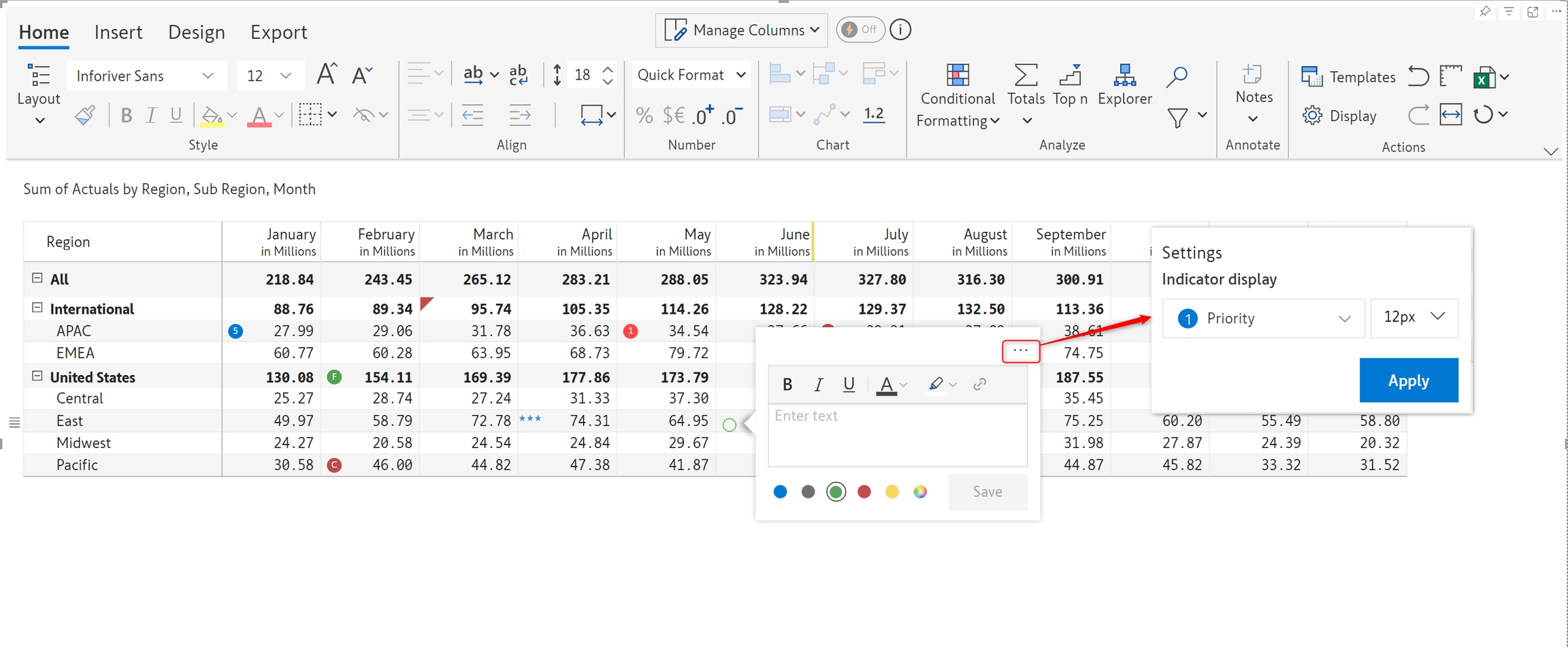

The notes indicator can be set at the report level (as shown above), in which case all notes in a report would have the same indicator. You can set individual indicators for each note as well.

Notes Indicator
Notes Indicator

8. Marker mode

Marker Mode can be used to highlight important observations during presentations. Markings are temporary and can be cleared.

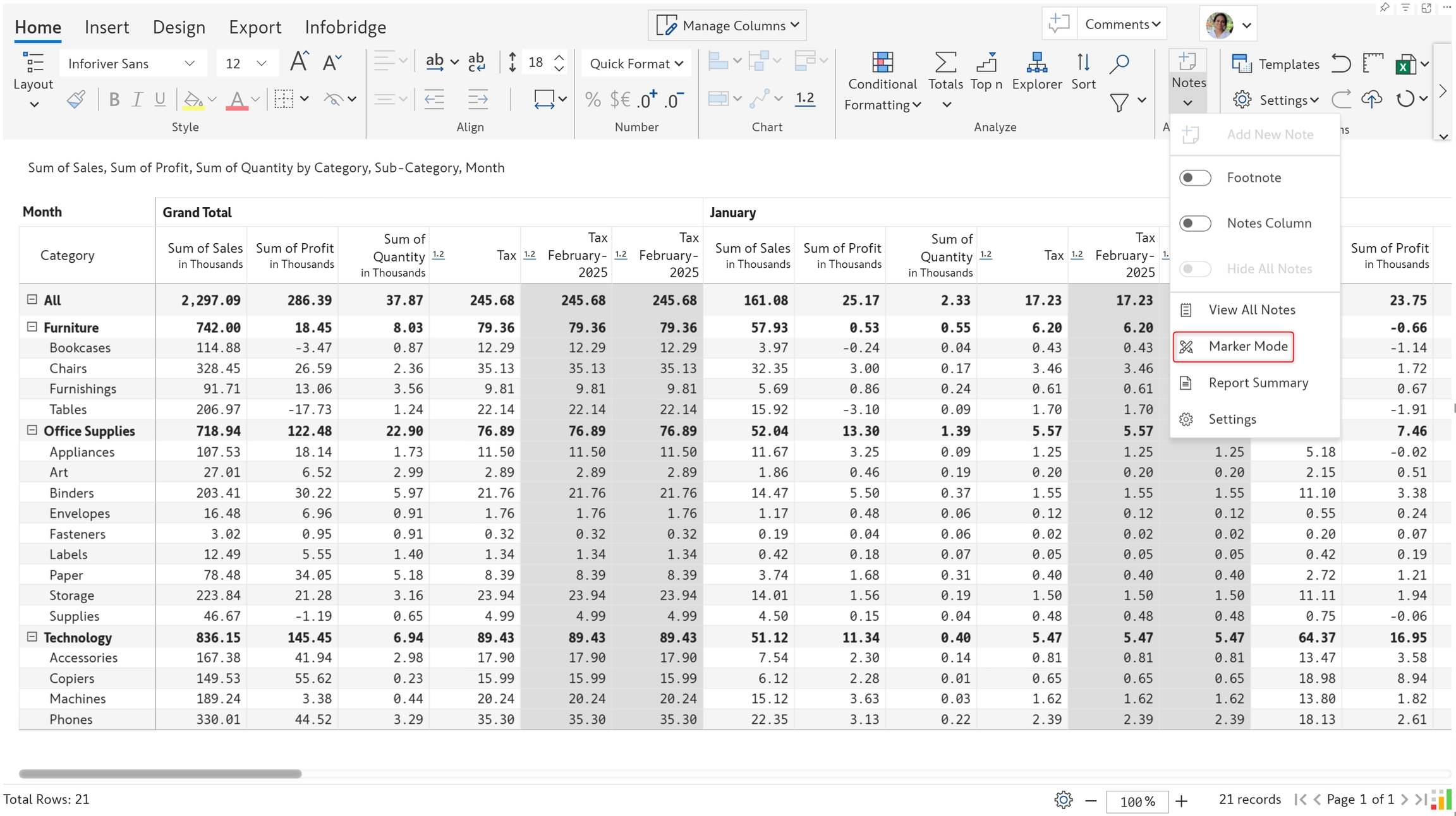

8.1. In the Notes dropdown, click the Marker Mode option.

Marker mode option

8.2. A marker icon is enabled on the canvas.

Marker mode enabled

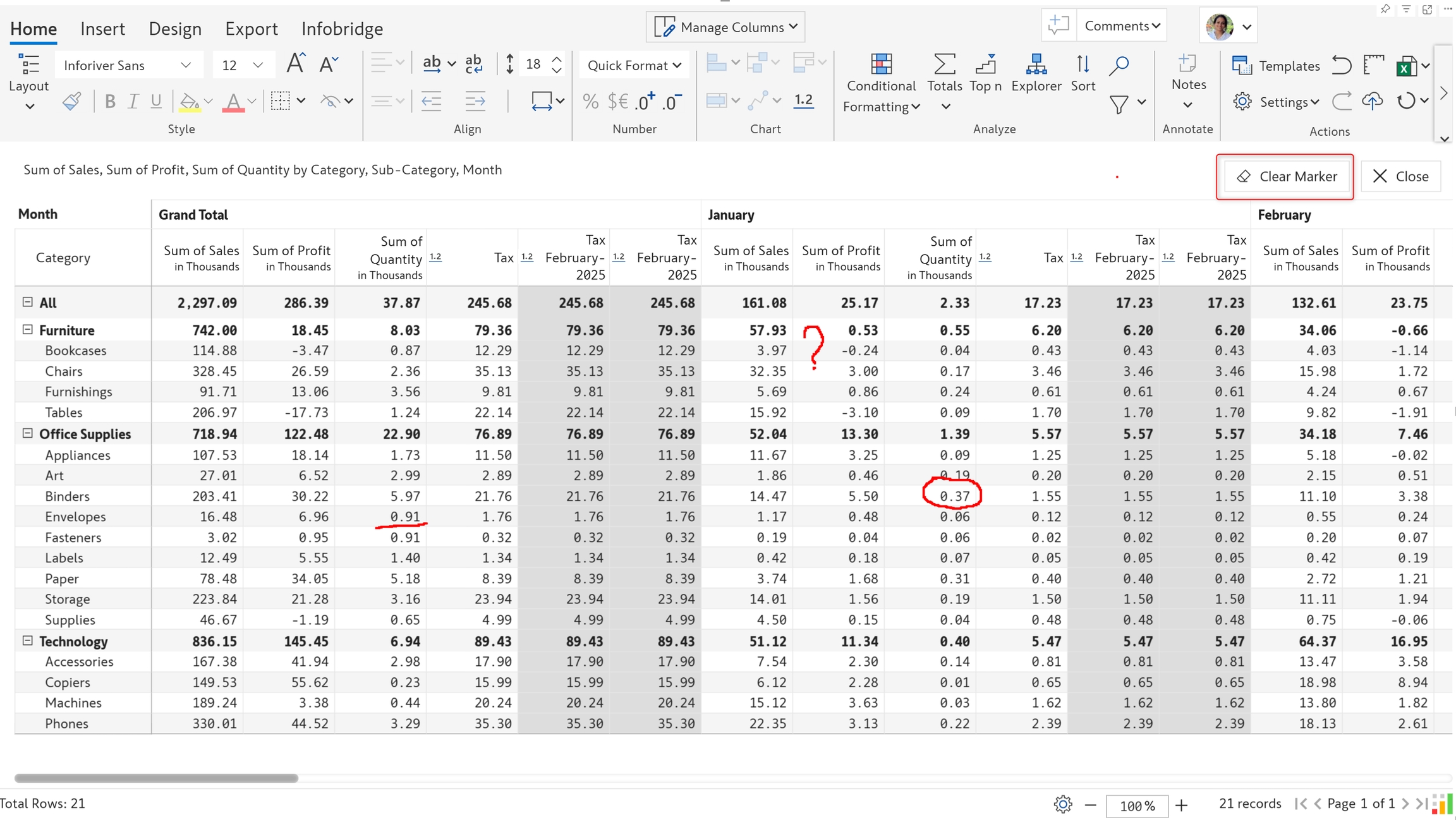

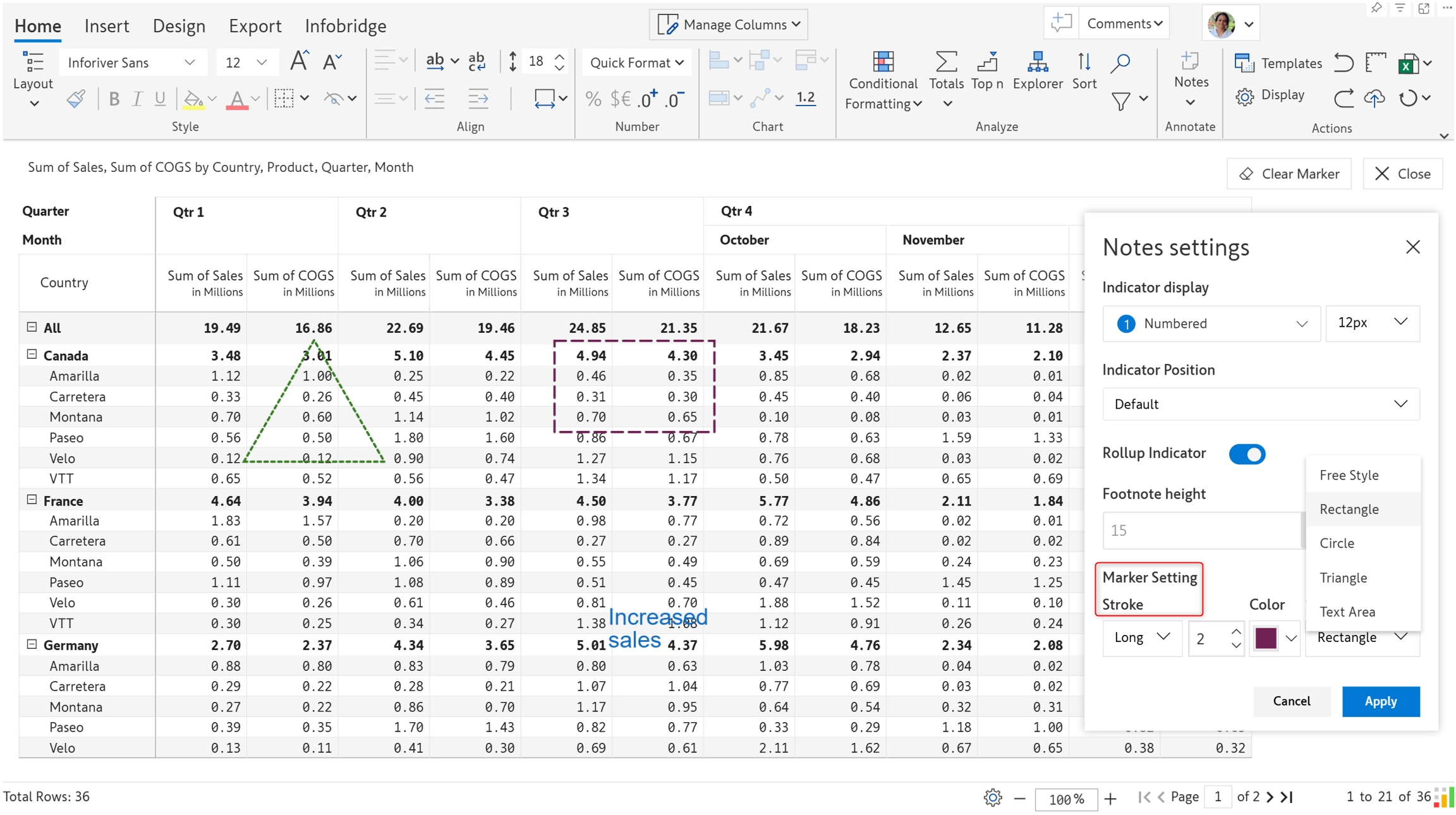

8.3. Sample freehand markings are shown in the image below.

Sample markings in the report

8.4. Markings can be erased using the Clear Marker option. Switching to another tab also results in the markings getting erased.

Clearing markings

In the next section, we'll look at Inforiver's data-level commentary capability.
