  1. Quick charts

Boxplots

PreviousBubble chartsNextHistogram

Last updated 9 months ago

  • Axis parameter - Date: Year, Month

  • Values parameter - Upper Quartile, Lower Quartile, Median, Whisker Max, Whisker Min

  • Chart type - Boxplot

  • .Description - Boxplots are a standardized way of displaying the distribution of data based on a five-number summary: minimum, first quartile (Q1), median (Q2), third quartile (Q3), and maximum. To render a boxplot, you need to add the lower quartile, median, and upper quartile measures.

When the inter-quartile ranges are pre-calculated i.e. the 5-number summary is already calculated, you can directly pass the values to render the boxplot.

1. Pivot data settings for boxplots

1.1. Boxplot auto sorting

Analytics+ automatically detects and assigns the lower/upper quartiles and the median and whisker values when this toggle is enabled. You can also manually select and assign the values in the settings pane by disabling this option.

2. Boxplot canvas settings

2.1. Lower Quartile/ Upper Quartile/ Median/ Whisker Min/ Whisker Max

These dropdowns are enabled only when the Boxplot auto-sorting toggle is turned off. You can select the quartile, median, and whisker values from the dropdown menus.

You can disable the Median and Whisker toggles if you do not need to plot them.

2.2. Box format

Set the color and style (Solid, Outlined, Hatched) of the box.

2.3. Whisker format

You can set the style, thickness, and color of the whiskers.

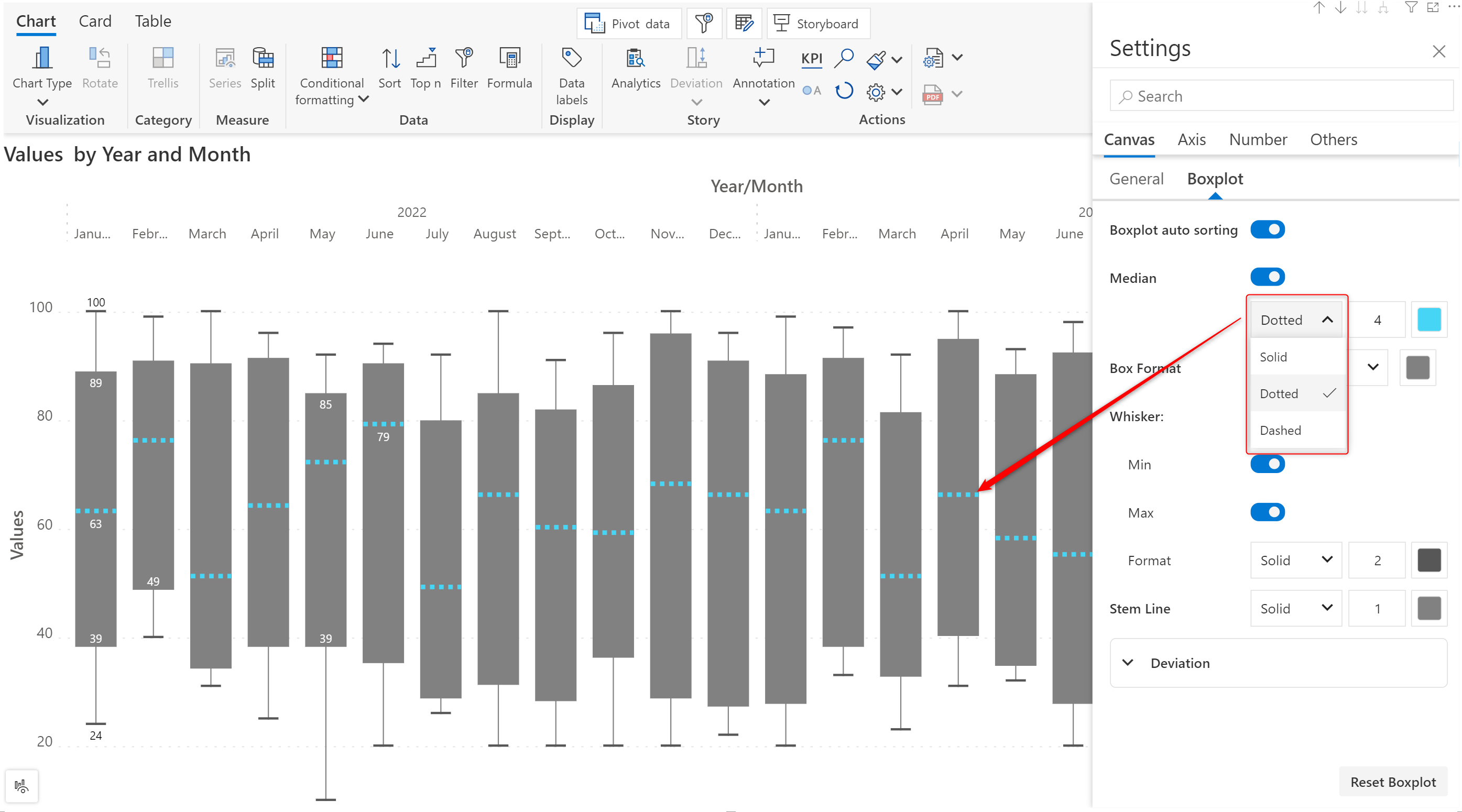

2.4. Median format

Set the style, thickness, and color of the median line.

2.5. Stem line format

Set the style, thickness, and color of the stem lines that connect the boxes to the whiskers.

3. Conditional formatting for boxplots

When you select the Charts option from the Impacts on dropdown, you will be able to highlight the boxes based on the quartiles/median/whisker values.

  • Axis parameter - Date: Year, Month

  • Values parameter - Store 1, Store 2 - Store 10 (Sales data across 10 stores)

  • Chart type - Boxplot

  • .Description - Analytics+ accepts pre-calculated quartiles or can calculate the inter-quartile ranges based on the input values provided. In this case, we have provided raw data values and Analytics+ dynamically calculates the interquartile ranges for the boxplots.

For dynamic boxplots, the Boxplot auto sorting option needs to be enabled.

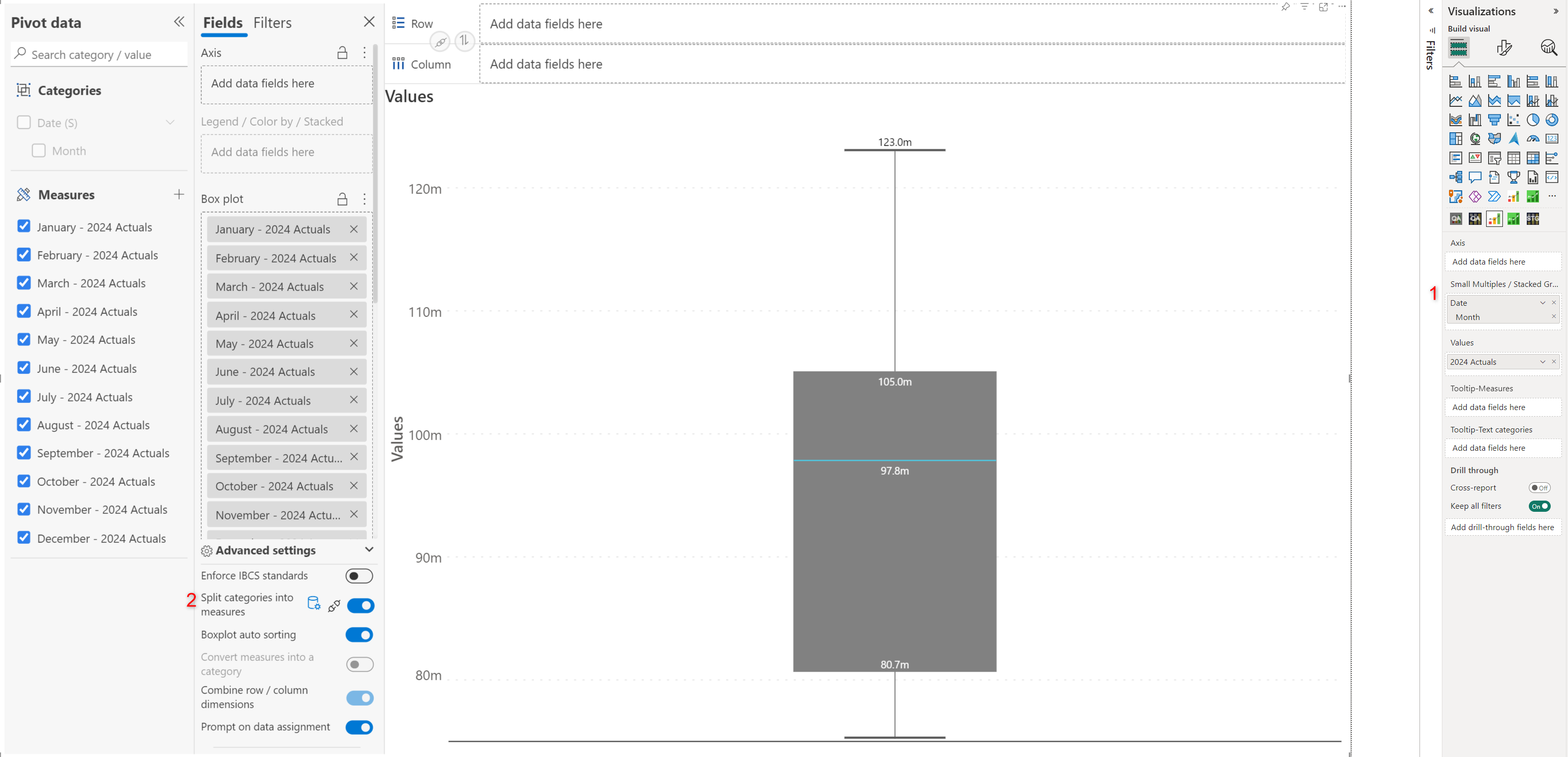

You can render a boxplot with a single measure by following the steps outlined:

STEP 1: Add the measure. Add the category dimension to the Small Multiples parameter instead of the Axis parameter.

STEP 2: In the pivot data window, enable the Split categories into measures option.

STEP 3: Select the Boxplot chart from the Chart Type dropdown.

  • Axis parameter - Date: Month

  • Values parameter - Upper Quartile, Upper Quartile PY, Lower Quartile, Lower Quartile PY, Median, Whisker Max, Whisker Min

  • Chart type - Boxplot

  • .Description - Overlapped boxplots can be used to compare previous year quartile values against current values. The upper and lower quartiles for the previous year should be assigned to the Box (Overlapped) data well in the pivot data window.

  • Axis parameter - Date: Month

  • Values parameter - Upper Quartile, Lower Quartile, Median, Whisker Max, Whisker Min,

  • Chart type - Boxplot

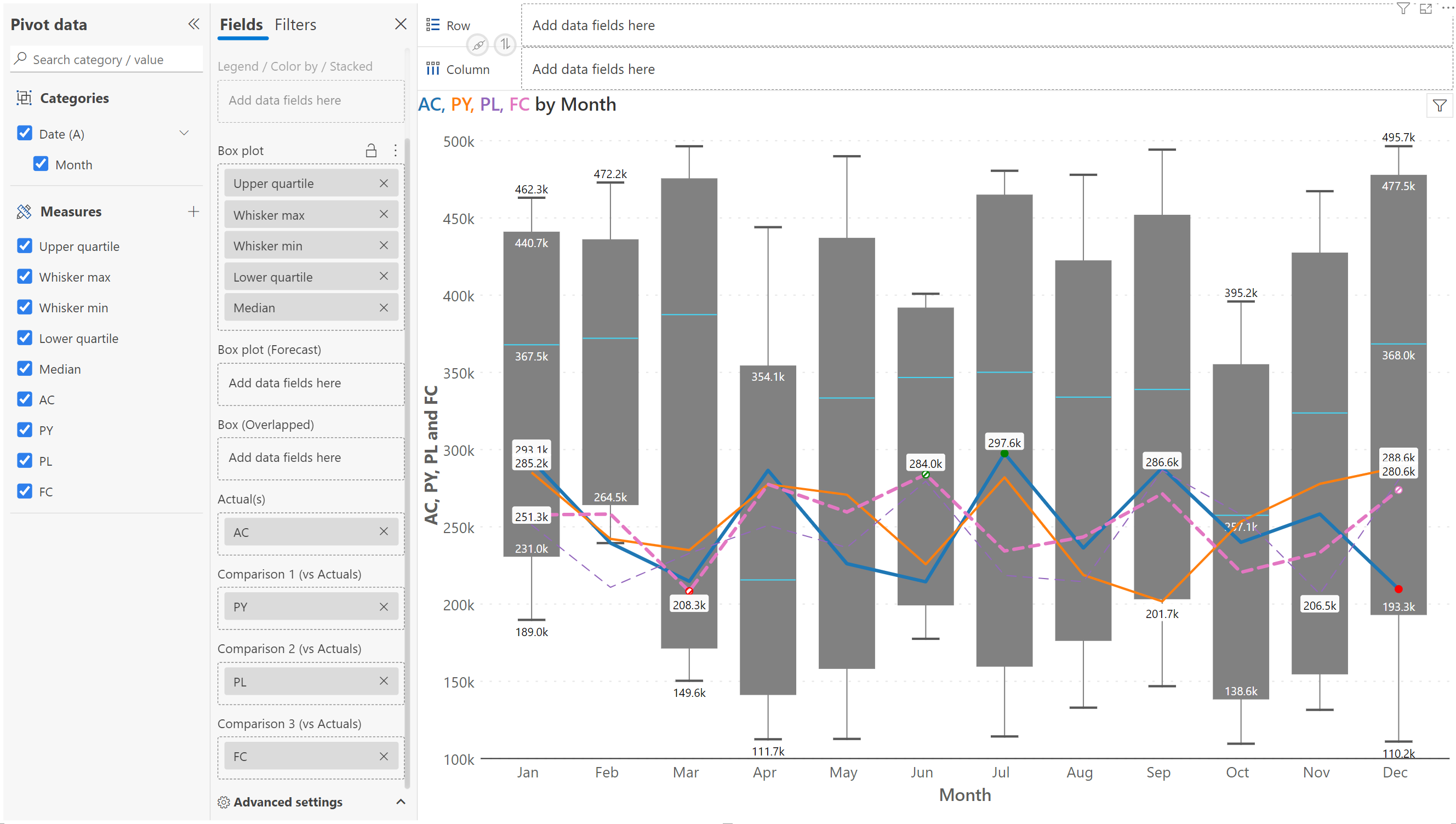

  • .Description - You can plot 4 additional measures in a boxplot by assigning them to the Actuals and Comparison data wells. The additional measures will be plotted as overlay line charts.

Displaying variances

You can plot the variances for the overlay measures by selecting Integrated Variance option from the Canvas Settings > Boxplot > Line Type dropdown.

Variance fill type

You can plot the variance fill as an area chart (shown above) or use lines.

Line variance

Use this option to determine the variance calculation.

  • Axis parameter - Date: Year, Quarter, Month

  • Values parameter - Upper Quartile AC, Upper Quartile FC, Lower Quartile AC, Lower Quartile FC, Median AC, Median FC, Whisker Max AC, Whisker Max FC, Whisker Min AC, Whisker Min FC

  • Chart type - Boxplot

  • .Description - You can also plot forecasts with boxplots by assigning the inter-quartile ranges to the Boxplot (Forecast) data well.

Note: To plot a visually appealing boxplot when axis hierarchies are involved, we recommend that the Axis > X-Axis > Category grouping option be disabled. The subtotal boxes will be hidden when this option is disabled.

Pre-calculated boxplot
Boxplot auto sorting
Quartile assignments
Median and whiskers disabled
Box styling
Whisker format
Median format
Stem line format
Conditional formatting for boxplots
Dynamic boxplot measure config
Single measure boxplot configuration
Overlapped boxplots
Combination boxplot
Integrated variance with variance fill type area
Variance fill type - line
Line variance
Forecast boxplots
