On this page
  1. Working with Analytics+

1. Navigating the Analytics+ toolbar

PreviousWorking with Analytics+NextChart toolbar

Last updated 2 months ago

Analytics+ is a one-stop shop for dashboards and storyboards, offering charts, cards, and tables in a single visual platform. A key aspect of Analytics+ is that it is highly customizable. You can tailor the report to the specific needs of the audience.

First things first - to enable the toolbar, after assigning data, hover over the top portion of the visual and click on the arrow icon.

The toolbar will automatically be displayed if you resize the visual to fill the canvas.

The fully loaded toolbar comes with a dedicated ribbon for charts, cards, tables, Gantt charts and the storyboard. We'll take a detailed look at the various moving parts of the Inforiver toolbar and how to navigate the different sections.

Toolbar components

Pivot data

Filter context

Summary table

Storyboard

Performance mode

Charts with high data volume and density can be plotted significantly faster with the performance mode option. Enable the toggle from the toolbar for faster rendering. Please bear in mind that performance mode is supported for select charts.

  • TopN ranking will be turned off in performance mode.

  • Sorting will be set to native sort.

  • Scrollbar will be disabled.

  • Multi charts(different charts in each trellis panel) will be reset to uniform charts in all panels.

Next, we'll explore the charts ribbon.

Re-assign measures and dimensions and apply filters from the data management window. .

The Analytics+ visual is context aware i.e, responsive to external slicers and filters. .

The summary table shows a tabular view of the underlying data in a chart or card. You can add calculated rows and re-order data in the summary table, the changes are instantly reflected in your visual without having to change the dataset. .

Create stunning, interactive dashboards in under a few minutes with the powerful Storyboard. .

Learn more about data management
Learn more about setting up context awareness
Learn more about the summary table
Learn more about Storyboard mode

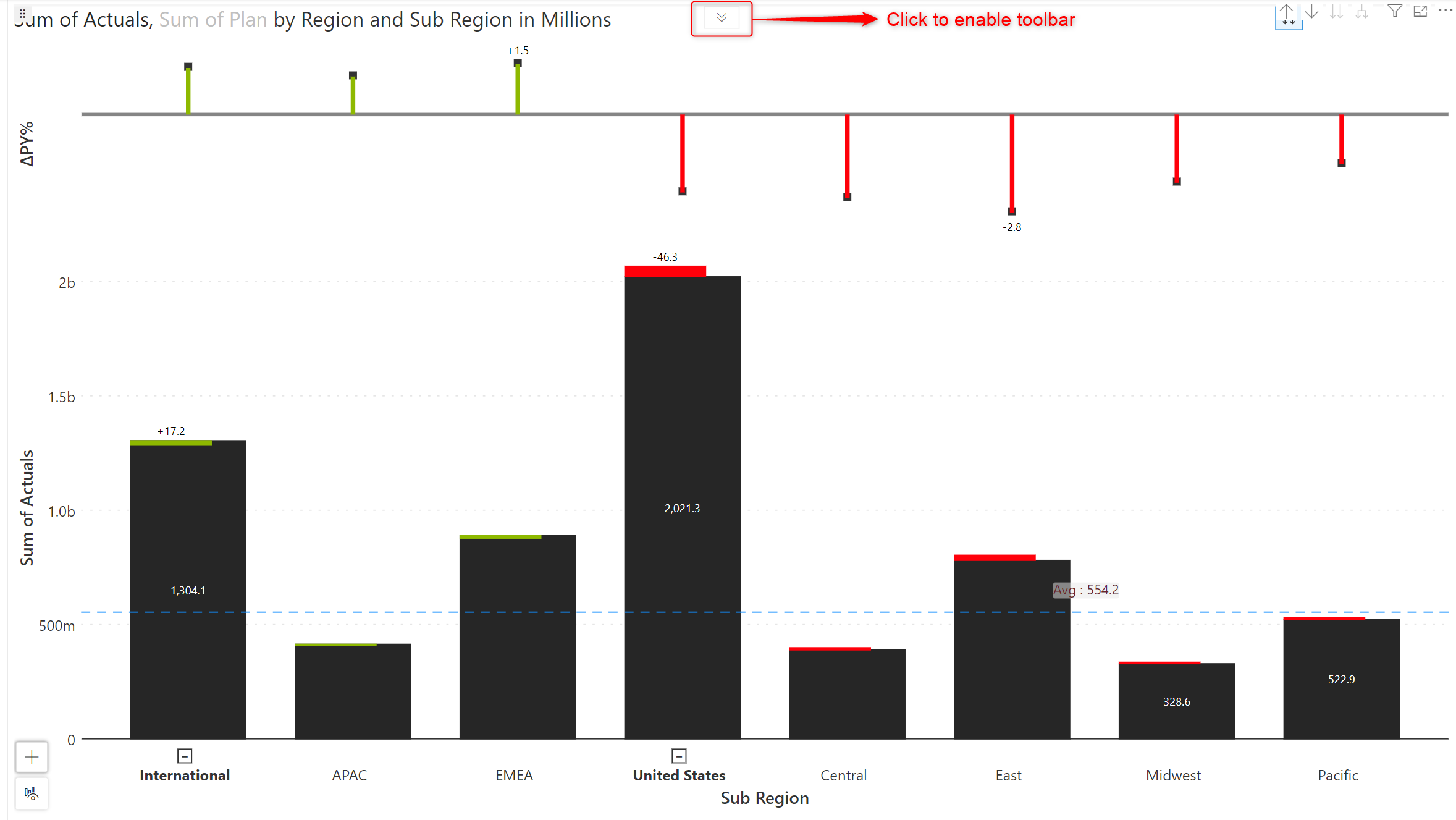

Enabling the toolbar

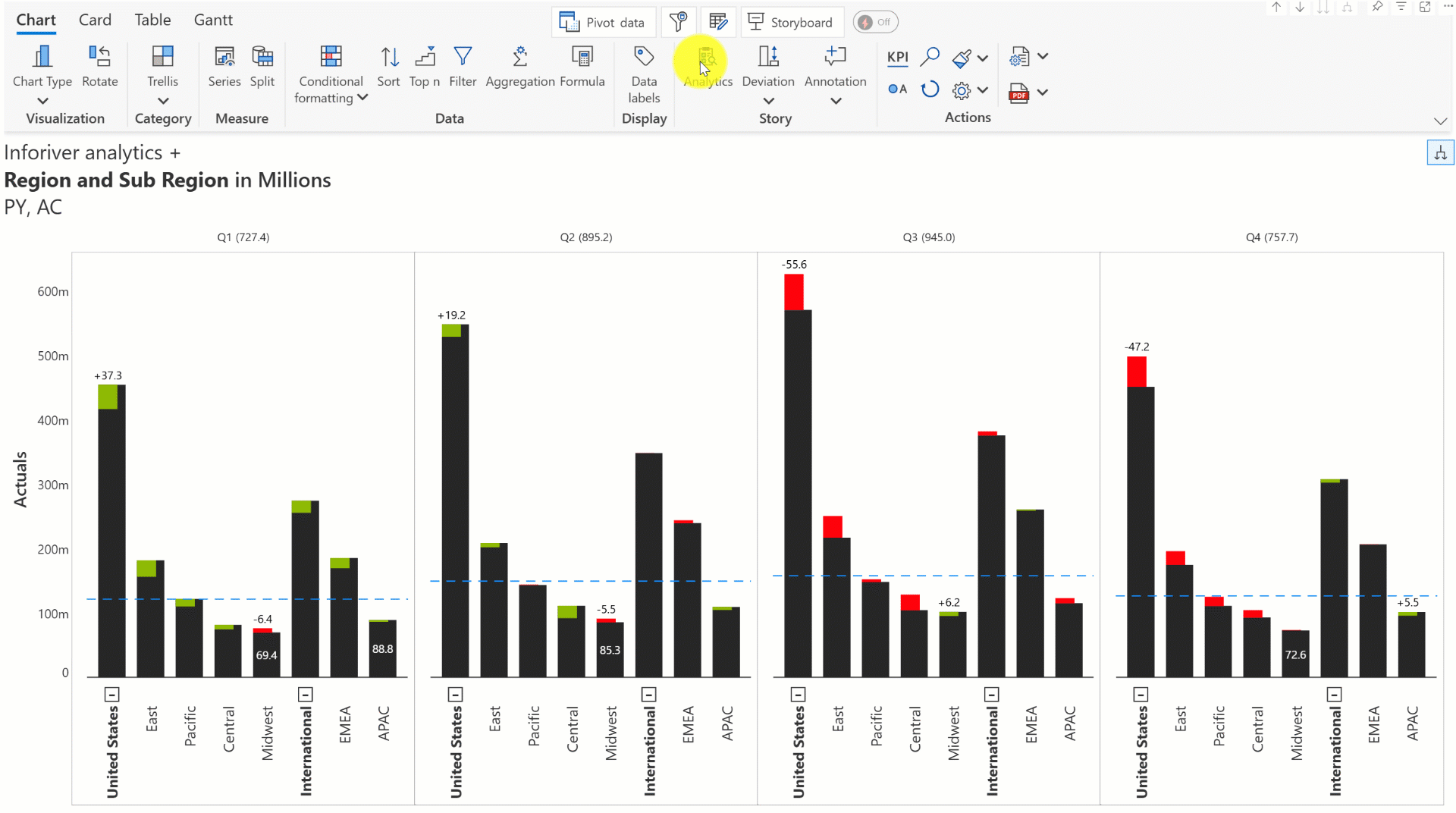

Chart, card and table ribbons
Pivot data in the toolbar

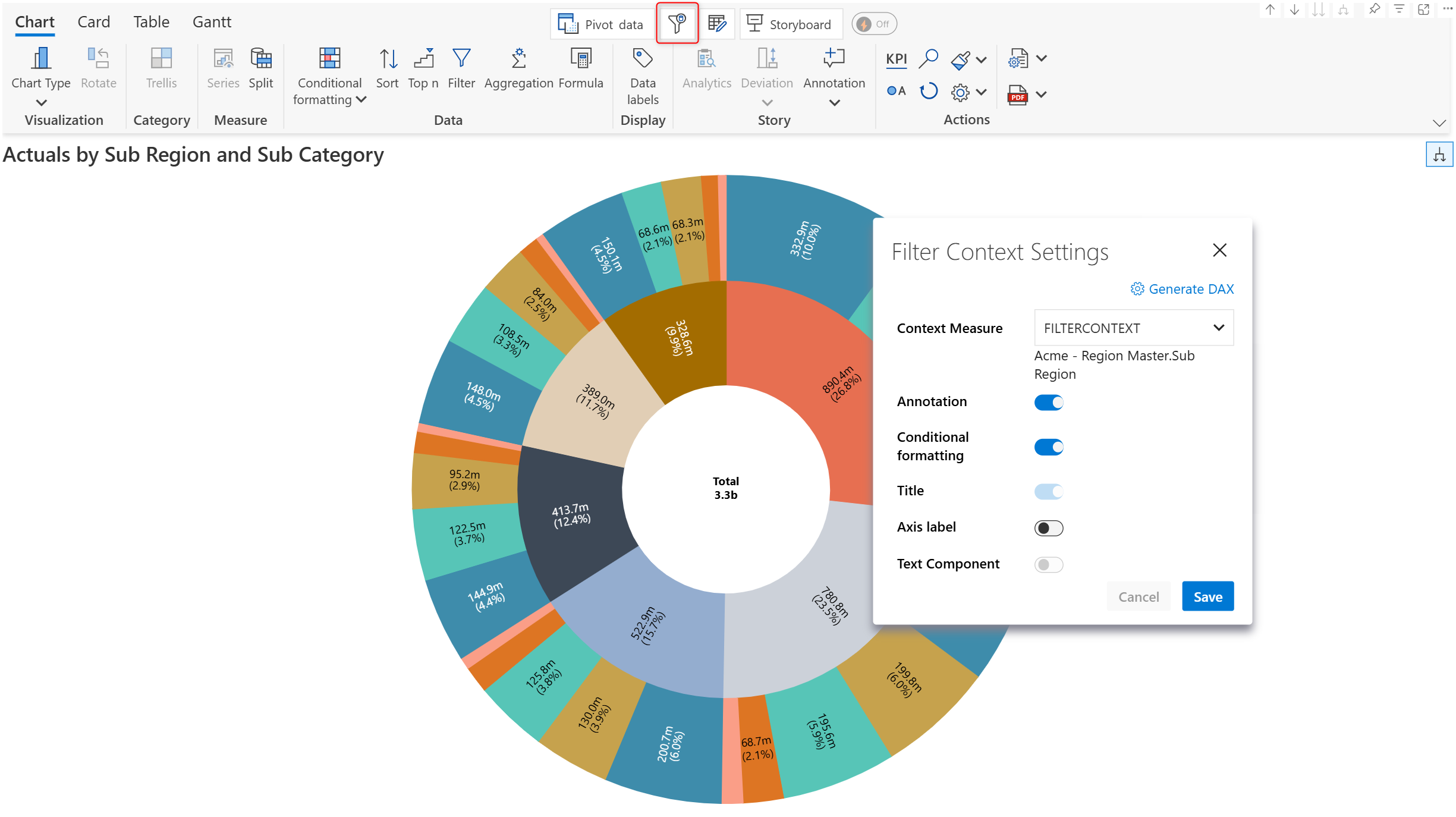

Filter context

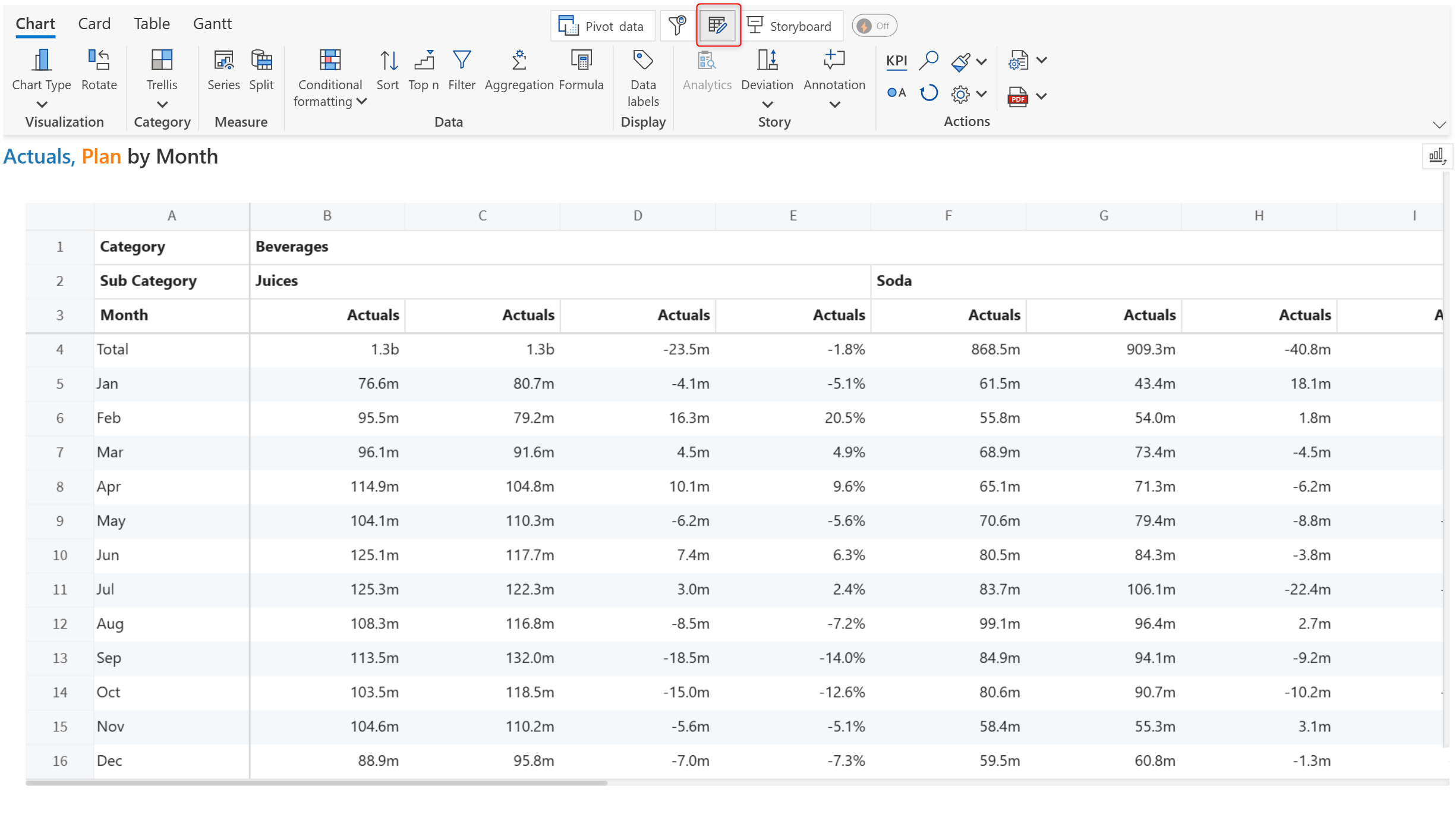

Summary table
Storyboard option

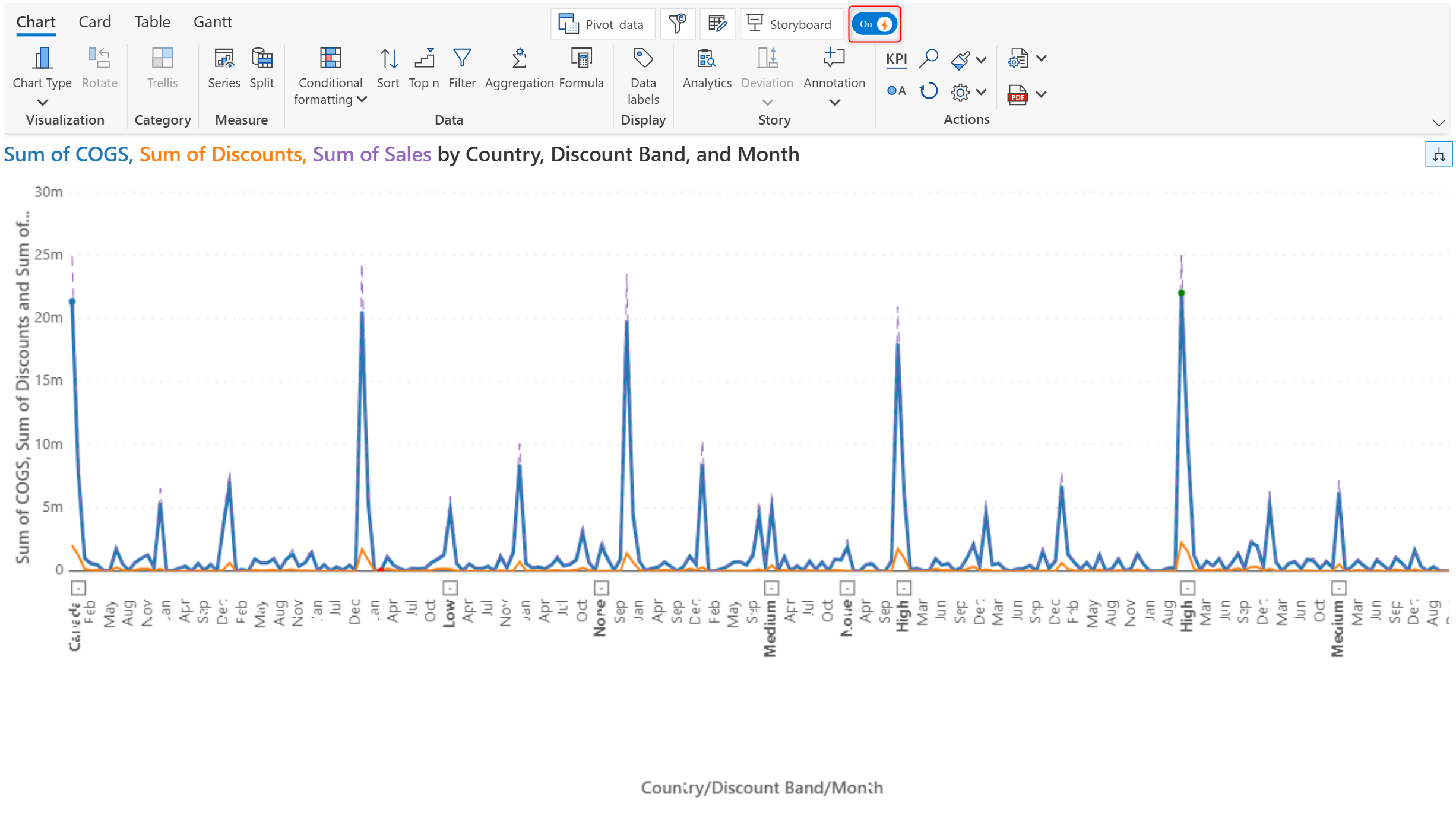

Performance mode
