SETVISIBILITY

SETVISIBILITY can be used to show or hide rows, columns, and measures.

NAME
DESCRIPTION

SETVISIBILITY(ROW_NAME)

Show or hide specific row categories

SETVISIBILITY(COLUMNS)

Show or hide specific columns

SETVISIBILITY(MEASURE_NAME)

Show or hide specific measures

SETVISIBILITY(ROW, COLUMN)

Show or hide a measure for a particular row category

1. SETVISIBILITY(ROW_NAME)

Show or hide specific row categories - passing a value of TRUE will display the row, and passing a value of FALSE will hide it.

Syntax

SETVISIBILITY(ROW_NAME, BOOLEAN_ARG)

Arguments

ROW_NAME - Name of the row category to show or hide.

BOOLEAN_ARG - Set to TRUE to enable the rule. Set to FALSE to disable the rule.

Example

SETVISIBILITY([United States], FALSE) #Hides the United States row category and all child nodes under it

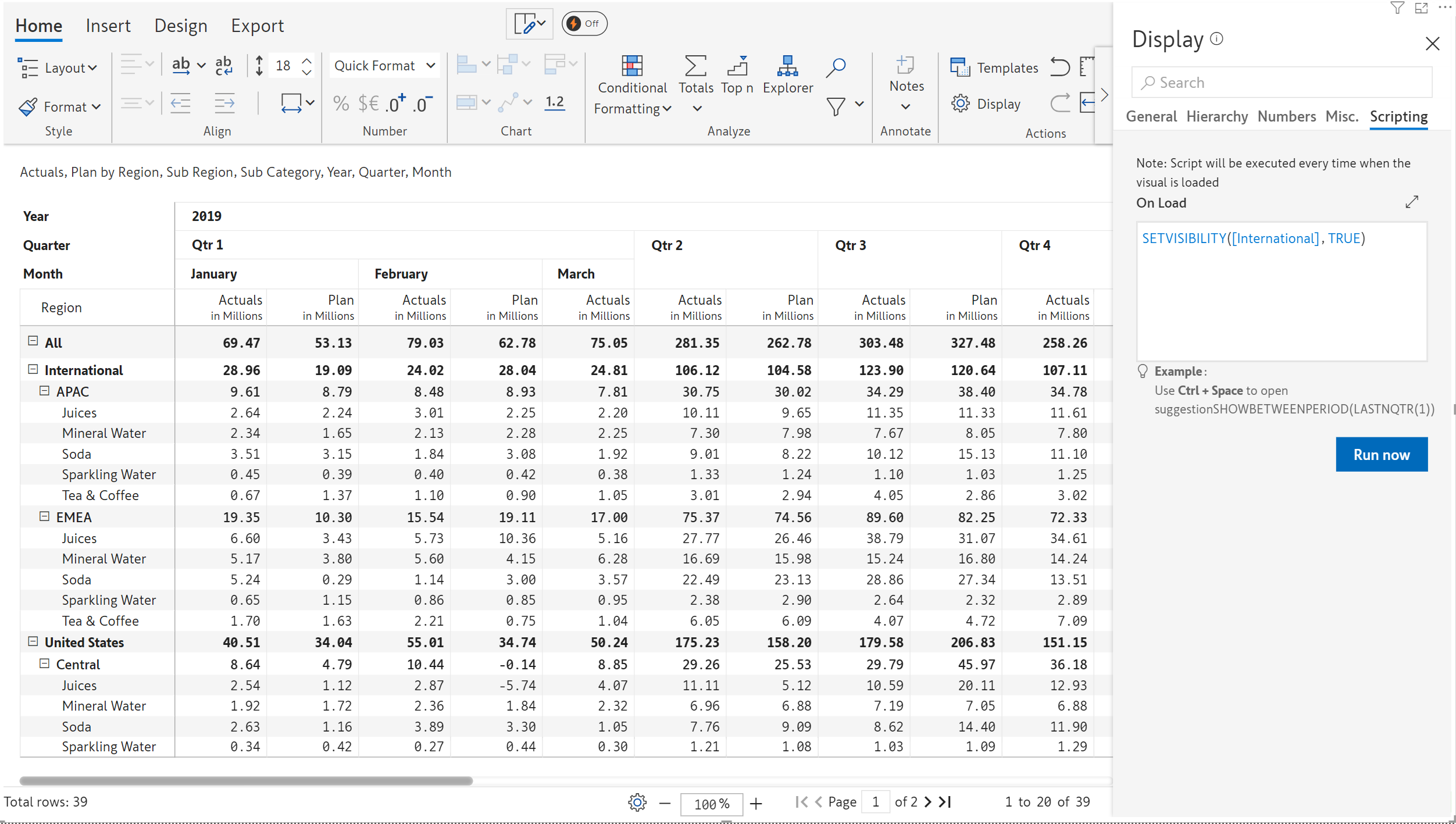

SETVISIBILITY([International], TRUE) #Displays the International row category
SETVISIBILITY([Technology], THIS) #Use with a toggle variable to show or hide the technology category

2. SETVISIBILITY(COLUMNS)

Show or hide specific columns - passing a value of TRUE will display the columns, and passing a value of FALSE will hide it.

Syntax

SETVISIBILITY(COLUMNS.COLUMN_NAME, BOOLEAN_ARG)

Arguments

COLUMN_NAME - The column to be shown or hidden.

BOOLEAN_ARG - Set to TRUE to enable the rule. Set to FALSE to disable the rule.

Example

SETVISIBILITY(COLUMNS.[2019 > Qtr 1 > Actuals, FALSE) #Hides the Actuals measure for 2019, qtr 1

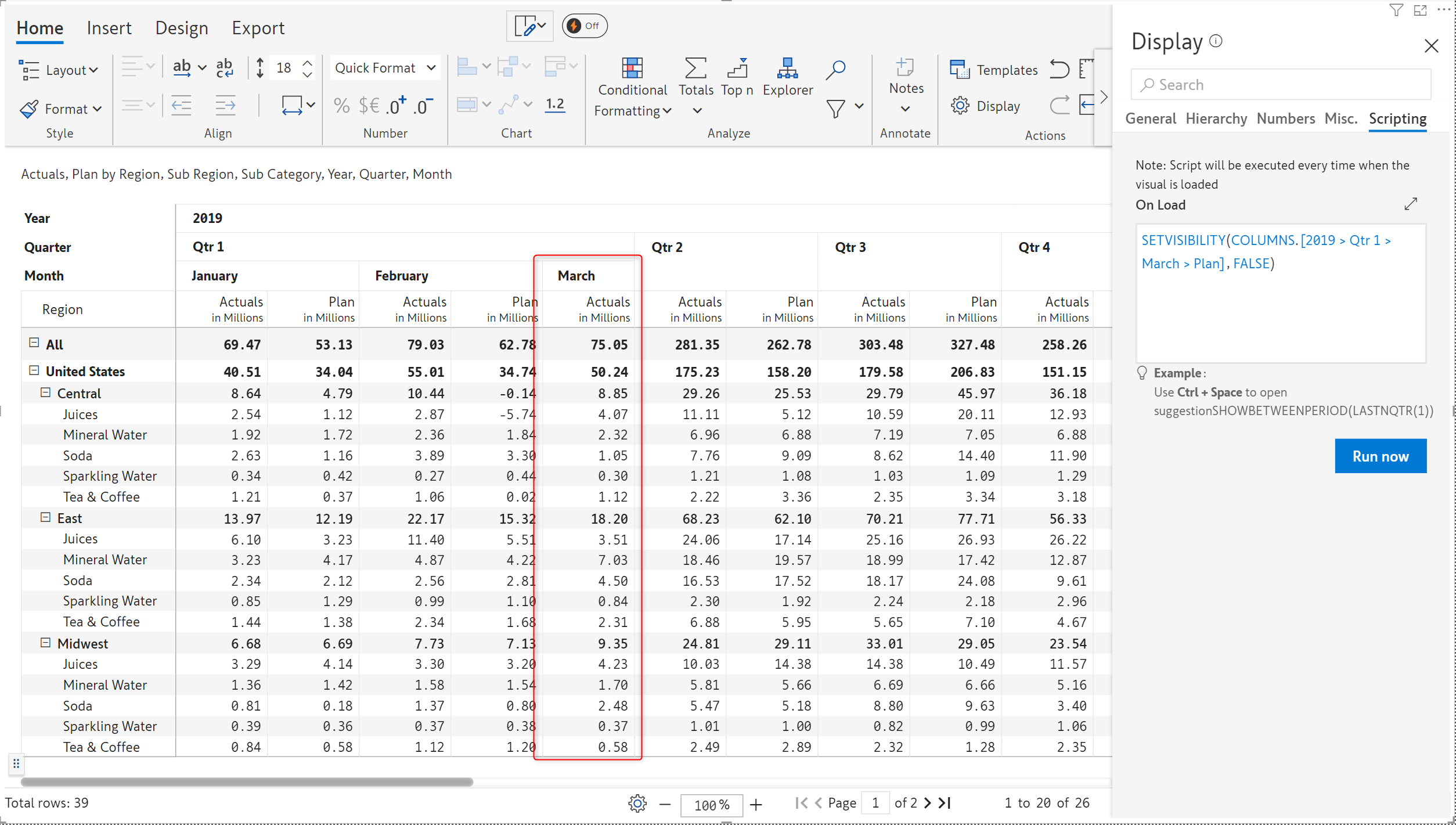

SETVISIBILITY(COLUMNS.[2019 > Qtr 1 > March > Plan, TRUE) #Displays the Plan for 2019, Q1, March
SETVISIBILITY(COLUMNS.[2019 > Qtr 1 > March > Plan,THIS) #Use with a toggle variable to show or hide the Qtr1 Plan

3. SETVISIBILITY(MEASURE)

Show or hide a particular measure - passing a value of TRUE will display the columns, and passing a value of FALSE will hide it.

Syntax

SETVISIBILITY(MEASURE_NAME, BOOLEAN_ARG)

Arguments

MEASURE_NAME - Name of the measure to be hidden.

BOOLEAN_ARG - Set to TRUE to enable the rule. Set to FALSE to disable the rule.

Example

SETVISIBILITY([Plan], FALSE) #Hides the Plan measure
SETVISIBILITY([Actuals], TRUE) #Displays the Actuals measure
SETVISIBILITY([Actuals], THIS) #Use with a toggle variable to show or hide the Actuals measure

4. SETVISIBILITY(ROW, COLUMN)

Show or hide a measure for a particular row category and column. Passing a value of TRUE will display the row category for a particular column and measure. Passing a value of FALSE will hide it.

Syntax

SETVISIBILITY(ROW_NAME, COLUMNS.COLUMN_NAME, BOOLEAN_ARG)

Arguments

ROW_NAME - Name of the row category to show or hide.

COLUMN_NAME - Name of the column to show or hide.

BOOLEAN_ARG - Set to TRUE to enable the rule. Set to FALSE to disable the rule.

Example

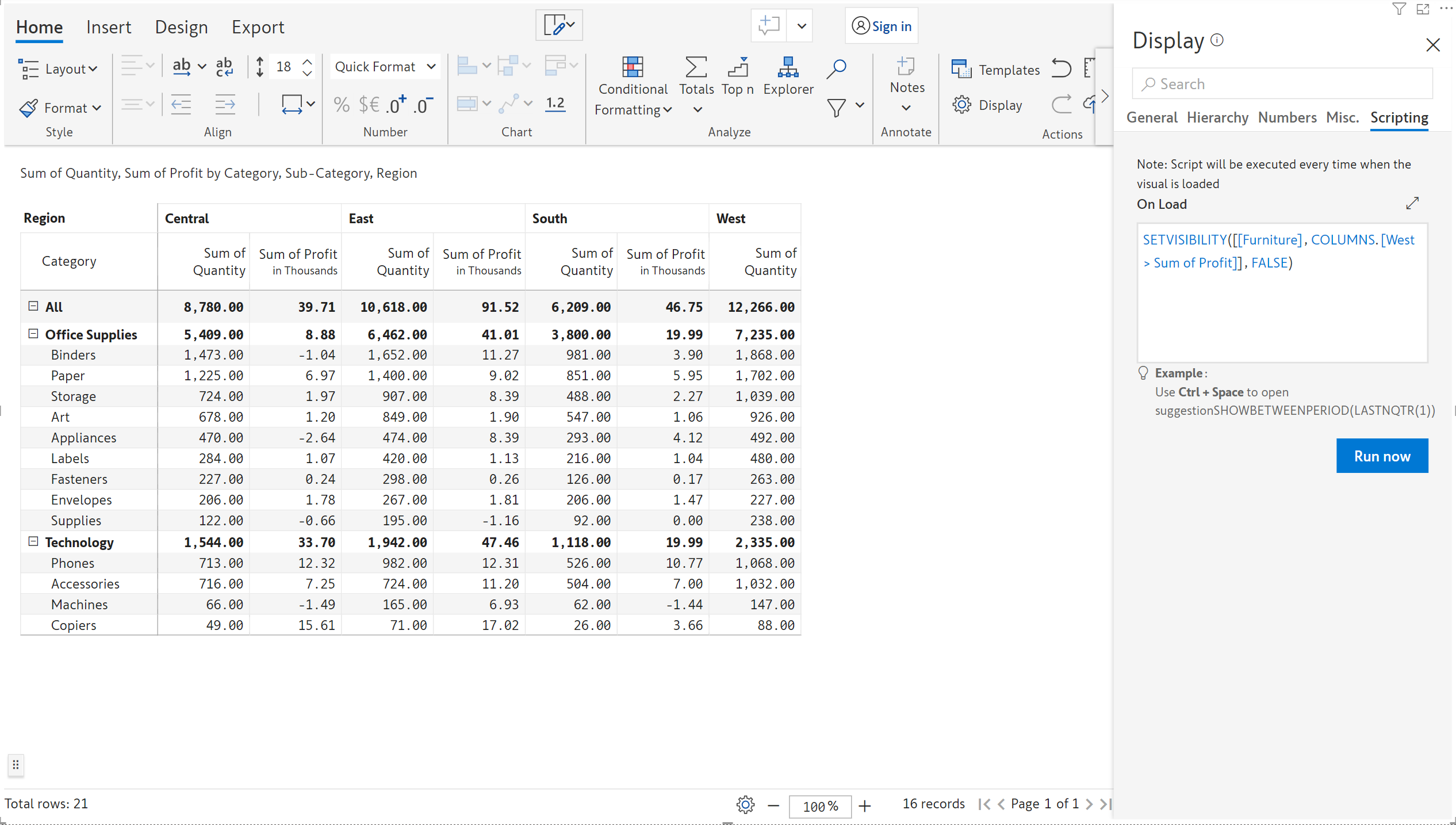

SETVISIBILITY([[Furniture], COLUMNS.[West > Sum of Profit]], FALSE) #Hides the column for a row category
SETVISIBILITY([[Furniture], COLUMNS.[Central > Sum of Quantity]], TRUE) #Shows the column for a row category
SETVISIBILITY([[Furniture], COLUMNS.[Central > Sum of Quantity]], THIS) #Use with a toggle variable to show or hide the Quantity for furniture
